LC/SC/ST/FC/LSH Fiber Optic Pigtail With Good Exchange Ability And Stability
  • name
  • name
  • name
  • name
  • name

LC/SC/ST/FC/LSH Fiber Optic Pigtail With Good Exchange Ability And Stability

MOQ: Min. order: 1000
Price: 0.16USD-19.9USD
Standard Packaging: PP bag and carton box
Delivery Period: 5-10days
Payment Method: D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 100000/month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
Shenzhen，China
Brand Name
Yingda
Certification
ISO CE
Model Number
OM2/OM3/OM4
Product:
Fiber Optic Pigtail
Connector Model:
SC ,ST,FC,LC,etc
Cable Core:
1-12
Jacket Material:
OFNP,PVC.LSZH
Tensile Strength:
≥90 (3.0)≥70 (2.0) 0.9
Jacket Materail:
PVC OR LSZH OR OFNP
Quality:
Telcordia GR-326-Core, IEC Standard
Quality Control:
100% Test Before Shipping
Package:
Plastic Bag
Cores:
4/6/8/12/24/48 Cores
Strength Member:
900um
Form Factors:
Duplex/ Simplex
Fiber Brand:
Corning/YOFC/Fujikura/Sumitomo
Diameter:
0.9MM/2.0MM/3.0MM
FiberMode:
OM1/OM2/PM3/OM4
Single Package Size::
30X20X10 Cm
Single Gross Weight::
0.600 Kg
Product Name:
Fiber Optical Pigtall，fibre Optic Pigtail， Fo Pigtall，fiber Optik Pigtail
Customer Logo::
Yes
Highlight:

LC Fiber Optic Pigtail

,

ST Fiber Optic Pigtail

,

SC Fiber Optic Pigtail

Product Description

Multimode Fiber Optic Pigtail



Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

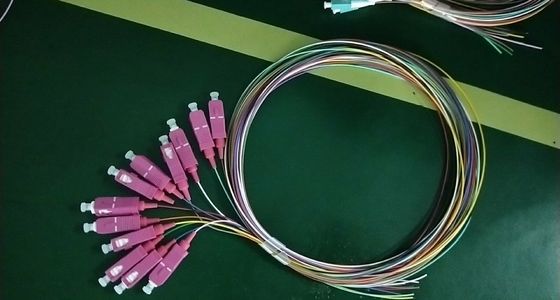

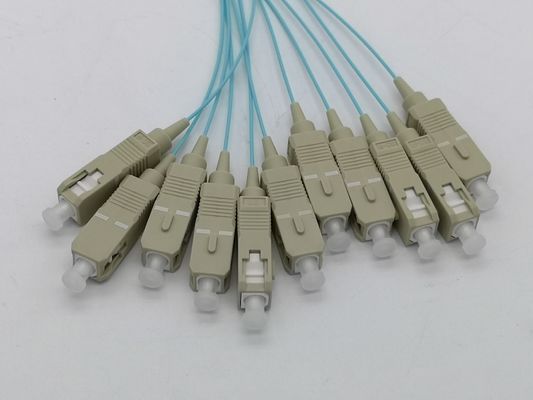

LC/SC/ST/FC/LSH Fiber Optic Pigtail With Good Exchange Ability And Stability 0LC/SC/ST/FC/LSH Fiber Optic Pigtail With Good Exchange Ability And Stability 1

Specification

Connector Type LC/SC/ST/FC/LSH Polish Type UPC
Fiber Mode OM4 Wavelength 850/1550nm
Cable Type Color-coded/Bunch/Ribbon Fiber Grade G.651/Bend Insensitive
Insertion Loss ≤0.3dB Return Loss ≥50dB
Attenuation at 850nm 0.36dB/km Attenuation at 1550nm 0.22dB/km
Minimum Bend Radius 30mm Cable Diameter 0.9/2.0/3.0mm
Type custom Fiber Count 4/6/8/12/24/48 cores
Storage Temperature -45~85°C Operating Temperature -40~75°C



Packing  Delivery:

Delivery: 5-10 working days, depends on quantity.
Packing: PP bag and carton box



Application:

1.Telecom Network
2.LAN and WAN
3.CCAV and cable TV
4.Multimedia
5.Active device termination



Characteristics:

1. Simplex and duplex connector available
2. High precision of mechanical dimensions.

3. Good exchange ability and good durability;
4. Low Insertion Loss, High temperature Stability and Good exchangeability.
5 Fan-out Available, Pigtail Available, Various

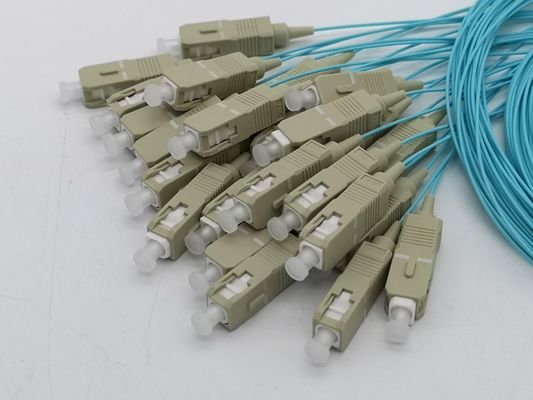

LC/SC/ST/FC/LSH Fiber Optic Pigtail With Good Exchange Ability And Stability 2

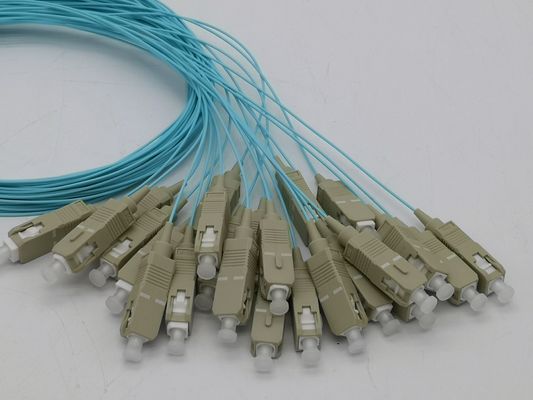

LC/SC/ST/FC/LSH Fiber Optic Pigtail With Good Exchange Ability And Stability 3
