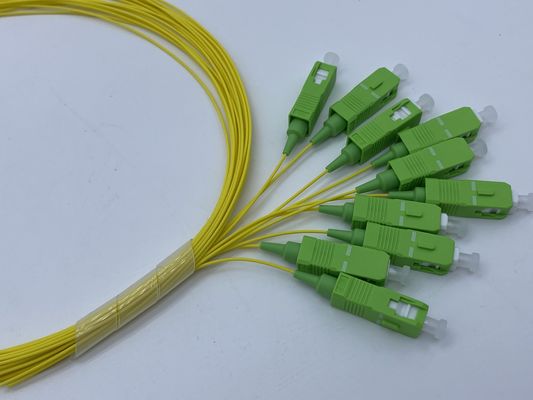

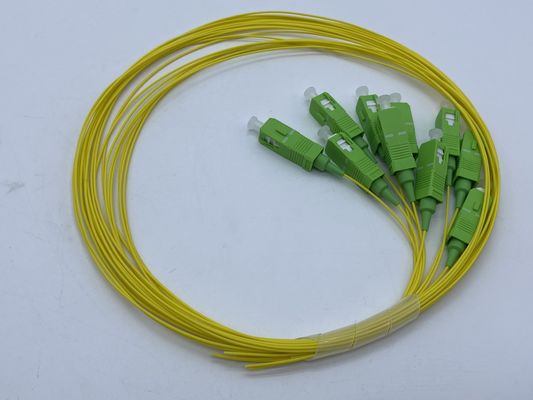

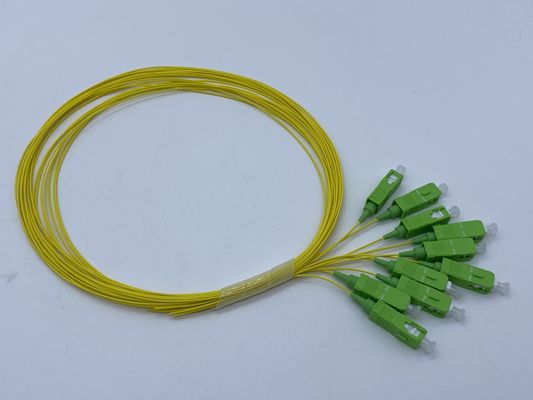

High Effective SC APC Fiber Optic Pigtail 0.9mm For Patch Panel Network
  • name
  • name
  • name

High Effective SC APC Fiber Optic Pigtail 0.9mm For Patch Panel Network

MOQ: 100pcs
Price: 0.16USD-19.9USD
Standard Packaging: 1 pc/ box, 220pcs / carton box
Delivery Period: 7days after payment
Payment Method: Western Union, T/T, L/C
Supply Capacity: 100,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
YDPG-10SA
Connector:
SC/APC Connector
Fiber Count:
10 Cores
Insertion Loss:
<0.3 DB
Fiber Type:
Single Mode
Package:
Plastic Bag / Bister Box
Cable Color:
Blue,pink,purple,orange,yellow,black,red,brown,aqua
Cable Diameter:
900um
Jacket:
LSZH, PVC
Connector Color:
Green
Temperature:
-40~+85°C
Application:
ODF, Patch Panel, Terminal Box, Cabinet, FOSC
Length:
Customized
Product Name:
Fiber Optical Pigtall，fibre Optic Pigtail， Fo Pigtall，fiber Optik Pigtail
Customer Logo::
Yes
Highlight:

High Effective Fiber Optic Pigtail

,

SC APC Fiber Optic Pigtail

,

0.9mm Fiber Optic Pigtail

Product Description

High Effective SC APC Fiber Optic Pigtail 0.9mm for Patch Panel Network



SC fiber optic pigtails is only with SC connector at one side of the fiber optic cables, the other end is bulk head for fusion splicing.It is widely used in ODF, splice closure, splice tray, cable cross cabinet or fiber patch panels.



Fiber Optic pigtail has connector at one end, the other end is fiber optic cable which be cut off.

Then it connect by splice with other cable core. It is widely used in fiber optic terminal box, ODF rack ,

cabinet to connect with fiber optic media converter/transceivers(also use coupler,patch cord,etc.)



Multimode pigtail is orange, wavelength is 850nm, the transmission distance is 500m, for short distance

interconnects. SMF (single mode fiber ) is yellow, the wavelength:1310nm and 1550nm,the transmission

distance are respectively 10km and 40km.

High Effective SC APC Fiber Optic Pigtail 0.9mm For Patch Panel Network 0





Optical Characteristics



Cable diameter φ0.9mm, φ2.0mm, φ3.0mm
Insertion loss ≤0.2dB
Return loss PC≥40dB,UPC≥50dB,APC≥60dB
Interchange ability test ≤0.2dB
Mating times >1000 times
Repeat ability ≤0.1dB
Vibration test ≤0.1dB(10-60Hz,1.5mm Full amplitude)
Tensile strength: 0~15Kg
temperature cycling test ≤0.2dB (-40℃~+85℃,after 5times recycle)
Low temperature test ≤0.2dB(-40℃,last 100 hours)
High temperature test ≤0.2dB (+85℃,last 100 hours)
Tensile test ≤0.1dB(0-15Hg tensile,φ0.9mm fiber exception)
Temperature test ≤0.2dB(+25℃~+65℃, relative humidity 93%, after 100hours)
Fiber count 4 core 6 core 8 core, 10 core, 12 core.
Can use connectors

FC / PC, FC / APC, SC / PC, SC / APC, ST / PC, etc







SC pigtails Application

  • FTTX (FTTH, FTTC, FTTB, FTTD, FTTA ,FTTR, etc)
  • Fiber optic data transmission
  • Local network, wide area network, cable TV
  • Fiber optic data transmission testing equipment and active device terminals



Packing:

High Effective SC APC Fiber Optic Pigtail 0.9mm For Patch Panel Network 1





Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

D
Danie Maritz
South Africa Aug 2.2024
Helpful (4)
best price and quality, excellent service
Review Image
R
R*K
Venezuela Sep 26.2022
Helpful (24)
All connectors insert loss < 0.3db, and the quality is better than other suppliers. I recommend this supplier to everyone, very professional!
Review Image
C
C*d
Ecuador Feb 26.2021
Helpful (3)
Excellent quality, as always! Fantastic product and service!
Review Image
Tags:

waterproof pigtail,

optical fiber pigtail,

ribbon pigtail
