Fiber Optic Pigtail
Created with Pixso. Fiber Pigtails LC Multimode Simplex 2.0mm Diameter LSZH Tight Buffer Orange

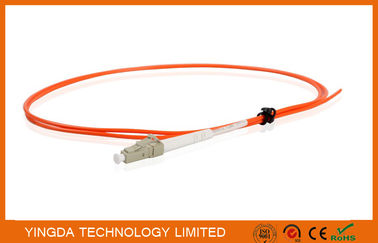

Fiber Pigtails LC Multimode Simplex 2.0mm Diameter LSZH Tight Buffer Orange

Brand Name: YINGDA
Model Number: FPG-LC-OM2-50-1.5-O
MOQ: 100 PCS
Price: Negotiable
Detail Information
Place of Origin:
china
Certification:
ISO
Fiber Type:
MM Multimode 50/125
Fiber Count:
Simplex
Cable Type:
Fiber Optic
Cable Diameter:
2 Mm
Cable Length:
1.5 Meter
Connector Boot:
Beige, Green Or Blue
Polish Mode:
PC
Connector:
LC
Cable Color:
Orange
OEM:
OK
Ferrule:
Ceramic
Product Name:
Fiber Optical Pigtall,fibre Optic Pigtail, Fo Pigtall,fiber Optik Pigtail
Customer Logo::
Yes
Packaging Details:
1pc in a plastic bag, customer logo or label design ok
Highlight:

optical fiber pigtail

,

waterproof pigtail

Product Description

Fiber Pigtails LC Multimode Simplex 2.0mm Diameter LSZH Tight Buffer Orange

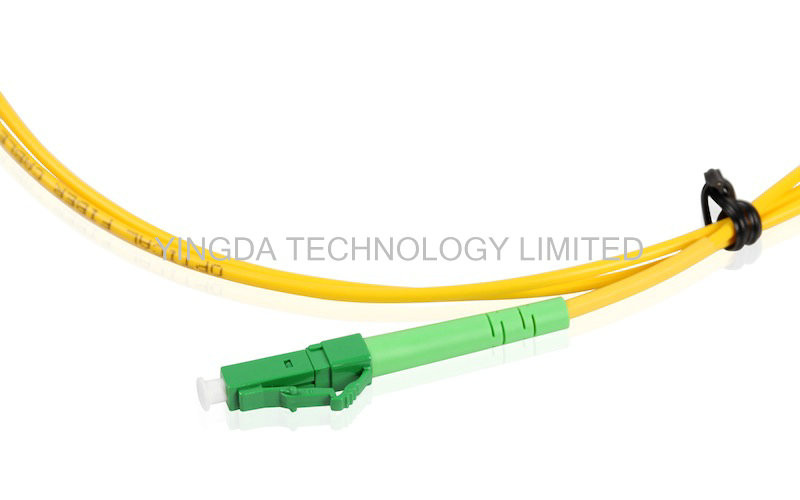

LC Fiber Optic Pigtail are a small form factor fiber optic Pigtail. Lucent Technologies first developed

 the LC Pigtail for TelCo environment uses. Hence, LC stands for Lucent Pigtails. LC fiber Pigtails

have been standardized as FOCIS 10 (Fiber Optic Pigtail Intermate-ability Standards) in EIA/TIA-604-10.

LC Fiber Optic Pigtail use a 1.25 mm ferrule, half the dimension of the ST ferrule or a regular ceramic

ferrule Pigtail. LC gives excellent performance and is greatly preferred for single mode transmission.



The LC Unibody is fully compatible with the original LC family of single-mode and multimode Pigtails,

adapters and associated components, manufactured under a worldwide license from OFS Fitel. The

Unibody features a compact, pull-proof design with RJ-45 style interface, and features a one-piece

molded housing with internal strength member, for significantly improved 90 side-pull performance

under Telcordia GR-326-CORE testing. It is manufactured using a ruggedized material that results

in a latch trigger up to four times stronger than average.





Features

  • Insertion Loss <0.3dB
  • High Return Loss
  • Good Repeat ability
  • Good Exchange ability
  • High Temperature Stability
  • Comply with YD/T 1272.4-2007 specification
  • 8 Degree Angled physical contact polishing (APC)



Application

  • CATV network
  • Optical fiber communication systems
  • Optical fiber data transmission
  • Building network access
  • Cabling system, ODF
  • FTTX networks



Specification



Item

Single mode (nomomodo)

Multimode (Multimodo)

Wavelength

1310&1550nm

850&1300nm

Fiber type

9/125um

62.5/125um,50/125um,50/125um

OM3,50/125um OM4

Connector type

SC ST FC LC MU MTRJ E2000 DIN D4 ESCON

Insertion loss on average

≤0.3dB

≤0.3dB

Max. insertion loss

≤0.5dB

≤0.5dB

Return loss

UPC≥55dB;APC≥65dB

≥20dB

Operating temperature

-40~+75℃

Storage temperature

-40~+85℃



Ordering Information


LC / PC MM 50/125 SIMPLEX 0.9mm –1M LSZH

   ①  ②      ③              ④         ⑤          ⑥    ⑦



① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
