| Brand Name: | YINGDA |
| Model Number: | FPG-FCA-02-08 |
| MOQ: | 50 pcs |
| Price: | negotiable |
| Delivery Time: | 7days after payment |
| Payment Terms: | Western Union, T/T |

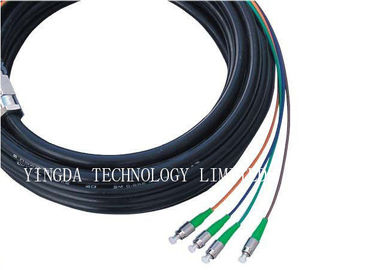

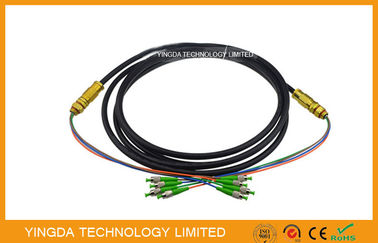

FC / APC 4 Cores Optical Fiber Pigtails Patch Cord Cable Waterproof Black, Length Customized
Connector type: FC,ST,SC,LC,E2000,MTRJ,MPO,SMA905,SMA906,MU,FDDI,DIN,D4,
ESCON,VF45,F3000, LX.5
Cable capacity: 1/ 2 / 4 / 6 / 8/ 12 / 24 cores optional
Waterproof pigtails is to connect the cable and optical receiver,suitable for all kinds of connectors.
It use one or more simplex cable to twist around a center strengthen member, longitudinally wrap
aluminum-plastic composite belt, outer extrusion sheath. Wrap water-blocking tape around, good
water-blocking performance,suitable for wild harsh environment,strength with high strength steel
wire,high tensile strength, easy installation, simple and reliable,good grounding performance,
all kinds of connectors available, connecting cable and optical receiver.
Application
Waterproof cable specification
|
Parameters |
|||||||||
|
Fiber count |
Cable diameter |
Cable weight |
Tensile strength |
Compression |
Bending radius |
Storage temperature |
|||
|
(MM) |
(KG) |
Short term |
Long term |
Short term |
Long term |
Short term |
Long term |
(℃) |
|
|
2 |
10.5 |
155.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
4 |
10.5 |
155.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
6 |
10.5 |
175.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
12 |
12.5 |
225.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
Fiber Optical Specification
|
Item |
Value |
|
Insertion loss |
<0.2dB |
|
Return loss |
>60dB |
|
Mating times |
>1000 |
|
Interchangeability |
Attenuation<0.2dB |
|
Temperature |
+40+75℃ |
|
Tensile strength |
>100N |
|
|
