| Brand Name: | YINGDA |
| Model Number: | YDPG-SCA-3001W |
| MOQ: | 500 pcs |
| Price: | negotiable |
| Delivery Time: | 7days after payment |
| Payment Terms: | Western Union, T/T |

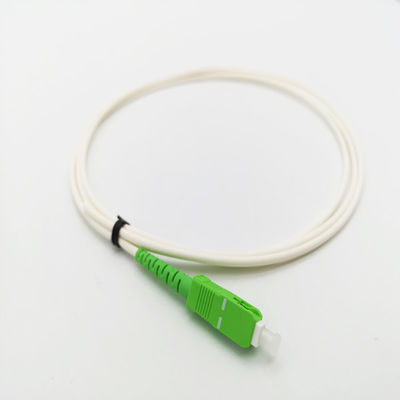

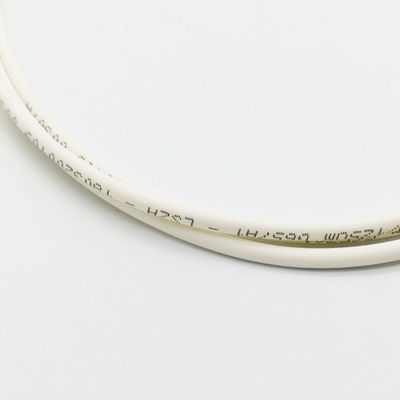

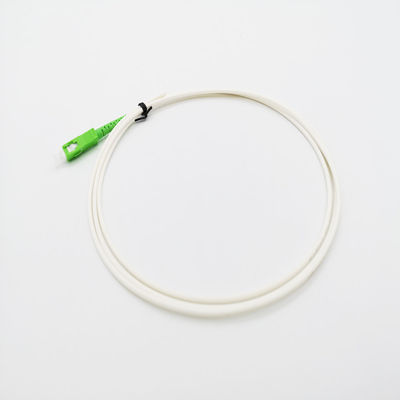

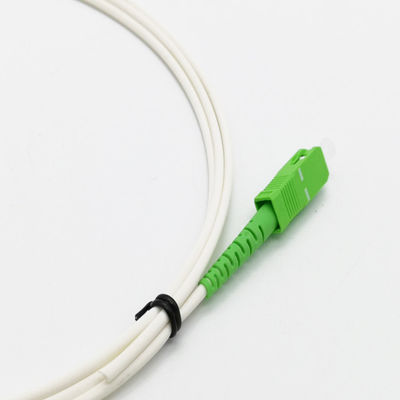

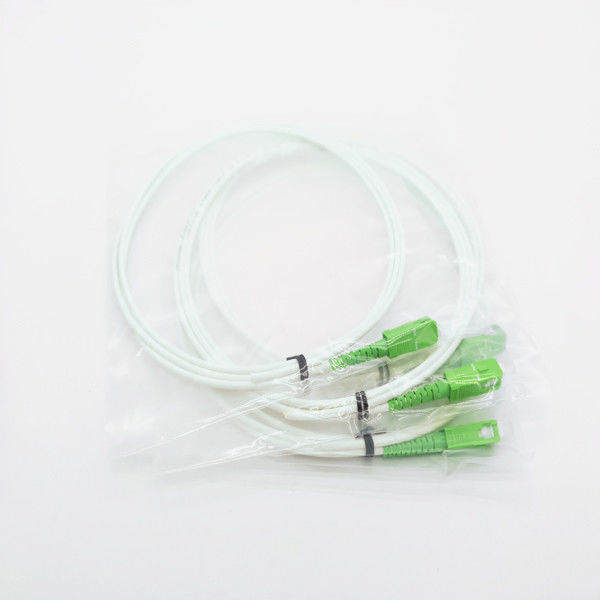

Fiber Optic Cable Pigtail SC APC Single Mode Simplex 3mm White G657A2 LSZH
Fiber Optic pigtail has connector at one end, the other end is fiber optic cable which be cut off.
Then it connect by splice with other cable core. It is widely used in fiber optic terminal box, ODF
rack , cabinet to connect with fiber optic media converter/transceivers(use coupler,patch cord too)
Features
Application
1.Technical Data
|
NO. |
Item |
Unit |
Single Mode |
Multi-Mode |
||
|
1 |
Insertion Loss |
dB |
≤0.2 |
≤0.3 |
≤0.3 |
|
|
2 |
Return Loss |
dB |
≥50/UPC |
≥45/PC |
≥65/APC |
≥35/PC |
|
3 |
Repeatability |
dB |
0.1 |
|||
|
4 |
Working Times |
Times |
≥1000 |
|||
|
5 |
Operating Temperature |
°C |
-40-85 |
|||
|
6 |
Optical Cable Diameter |
mm |
Φ0.9 |
Φ2.0 |
Φ3.0 |
|
2. Polish Data
|
Item |
PC Polishing |
APC Polishing |
||
|
Ferrule Diameter(mm) |
2.5 |
1.25 |
2.5 |
1.25 |
|
Radius of Cury(mm) |
10 ~25 |
7~25 |
5~15 |
|
|
Fiber Height(nm) |
-100~50 |
±50 |
||
|
Apex Offset(um) |
±50 |
±50 |
||
|
|
