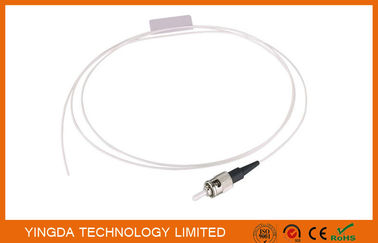

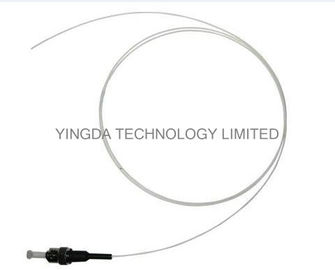

ST UPC SM SX Pigtail , Optic Fiber Pigtails ST Singlemode Simplex White Cable
  • name
  • name
  • name

ST UPC SM SX Pigtail , Optic Fiber Pigtails ST Singlemode Simplex White Cable

MOQ: 100 PCS
Price: 0.16USD-19.9USD
Standard Packaging: 1pc in a plastic bag, customer logo or label design ok
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
FPG-ST-OS1-0.9-2-W
Fiber Type:
OS1 Single Mode 9/125
Fiber Count:
Simplex
Cable Type:
Fiber Optic
Cable Diameter:
0.9 Mm
Cable Length:
2 Mtrs
Connector Boot:
Black
Polish Mode:
UPC
Connector:
ST
Cable Color:
White
OEM:
OK
Ferrule:
Ceramic
Product Name:
Fiber Optical Pigtall，fibre Optic Pigtail， Fo Pigtall，fiber Optik Pigtail
Customer Logo::
Yes
Highlight:

ST UPC Optic Fiber Pigtails

,

Singlemode Simplex Optic Fiber Pigtails

Product Description

ST UPC SM SX Pigtail, Optic Fiber Pigtails ST Singlemode Simplex White Cable



ST fiber Pigtail is still the most popular Pigtail, it has a bayonet mount and a long cylindrical 2.5 mm ceramic (usually) or polymer ferrule to hold the fiber. Clearly speaking, The ST fiber Pigtail (Straight Tip) is a fiber Pigtail which uses a plug and socket which is locked in place with a half-twist bayonet lock. The ST Pigtail was the first defactor standard for fiber optic cabling and ST fiber Pigtail is one of the leading fiber Pigtails.

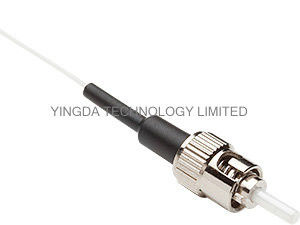

The ST Pigtail has a bayonet-style housing and a long spring-loaded ferrule hold the fiber.



They are available in both multimode or singlemode versions. Horizontally mounted simplex and duplex adapters are available with metal or plastic housing, with a choice of phosphor bronze or zirconia split sleeve.



Application

  • CATV,FTTX
  • Optical fiber communication systems
  • Cabling system, ODF
  • Optical fiber data transmission
  • Building network access



Fiber patch cord features

  1. Insertion Loss low
  2. High Return Loss
  3. Good Repeat ability
  4. Good Exchange ability
  5. High Temperature Stability
  6. Comply with YD/T 1272.4-2007 specification


Specification



Connector type

LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC.

MU/AP Duplex MTRJ/Female, MTRJ/Male

Fiber Type

9/125um SMF-28 or equivalent (Single mode) OS1,

 (Multi-mode) 50/125um OM1, 62.5/125um OM2

& 50/125um, 10G OM3, OM4

Cable Type

Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm,

Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm,

Φ0.6mm buffered fiber

PVC or LSZH

Polishing Manner

UPC,SPC,APC (8°& 6°)

Insertion Loss

≤ 0.1dB (For Single mode Master);

 ≤ 0.25dB (For Single mode Standard) ;

≤ 0.25dB (For Multi-mode) ;

Tested by JDS RM 3750

Return Loss

(For Single mode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeat ability

±0.1dB

Operating Temperature

-40°C to 85°C

Geometry Requirement

(For Single mode)

Ferrule End face Radius:

 7mm ≤ R ≤ 12mm (For APC);

10mm ≤ R ≤ 25mm (For Standard);

Apex Offset ≤ 30 μm (For Master);

Apex Offset ≤ 50 μm (For Standard);

Undercut -50nm ≤ U ≤ 50nm;

Tested by DORC ZX-1





Ordering Information


ST / PC MM 50/125 SIMPLEX 0.9mm –1M LSZH

   ①  ②      ③              ④         ⑤          ⑥    ⑦



① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um),

OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH





We also offers the epoxy-free ST XPFit Pigtail for quick field termination. The ST is one of the older generations of Pigtail, but is still widely used for multimode networks, including LANs for buildings and campuses, welcome inquiry.



ST UPC SM SX Pigtail , Optic Fiber Pigtails ST Singlemode Simplex White Cable 0ST UPC SM SX Pigtail , Optic Fiber Pigtails ST Singlemode Simplex White Cable 1
