| Brand Name: | YINGDA |
| Model Number: | FPC-SC-OM3-09-2-A |
| MOQ: | 500 pcs |
| Price: | negotiable |
| Delivery Time: | 7days after payment |
| Payment Terms: | Western Union, T/T |

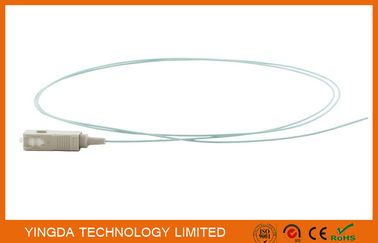

Fiber Optic Pigtail SC OM3 10Gigabit Aqua 50/125um 2 Meter LSZH G657A1 Mulitmode Fiber 0.9mm
SC is short for square card, it can plug directly,easy to use, but also easy to drop out. SC Fiber Optic
Pigtail is a component installed in a fiber optic transmission system that reduce the power in the optical
signal. It is often used to limit the optical power received by the photo-detector to within the limits of the
optical receiver. Optic fixed type adapter (female to female) Pigtail can be selected in need of the project.
It is used in the fiber transmission system .
Application
Features
Specification
|
Connector type |
LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC. MU/AP Duplex MTRJ/Female, MTRJ/Male |
|
Fiber Type |
9/125um SMF-28 or equivalent (Single mode) OS1, (Multi-mode) 50/125um OM1, 62.5/125um OM2 & 50/125um, 10G OM3, OM4 |
|
Cable Type |
Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC (8°& 6°) |
|
Insertion Loss |
≤ 0.1dB (For Single mode Master) ≤ 0.25dB (For Single mode Standard) ≤ 0.25dB (For Multi-mode) Tested by JDS RM 3750 |
|
Return Loss (For Single mode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
|
Repeat ability |
±0.1dB |
|
Operating Temperature |
-40°C to 85°C |
|
Geometry Requirement (For Single mode) |
Ferrule End face Radius 7mm ≤ R ≤ 12mm (For APC); 10mm ≤ R ≤ 25mm (For Standard); Apex Offset ≤ 30 μm (For Master); Apex Offset ≤ 50 μm (For Standard); Undercut -50nm ≤ U ≤ 50nm; Tested by DORC ZX-1 |
Ordering Information
SC / PC OM3 50125 SIMPLEX 0.9mm –1M LSZH
① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: SC
② Ferrule End-face: PC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um),
OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
|
|
| Brand Name: | YINGDA |
| Model Number: | FPC-SC-OM3-09-2-A |
| MOQ: | 500 pcs |
| Price: | negotiable |
| Packaging Details: | 1 pc/ bag, 1500pcs / carton box |
| Payment Terms: | Western Union, T/T |
Fiber Optic Pigtail SC OM3 10Gigabit Aqua 50/125um 2 Meter LSZH G657A1 Mulitmode Fiber 0.9mm
SC is short for square card, it can plug directly,easy to use, but also easy to drop out. SC Fiber Optic
Pigtail is a component installed in a fiber optic transmission system that reduce the power in the optical
signal. It is often used to limit the optical power received by the photo-detector to within the limits of the
optical receiver. Optic fixed type adapter (female to female) Pigtail can be selected in need of the project.
It is used in the fiber transmission system .
Application
Features
Specification
|
Connector type |
LC,SC,ST,FC.MU,MPO, SC/APC,FC/APC,LC/APC. MU/AP Duplex MTRJ/Female, MTRJ/Male |
|
Fiber Type |
9/125um SMF-28 or equivalent (Single mode) OS1, (Multi-mode) 50/125um OM1, 62.5/125um OM2 & 50/125um, 10G OM3, OM4 |
|
Cable Type |
Simplex, Duplex (Zip cord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC (8°& 6°) |
|
Insertion Loss |
≤ 0.1dB (For Single mode Master) ≤ 0.25dB (For Single mode Standard) ≤ 0.25dB (For Multi-mode) Tested by JDS RM 3750 |
|
Return Loss (For Single mode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
|
Repeat ability |
±0.1dB |
|
Operating Temperature |
-40°C to 85°C |
|
Geometry Requirement (For Single mode) |
Ferrule End face Radius 7mm ≤ R ≤ 12mm (For APC); 10mm ≤ R ≤ 25mm (For Standard); Apex Offset ≤ 30 μm (For Master); Apex Offset ≤ 50 μm (For Standard); Undercut -50nm ≤ U ≤ 50nm; Tested by DORC ZX-1 |
Ordering Information
SC / PC OM3 50125 SIMPLEX 0.9mm –1M LSZH
① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: SC
② Ferrule End-face: PC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um),
OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
