SC Pigtails PC Simplex Single Mode 9/125um 0.9mm 2M Yellow , SC Optical Pigtail

Place of Origin china
Brand Name YINGDA
Certification ISO SGS ROHS
Model Number FPC-SC-OS1-09-01-Y
Minimum Order Quantity 500 pcs
Price negotiable
Packaging Details 1 pc/ bag, 1500pcs / carton box
Delivery Time 7days after payment
Payment Terms Western Union, T/T
Supply Ability 200,000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector SC UPC Fiber Count Simplex
Insertion Loss < 0.2 DB Fiber Type 9/125 Um G652D
Package Plastic Bag Cable Diameter 0.9mm,2.0MM,1.6MM,1.8MM,3.0MM
Jacket LSZH, Pvc Connector Color White, Yellow
Temperature -40~+85°C Customer Logo Yes
Wavelength 1310nm, 1550nm
High Light

waterproof pigtail

,

ribbon pigtail

Leave a Message
Product Description

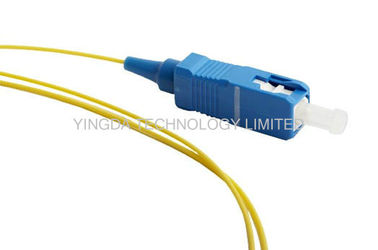

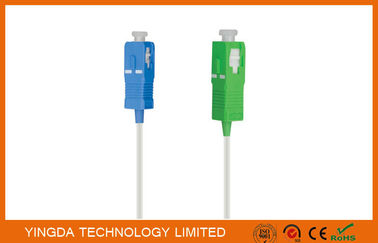

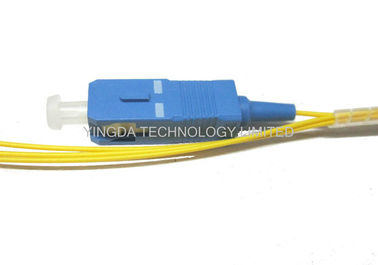

Pigtails SC PC Simplex Single Mode 9/125um 0.9mm 2M Yellow, SC Optical Pigtail





SC/PC - square card type

SC connector can plug directly,easy to use, but also easy to drop out.



SC Fiber Optic Pigtail is a component installed in a fiber optic transmission system that reduce the power in

the optical signal. It is often used to limit the optical power received by the photo-detector to within the limits

of the optical receiver. Optic fixed type adapter (female to female) Pigtail can be selected in need of the project.

It is used in the fiber transmission system .





Features

  • Low Insertion Loss
  • High Return Loss
  • Good Exchange ability
  • Good Repeat ability
  • High Temperature Stability
  • 8 Degree Angled physical contact polishing (APC)
  • Comply with YD/T 1272.4-2007 specification



Application

  1. CATV network
  2. Optical fiber communication systems
  3. Optical fiber data transmission
  4. Building network access
  5. Cabling system, ODF
  6. FTTX networks



Specification



Item

Single mode (nomomodo)

Multimode (Multimodo)

Wavelength

1310&1550nm

850&1300nm

Fiber type

9/125um

62.5/125um,50/125um,50/125um

OM3,50/125um OM4

Connector type

SC ST FC LC MU MTRJ E2000 DIN D4 ESCON

Insertion loss on average

≤0.3dB

≤0.3dB

Max. insertion loss

≤0.5dB

≤0.5dB

Return loss

UPC≥55dB;APC≥65dB

≥20dB

Operating temperature

-40~+75℃

Storage temperature

-40~+85℃





Ordering Information


LC / PC SM 9/125 SIMPLEX 0.9mm –1M LSZH

 ①   ②      ③                ④         ⑤         ⑥   ⑦



① Connector type: SC
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
