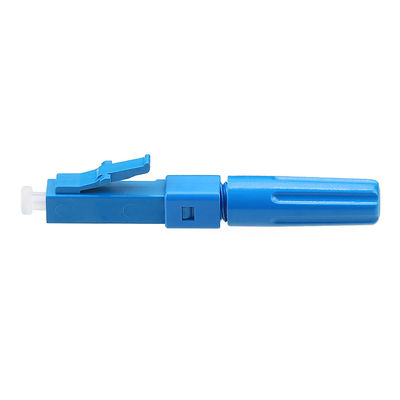

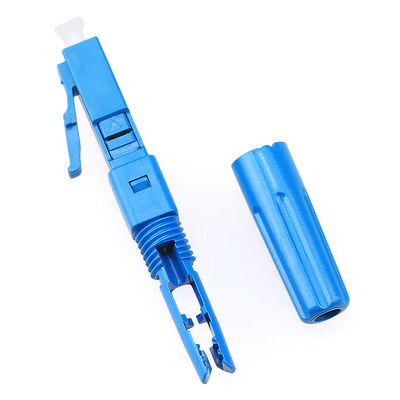

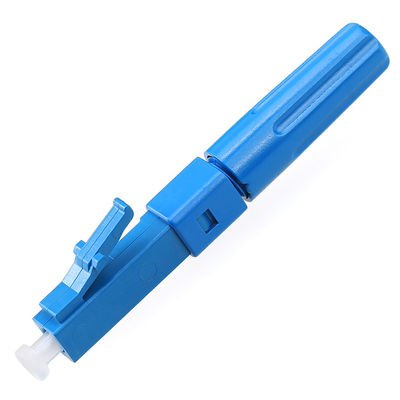

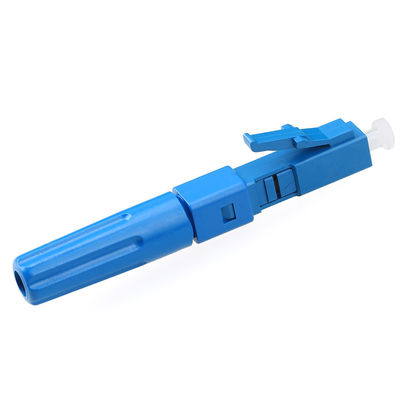

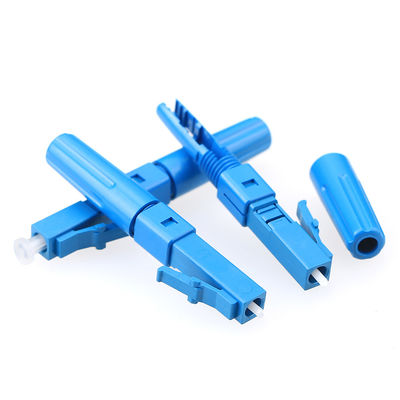

FTTH Fast Installable Connector, LC UPC Fast Connector for 2x3mm Drop Cable

Name: FTTH Fast Installable Connector, LC UPC Fast Connector for 2x3mm Drop Cable
Brand: YINGDA TECHNOLOGY LIMITED
SKU: ELC925T
Price: 0.19 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	ELC925T
MOQ:	100PCS
Price:	0.19USD-0.72USD
Delivery Time:	3-5 working days after get payment
Payment Terms:	T/T or western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO

Material:

PEI

Fiber Type:

G657A1

Connector Type:

LC UPC

Cable Type:

2x3mm Drop Cable, 0.9mm, 2,0mm,3.0mm Cable

Fiber Mode:

Single Mode

Connector Length:

43mm

Packag:

Self-sealed Bag

Product Name:

Ftth Fiber Connector,ftth Fiber Optic Connector,fiber Cable Connectors,field Installable Connector

Packaging Details:

10pcs / blister box,1200pcs / carton box

Supply Ability:

10,000pcs per day

Highlight:

2x3mm FTTH Fast Installable Connector

LC UPC FTTH Fast Installable Connector

Drop Cable LC UPC Fast Connector

Product Description

FTTH Fast Installable Connector, LC UPC Fast Connector for 2x3mm Drop Cable

LC Fast Field Installation Assembly also called Mechanical Quick Assemblyb connector, most people call it fast connector for short. It is a kind of connector, it is used in field wiring operation and FTTH projectwhere need fast and stable connection. Because it has embedded fiber and pre-polished and heat oven ferrule, so no need additional glue curing or grinding, thus offer quicker help to installation, maintenance,repair and fiber to the home for engineers.

The pre-embedded fiber and prepolished and cured ferrule ensures the ferrule end face good quality, and effectively protect the user equipment interface from damage, reduce the connection attenuation loss.

LC Fast Connector Sell point:

1. pre-polished and curing ceramic ferrule

2. pre-embedded fiber optic fiber G657A1 G652D, G657A2

3. LC/APC, LC/UPC can be choose

4. fast connector tools: fiber cable coat stripper, drop cable stripper, alcohol,guideway,fiber cleaver

5.spare parts: each 10sets or 100sets will offer:

1xguideway tool +10x dust cleaner wippers+1x english user manual.

6. Can use for 0.9mm indoor cable with a black clamp

LC Fast Connector Specification

ITEM	Technical Parameters
Applicable for	Indoor cable 0.9MM
Optical fiber diameter	125μm ( 657A & 657B )
Tight buffer diameter	250μm
Fiber mode	Single mode
Operation time	About 100s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	> -45dB
Fastening strength of naked fiber	>4 N
Fastening strength of naked fiber holder	>8 N
Tensile strength	>10 N
Using temperature	-40～+75℃
On-line tensile strength (20 N)	△ IL ≤ 0.5dB △ RL ≤ 5dB
Mechanical durability (500 times)	△ IL ≤ 0.5dB △ RL ≤ 5dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times)	△ IL ≤ 0.5dB △ RL ≤ 5dB

FTTH Fast Installable Connector, LC UPC Fast Connector for 2x3mm Drop Cable 0

FTTH Fast Installable Connector, LC UPC Fast Connector for 2x3mm Drop Cable 1

LC Fast Connector Features

1. Can be used as a connector and attenuator

2. Can made any length of fiber optic patch cord on-site

3. On-site installation, simple and quick operation, only 2 minutes

4. With pre-embedded optical fiber and the end face is pre-polished and heat oven, without any adhesive and polishing process

5. Do not need hot melt, save power supply

6. High performance, good reliability

7. Mechanical and environmental performance conforms to GR-326-CORE standard.

LC Fast Connector Application

Fiber Optic Test
Fiber Optic Distribution Frame use
FTTH network
CATV / LAN network
Fiber Optic Telecommunication system
Fiber Data Transmission network

LC Fast Connector Order information

Connector: SC/UPC, SC/APC, FC/UPC,FC/APC,ST, LC/UPC,LC/APC
Cable type: drop cable , indoor cable 0.9mm, 2.0mm
Connector color: Blue,Green, Black
Fiber type: G652D, G657A1, G657A2
