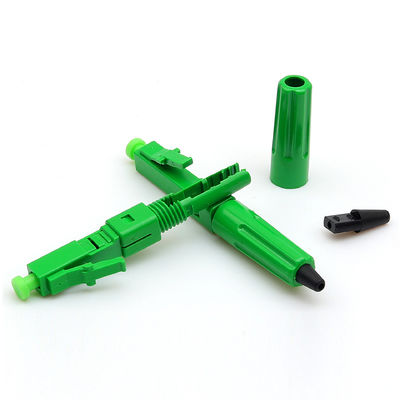

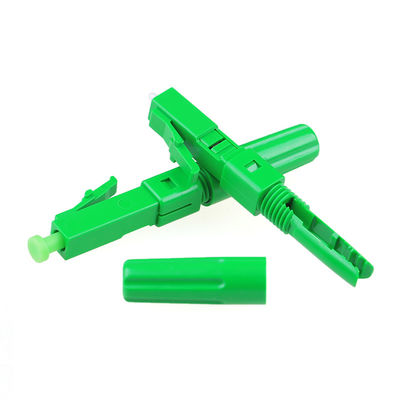

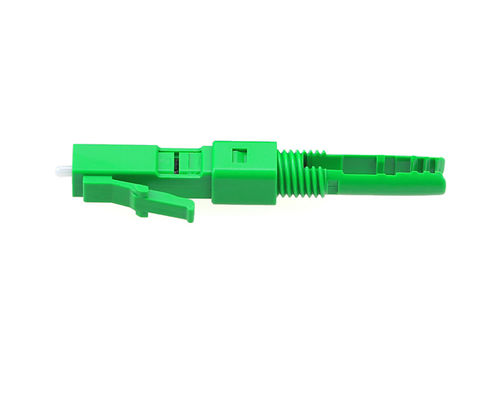

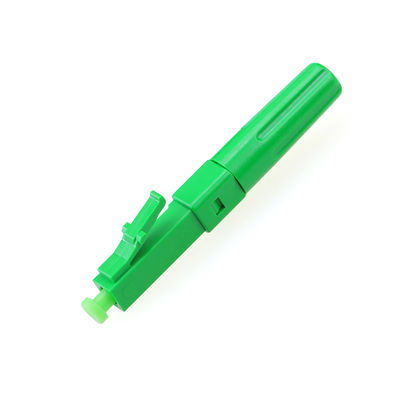

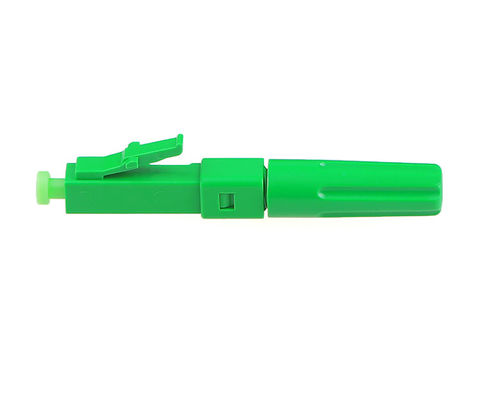

FTTH Mechanical Fast Installable Connector, LC Fast Connector for 2x3mm Drop Cable
  • name
  • name
  • name
  • name
  • name

FTTH Mechanical Fast Installable Connector, LC Fast Connector for 2x3mm Drop Cable

MOQ: 100PCS
Price: 0.19USD-0.72USD
Standard Packaging: 10pcs / blister box,1200pcs / carton box
Delivery Period: 3-5 working days after get payment
Payment Method: T/T or western Union
Supply Capacity: 10,000pcs per day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
ELC925T
Material:
PEI
Fiber Type:
G657A1
Connector Type:
LC APC
Cable Type:
2x3mm Drop Cable, 0.9mm, 2,0mm,3.0mm Cable
Fiber Mode:
Single Mode
Connector Length:
43mm
Packag:
Self-sealed Bag
Product Name:
Ftth Fiber Connector,ftth Fiber Optic Connector,fiber Cable Connectors,field Installable Connector
Highlight:

LC Fast Installable Connector

,

2x3mm Fast Installable Connector

,

FTTH Mechanical Fast Installable Connector

Product Description

FTTH Mechanical Fast Installable Connector, LC Fast Connector for 2x3mm Drop Cable



LC Fast Field Installation Assembly also called Mechanical Quick Assemblyb connector, most people call it fast connector for short. It is a kind of connector, it is used in field wiring operation and FTTH projectwhere need fast and stable connection. Because it has embedded fiber and pre-polished and heat oven ferrule, so no need additional glue curing or grinding, thus offer quicker help to installation, maintenance,repair and fiber to the home for engineers.



The pre-embedded fiber and prepolished and cured ferrule ensures the ferrule end face good quality, and effectively protect the user equipment interface from damage, reduce the connection attenuation loss.



LC Fast Connector Sell point:

1. pre-polished and curing ceramic ferrule

2. pre-embedded fiber optic fiber G657A1 G652D, G657A2

3. LC/APC, LC/UPC can be choose

4. fast connector tools: fiber cable coat stripper, drop cable stripper, alcohol,guideway,fiber cleaver

5.spare parts: each 10sets or 100sets will offer:

             1xguideway tool +10x dust cleaner wippers+1x english user manual.

6. Can use for 0.9mm indoor cable with a black clamp



 LC Fast Connector Specification

ITEM

Technical Parameters

Applicable for

 Indoor cable 0.9MM

Optical fiber diameter

125μm ( 657A & 657B )

Tight buffer diameter

250μm

Fiber mode

 Single mode

Operation time

About 100s(no fiber cut)

Insert loss

≤ 0.3dB(1310nm & 1550nm)

Return loss

> -45dB

Fastening strength of naked fiber

>4 N

Fastening strength of naked fiber holder

>8 N

Tensile strength

>10 N

Using temperature

-40～+75℃

On-line tensile strength (20 N)

△ IL ≤ 0.5dB △ RL ≤ 5dB

Mechanical durability (500 times)

△ IL ≤ 0.5dB △ RL ≤ 5dB

Drop-off test (drop-off height 4m,

once per direction, totally 3 times)

△ IL ≤ 0.5dB △ RL ≤ 5dB




FTTH Mechanical Fast Installable Connector, LC Fast Connector for 2x3mm Drop Cable 0FTTH Mechanical Fast Installable Connector, LC Fast Connector for 2x3mm Drop Cable 1FTTH Mechanical Fast Installable Connector, LC Fast Connector for 2x3mm Drop Cable 2FTTH Mechanical Fast Installable Connector, LC Fast Connector for 2x3mm Drop Cable 3FTTH Mechanical Fast Installable Connector, LC Fast Connector for 2x3mm Drop Cable 4FTTH Mechanical Fast Installable Connector, LC Fast Connector for 2x3mm Drop Cable 5FTTH Mechanical Fast Installable Connector, LC Fast Connector for 2x3mm Drop Cable 6

LC Fast Connector Features



1. Can be used as a connector and attenuator

2. Can made any length of fiber optic patch cord on-site

3. On-site installation, simple and quick operation, only 2 minutes

4. With pre-embedded optical fiber and the end face is pre-polished and heat oven, without any adhesive and polishing process

5. Do not need hot melt, save power supply

6. High performance, good reliability

7. Mechanical and environmental performance conforms to GR-326-CORE standard.



LC Fast Connector Application

  1. Fiber Optic Test
  2. Fiber Optic Distribution Frame use
  3. FTTH network
  4. CATV / LAN network
  5. Fiber Optic Telecommunication system
  6. Fiber Data Transmission network



LC Fast Connector Order information

  1. Connector: SC/UPC, SC/APC, FC/UPC,FC/APC,ST, LC/UPC,LC/APC
  2. Cable type: drop cable , indoor cable 0.9mm, 2.0mm
  3. Connector color: Blue,Green, Black
  4. Fiber type: G652D, G657A1, G657A2




Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
0%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

W
W*x
Chile May 22.2025
trustpilot.com
Helpful (13)
The quality is very good, it is worth buying again, I have bought from this supplier many times, I believe you.
8
8*V
United States Feb 10.2024
Helpful (10)
Everything is working as expected. Communication was great for you and the shipping arrived promptly, thank you so much. Definitely will be purchasing from you guys in the future.
M
Mini Type Dome Fiber Optic Splice Closure for 48 Fiber Cable Joint closure
Turkey Jan 28.2022
Helpful (2)
The team helped me from start to finish with this special order. Always updated on the status. With so many bad issues in the past, i was worried when buying items from alibaba, but for this one it went 100% ok. The order arrived as discussed and all perfect. Thank you.
Tags:

quick assembly connector,

FTTH connector,

mechanical splicer
