LC Fast Connector Field Installable Connector SM 2*1.6mm Flat Drop Cable Blue

Name: LC Fast Connector Field Installable Connector SM 2*1.6mm Flat Drop Cable Blue
Brand: YINGDA TECHNOLOGY LIMITED
SKU: YDFIC-002-LC/APC
Price: 0.19 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	YDFIC-002-LC/APC
MOQ:	10 PCS
Price:	0.19USD-0.72USD
Delivery Time:	3-5 working days after get payment
Payment Terms:	T/T or western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO, CE, ROHS

Material:

PEI

Length:

45 Mm

Cable:

2.0*1.6 Mm

Color:

Blue

Feature:

White Long Dust Cap

Ferrule:

UPC Ceramic Ferrule

Fiber Type:

Single Mode 9/125um

Fiber Count:

1 Core

Application:

FTTH, FTTX, Data Center

V Groove Material:

Metal

Product Name:

Lc Fiber Connector,lc Fiber Optic Connector,fiber Cable Connectors,field Installable Connector

Packaging Details:

1pc /bag,1000 pcs / carton box

Supply Ability:

10,000 pcs per day

Highlight:

Blue Field Installable Connector

Flat Drop Cable LC Fast Connector

LC Field Installable Connector

Product Description

LC Fast Connector Field Installable Connector SM 2*1.6mm Flat Drop Cable Blue

LC/UPC Fast Field Installation Connector also called Mechanical connector, most people call it fast connector for short. It is a kind of optical on-site connector, used in field wiring operation and FTTH project where need fast and stable connection. Because it has embedded fiber and pre-polished and heat oven ferrule, no need additional glue curing or grinding, thus offer quicker help to installation, maintenance,repair and fiber to the home for engineers.

The pre-embedded fiber and prepolished and cured ferrule ensures the ferrule end face good quality, and effectively protect the

user equipment interface from damage, reduce the connection attenuation loss. This type Metal V Groove ensures the high

performance during high and low temperature.

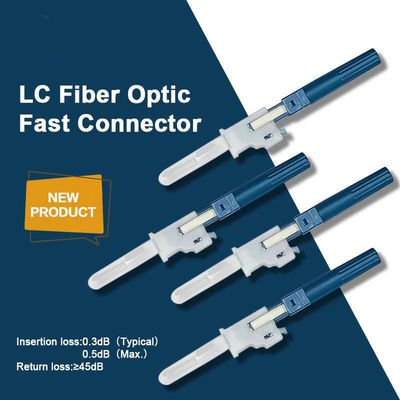

LC Fast Connector Field Installable Connector SM 2*1.6mm Flat Drop Cable Blue 0

LC UPC Fast Connector Specification

ITEM	Technical Parameters
Applicable for	2.0*1.6mm drop cable, indoor cable 3mm, 1.6mm, 0.9MM, 250um bare fiber
Optical fiber diameter	125μm ( 657A & 657B )
Tight buffer diameter	250μm
Fiber mode	Single mode
Operation time	About 100s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	> -45dB
Fastening strength of naked fiber	>4 N
Fastening strength of naked fiber holder	>8 N
Tensile strength	>10 N
Using temperature	-40～+75℃
On-line tensile strength (20 N)	△ IL ≤ 0.5dB △ RL ≤ 5dB
Mechanical durability (500 times)	△ IL ≤ 0.5dB △ RL ≤ 5dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times)	△ IL ≤ 0.5dB △ RL ≤ 5dB

LC UPC Fast Connector Features

Do not need hot melt, pre-polished and curing ceramic ferrule, high quality, ensure <0.5dB loss and low return loss.
Metal V groove, unique design, it can effectively prevent the volatilization of matching gel and prolong the service life
Good resistance to high and low temperature changes, stable and reliable performance
Cable stripper length: 15mm coating / 10mm bare fiber
NOT ONLY USE FOR 2.0*1.6MM, but also for bare fiber 250um. 0.9mm, 3mm round cable.
Can made any length of fiber optic patch cord on-site
On-site installation, simple and quick operation, only 2 minutes
Mechanical and environmental performance conforms to GR-326-CORE standard.

LC UPC Fast Connector Application

Fiber Optic Test
Fiber Optic Distribution Frame use
FTTH network
CATV / LAN network
Fiber Optic Telecommunication system
Fiber Data Transmission network

LC Fast Connector Field Installable Connector SM 2*1.6mm Flat Drop Cable Blue 1

LC/UPC Fast Connecctor Real Package Information:

LC Fast Connector Field Installable Connector SM 2*1.6mm Flat Drop Cable Blue 4

On-site constrction toolkits can be offer, please click the link below:

LC Fast Connector Field Installable Connector SM 2*1.6mm Flat Drop Cable Blue 7
