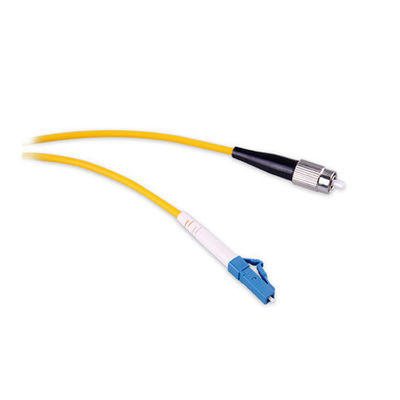

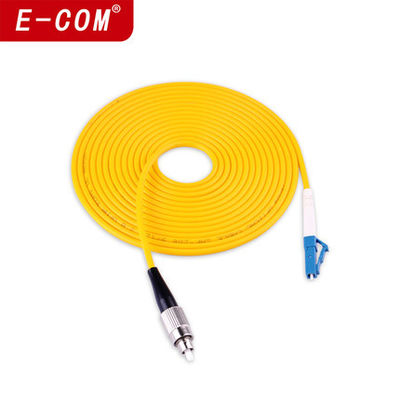

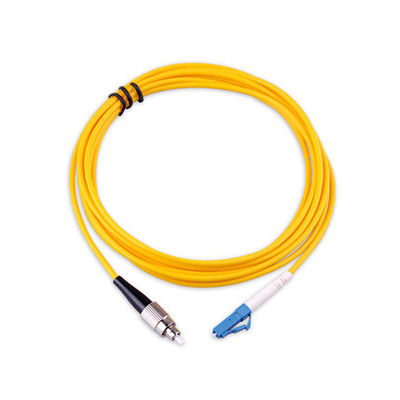

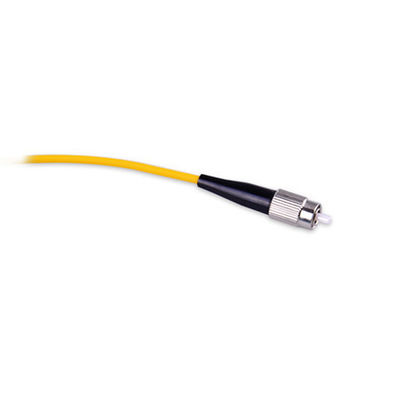

FC LC Connector Fiber Optic Patch Cord FTTx FTTH FTTB Network Patch Cord
  • name
  • name
  • name
  • name

FC LC Connector Fiber Optic Patch Cord FTTx FTTH FTTB Network Patch Cord

MOQ: 10pc
Price: 0.36USD-30USD
Delivery Period: 5-8days
Payment Method: D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
China
Brand Name
no
Certification
ISO CE
Model Number
no
Application:
FTTH FTTB FTTX Network
Connector Type:
SC-SC LC-LC FC-FC ST-ST Or Hybrid
Length:
Customized
Insertion Loss:
≤0.3dB,< 0.2dB,<=3.0 DB
Wavelength:
850 Nm,1310nm,1310nm Or 1550nm
Product Name:
Fiber Cable,fiber Optic Patch Cables,fiber Optics Patch Cords,fiber Optic Jumpers,fiber Optic Jumper Cables,fiber Optik Patch Cord
Highlight:

FC LC Fiber Optic Patch Cord

,

FTTx Fiber Optic Patch Cord

,

FTTB Network Patch Cord

Product Description

Fiber Optic Patch cord





Feature

Low insertion loss

High return loss

Good exchange ability

Good durability

High temperature stability

100% interferometer measurement

Telcordia GR-326-CORE



Application

Fiber Optic Telecommunications

LAN (Local Area Network

FTTH (Fiber To The Home)

CATV&CCTV

High speed transmission systems

Fiber optic sens





Specification

Item Value
Connector SC LC FC ST E2000 DIN D4 SMA FDDI MTRJ MU MPO MTP LX.5 VF45, etc
Operating wavelength 1260-1650nm
Fiber type G652D, G657A2, G657A1, G655, G657B3, OM1 OM2 OM3 OM4,OM5, etc
Cable jacket LSZH, PVC, PE, TPU, etc
Cable type Simplex, duplex (zipcord), Φ3mm,Φ2.6mm, Φ2.4mm, Φ2mm,Φ1.6mm, Φ0.9mm, etc.
Polish manner UPC, APC(8°), PC
Cable color Yellow, white, blue, orange, gray, green, etc.
Fiber radius of curvature ≥ 40 mm (G.652D and G.655C); ≥ 20 mm (only G.657A2)
Insertion Loss

≤ 0.1dB (Master)

≤ 0.3dB (Standard)

Tested by JDS RM 3750
Return Loss

UPC ≥ 55dB,APC ≥ 60dB (typ.65dB)--Single mode

UPC≥ 35dB (typ.38dB)-Multimode

Tested by JDS RM3750
Repeat ability ±0.1dB
Operating temperature -40 ° C to 85 ° C

Geometry Requirement

(For Single mode)

Ferrule End face Radius:

7mm ≤ R ≤ 12mm (APC)

10mm ≤ R ≤ 25mm (Standard)

Apex Offset ≤ 30 μm (Master)

Apex Offset ≤ 50 μm (Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1
