Fiber Cable Joint Box
Created with Pixso. Dome Fiber Optic Splitter Box With SC Adapters 4 Ports With SC Adapters

Dome Fiber Optic Splitter Box With SC Adapters 4 Ports With SC Adapters

Brand Name: YINGDA
Model Number: GJS-2001
MOQ: 100PCS
Price: NEGOTIABLE
Delivery Time: 5-8 working days
Payment Terms: Western Union, T/T, L/C
Detail Information
Place of Origin:
china
Certification:
ISO SGS CE ROHS
Cable Ports:
4 Ports
Cable Diameter:
2×Ø20 Mm; 2×Ø40 Mm
Color:
Black
Dimension:
510*250mm
Installation Method:
Wall Mount, Pole Mount, Manhole, Underground,aerial
Splitter:
1x1:16 Blockless PLC Splitter Or 1x1:16 Or2*1:8 Bare PLC Splitter.
Adapter:
Max. 18pcs SC
Drop Cable:
Max. 18pcs 2*3.0mm
Splice Tray:
Max. 5pcs
Max Capacity:
120 Fibers
Packaging Details:
1 pc / box, 6 pcs/ carton box
Highlight:

fiber optic cable junction box

,

fiber optic cable joint box

Product Description

FOSC Enclosure, Dome Fiber Optic Splitter Box With SC Adapters





Fiber optic splice closure ( short  FOSC) called fiber optic junction box or enclosures.

It is the cable terminated access point, then connect with optical switch through the

optical fiber jumper.





 Features:

  1. The closure adopts mechanical sealing structure.There is one oval shaped cable port
  2. entrances in base. The big entrance is used for the sealing of uncut straight-through
  3. fiber cable, the small ports are used for branch fiber cable and drop cable.
  4. To adopt engineering PC plastic with high-strength to make the closure has longer life time
  5. and excellent sealing performance.
  6. It can be installed one 1:16 blockless PLC splitter in max. One 1:16 or two 1:8 bare PLC splitter.
  7. There are different drop cable elements to be chosen (Φ5,2*3). Max. 18pcs drop cable input/output
  8. (special type Can be customized).
  9. The patented sealing structure keep good sealing performance after re-entry and re-using.
  10. It could save the installation time and improve work efficiently.



Applications:

  1. Suitable for bunchy fibers
  2. Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
  3. It’s especially applicable to FTTH optical fiber distribution



Specification



Model no.

Splice Tray

 Capacity

Wiring mOdule

Qty & Max. Qty

Splitter Tray

Max.

Type of Adaptor

& Max. Qty

Max.

Capacity

GJS-2001 I

(Bunchy)

5 pcs (12-24f per tray)

None

1

None

120F

GJS-2001 II

(Bunchy)

2 pcs (12-24f per tray)

1

1

SC 18 pcs

48F



Cable Structure

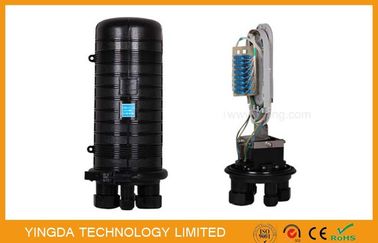

Dome Fiber Optic Splitter Box With SC Adapters 4 Ports With SC Adapters 0

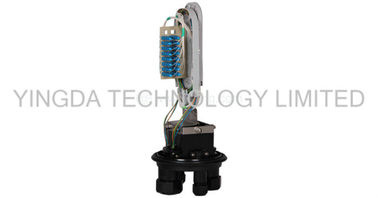

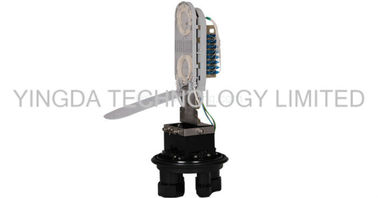

Dome Fiber Optic Splitter Box With SC Adapters 4 Ports With SC Adapters 1
