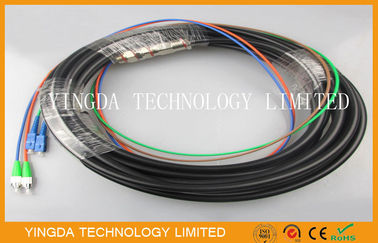

Outdoor Fiber Optic Pigtail SC

Place of Origin china
Brand Name YINGDA
Certification ISO SGS ROHS
Model Number FPG-SCFCA-02-20
Minimum Order Quantity 50 pcs
Price negotiable
Packaging Details 1 pc/ box,100pcs / carton box
Delivery Time 7days after payment
Payment Terms Western Union, T/T
Supply Ability 60,000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector SC, FC Fiber Count 2 Cores
Insertion Loss <0.3dB Fiber Type Singlemode 9/125um OS2
Package Plastic Bag / Carton Box Cable Color Black
Strength Member Waterproof Cable
High Light

optical fiber pigtail

,

waterproof pigtail

Leave a Message
Product Description

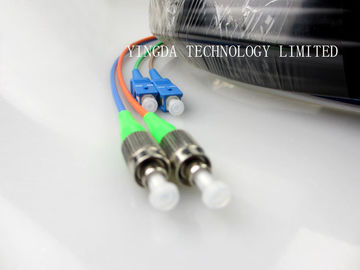

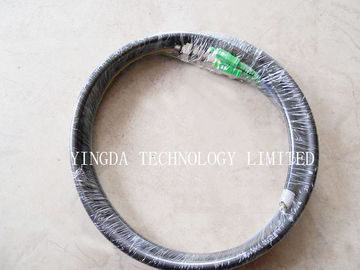

Outdoor Waterproof Fiber Optic Pigtail SC FC / APC 4 Core Patch Cord





Waterproof pigtail cable is to connect the backbone optical cable and optical receiver. It is made

of high quality connector components and high quality waterproof cable and anti-corrosion parts.

Its is mainly used for field optical transceiver access, strong adaptability to the environment, one

end with an optical connector and durable waterproof metal or aluminum connector.The installation

is convenient, reliable, can resist all kinds of harsh environment and long service life, outer jacket

high toughness, high tensile strength, good grounding device. According to customer requirements,

 can be assembled connector like: FC, SC, ST, LC, MU, SMA,etc.



Application



Fiber jumper products are widely applied to communication room, FTTH, local area network,

optical fiber sensor, optical fiber communication system, optical fiber connection transmission

equipment, national defense,etc. It is suitable for the cable TV network, telecommunication

network, computer network and optical fiber test equipment. Mainly are:

  • CATV,LAN network,
  • Equipment terminal
  • Multimedia connection
  • Data transmission network
  • Fiber Optic Access network



Features

  1. Reliable performance,wide application
  2. High tensile strength, corrosion resistance, suitable for harsh field environment
  3. Convenience construction, high safety, tighten the connector nut not make the cable and pigtail rotate
  4. APC /UPC grinding, special process connector end face
  5. Low insertion loss, high return loss



Technical parameters



Item

Test condition

Single

mode

Multi-

mode

Optical

characteristics

Insertion

 loss

UPC

 SM:1310nm/1550nm

MM:850nm/1300nm

≤0.2dB

≤0.3dB

APC

1310nm/1550nm

≤0.3dB



Return

loss

UPC

 SM:1310nm/1550nm

MM:850nm/1300nm

≥55 dB

≥35 dB

APC

1310nm/1550nm

≥65 dB



mechanical

properties

(additional loss)

Impact test

1.8 height,8times

<0.1 dB

<0.1 dB

 Vibration test

10-60Hz,1mm Full amplitude

<0.1 dB

<0.1 dB

Plug life

1000 times

<0.1 dB

<0.1 dB

Tensile strength

>100N

<0.1 dB

<0.1 dB

Environmental

characteristics

(additional loss)



High and low

temperature

cycling test

-25℃~+70℃,2 recycle

<0.2 dB

<0.2 dB

High temperature

test

+80℃,2hours

<0.2 dB

<0.2 dB

Low temperature

 test

-40℃,2hours

<0.2 dB

<0.2 dB

Damp heat test

+40℃,90-95%RH,2hours

<0.2 dB

<0.2 dB



Order information



1. Connector: FC,ST,SC,LC,MU,MPO,E2000,SMA etc,

2. End face: PC,UPC,APC

3. Cable diameter: Ф0.9,Ф2,Ф3

4. Fiber count: 1core,2core,4core,6core,8core,12core,etc.



5. Fiber type: G652B, G652D, G655, G657A, G657A2, 50/125, 62.5/125,
OM3(50/125-150), OM4(50/125-300), etc

6. Connector color: blue, beige, green,aqua.

7. Boot color: gray, blue, white, red, black, green

8. Cable length: on customer request
