Metal + Plastic FC Square Fiber Optic Adapter For Telecommunication / CATV Network

Metal + Plastic FC Square Fiber Optic Adapter For Telecommunication / CATV Network

  • High Light

    fiber optic adaptor

    ,

    bare fiber adapter

  • Fiber Count
    1 Fibers
  • Connector Material
    Metal + Plastic
  • Dustcap Color
    Green
  • Sleeve Material
    Ceramic
  • Fiber Type
    Single Mode SM
  • Polish Mode
    APC
  • Working Temperature
    -40 ~ +80 °C
  • Wavelength
    1310/1550nm
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS
  • Model Number
    AD-FC-SA01-G
  • Minimum Order Quantity
    500pcs
  • Price
    Negotiable
  • Packaging Details
    50 pc / box
  • Delivery Time
    5 working days
  • Payment Terms
    T/T or western Union
  • Supply Ability
    200km/ month

Metal + Plastic FC Square Fiber Optic Adapter For Telecommunication / CATV Network

Zinc Alloy FC Fiber Optic Adapter, FC / APC Copper Adapter Coupler Green





The earliest FC connector was developed by NTT, Japan. =FC= ferrule connector.



FC indicates that its external strengthening way is to use metal sleeve, fastening way as the turn

buckle. First, FC type connector, the use of ceramic the butt end of the pin. Such connector has

simple structure, convenient operation, easy, but the dust sensitive optical fiber end face, and prone

to Fresnel reflex, is difficult to improve properties return loss. Later, made improvement for this type

of connector, adopts the butt end of spherical pin (PC), and external structure has not changed, the

insertion loss and return loss performance has improved significantly.



Fiber Optic Adapter called fiber opptic couple, it is a kind of connector whose both ends can be

inserted the different optical fiber connector such as FC, SC, ST, LC, MTRJ, MPO, E2000 to make

hem interchange, and widely used in optical distribution frame(ODF), optical Fiber communication

equipment, instruments, etc.It is superior performance, stable and reliable.



Features

  1. Conforms to Telcordia GR-326-CORE standard
  2. Conforms to YD/T-1272.3 standard
  3. Good interchangeability
  4. Low insertion loss
  5. Plug connection, easy and fast to install or uninstall



Application



  • CATV network, FTTH, Telecommunication,etc





Specification



Item

SM





MM

PC

UPC

APC

Ferrule type

Convex spherical

big chamfer or step

Convex spherical

Ferrule ID (um)

125

127

Main body material

PBT or ABS

Connector type(mm)

0.9/2.0/3.0mm, simplex, duplex

Operating temperature (°C)

-40 ~+85

Storage temperature (°C)

-40 ~+85



Application

  1. optical fiber communication system
  2. cable TV network
  3. local area network (LAN), optical network domain
  4. optical fiber to the home (FTTP)
  5. video transmission
  6. test instruments



Order information



Endface

Fiber mode

Fiber core

Sleeve

PC

Multi mode

simplex

Cermic

UPC

Single mode

duplex

Phosphor bronze

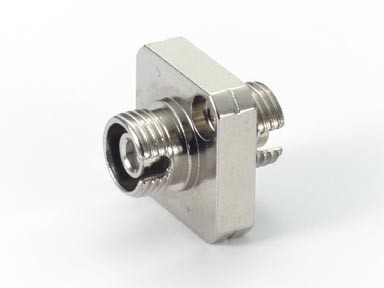

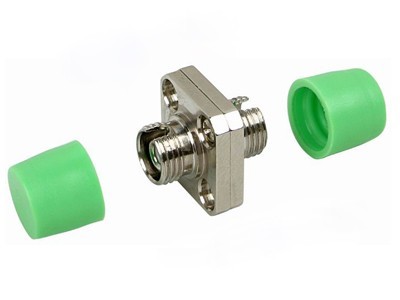

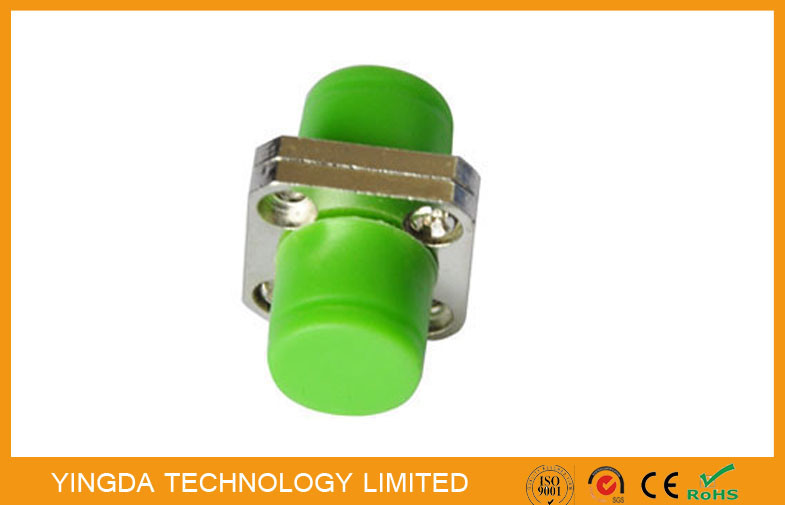

FC Adapter Square Type More Details:



Metal + Plastic FC Square Fiber Optic Adapter For Telecommunication / CATV Network 0Metal + Plastic FC Square Fiber Optic Adapter For Telecommunication / CATV Network 1

Metal + Plastic FC Square Fiber Optic Adapter For Telecommunication / CATV Network 2
