Created with Pixso. Zinc Alloy FC Fiber Optic Adapter FC / APC Copper Coupler Green

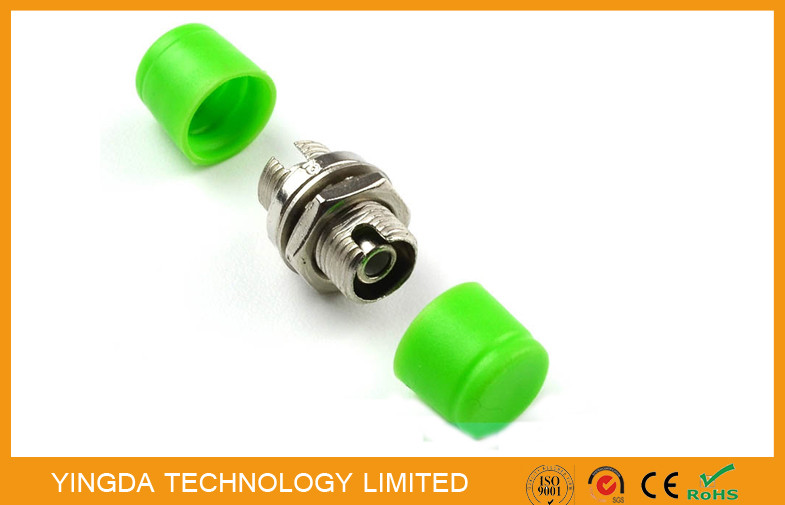

Zinc Alloy FC Fiber Optic Adapter FC / APC Copper Coupler Green

Brand Name: YINGDA
Model Number: AD-FC-SA01-G
MOQ: 500pcs
Price: Negotiable
Delivery Time: 5 working days
Payment Terms: T/T or western Union
Detail Information
Place of Origin:
china
Certification:
ISO,SGS
Fiber Count:
1 Fibers
Connector Material:
Metal + Plastic
Dustcap Color:
Green
Sleeve Material:
Ceramic
Fiber Type:
Single Mode SM
Polish Mode:
APC
Working Temperature:
-40 ~ +80 °C
Wavelength:
1310/1550nm
Product Name:
Mpo To Mpo Cable,mpo To Lc Cable, Mtp Optical Connector,mtp Cassette
Packaging Details:
50 pc / box
Supply Ability:
200km/ month
Highlight:

fiber optic coupler

,

bare fiber adapter

Product Description

Zinc Alloy FC Fiber Optic Adapter, FC / APC Copper Adapter Coupler Green



FC type



The earliest FC connector was developed by NTT, Japan. The abbreviation of FC is ferrule connector,

which indicates that its external strengthening way is to use metal sleeve, fastening way as the turn

buckle. First, FC type connector, the use of ceramic the butt end of the pin. Such connector has

simple structure, convenient operation, easy, but the dust sensitive optical fiber end face, and prone

to Fresnel reflex, is difficult to improve properties return loss. Later, made improvement for this type

of connector, adopts the butt end of spherical pin (PC), and external structure has not changed, the

insertion loss and return loss performance has improved significantly.



Fiber Optic Adapter called fiber opptic couple, it is a kind of connector whose both ends can be

inserted the different optical fiber connector such as FC, SC, ST, LC, MTRJ, MPO, E2000 to make

hem interchange, and widely used in optical distribution frame(ODF), optical Fiber communication

equipment, instruments, etc.It is superior performance, stable and reliable.





Features



  • Low insertion loss< 0.2 dB
  • zinc alloy or copper material
  • Good interchangeability
  • Good repeatability
  • 100% test in factory
  • Blister box or plastic bag pack



Specification



Item

Value

Wavelength

1200-1600nm

Polish method

UPC,PC,APC

IL

≤0.2dB

Max. IL

≤0.3dB

Repeatability

≤0.1dB

Interchangeability

≤0.2dB

Sleeve material

Cermic or metal

Working/Storage temperature

-40~+85℃

Matings time

>1000

Standard

Bellcore TA-NWT-001221/001209



Application

  1. optical fiber communication system
  2. cable TV network
  3. local area network (LAN), optical network domain
  4. optical fiber to the home (FTTP)
  5. video transmission
  6. test instruments



Order information



Endface

Fiber mode

Fiber core

Sleeve

PC

Multi mode

simplex

Cermic

UPC

Single mode

duplex

Phosphor bronze





FC Adapter Small D hole More Details:

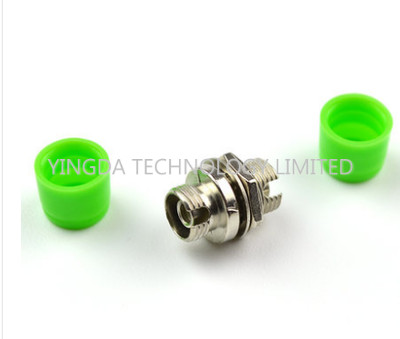

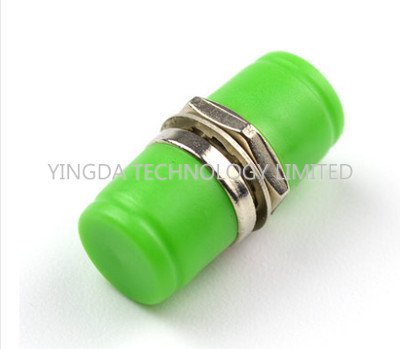

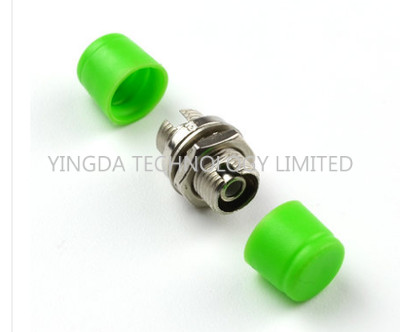

Zinc Alloy FC Fiber Optic Adapter FC / APC Copper Coupler Green 0Zinc Alloy FC Fiber Optic Adapter FC / APC Copper Coupler Green 1Zinc Alloy FC Fiber Optic Adapter FC / APC Copper Coupler Green 2
