Field Installable Connector
Created with Pixso. Mountable Fiber Optical Field Installable Connector ( FMC ) , SC Connector With Back Cover

Mountable Fiber Optical Field Installable Connector ( FMC ) , SC Connector With Back Cover

Brand Name: YINGDA
Model Number: YD-FIC-SC/UPC-E
MOQ: 500PCS
Price: Negotiable
Delivery Time: 5 working days after received your payment
Payment Terms: T/T or western Union
Detail Information
Place of Origin:
china
Certification:
ISO SGS ROHS
Material:
Plastic
House Color:
Blue
Fiber Type:
Single Mode
Back Cover:
Yes, Black
Insertion Loss:
<0.3dB
Return Loss:
>45dB
Pack:
Plastic Bag And Box
Total Length:
53mm
Product Name:
Sc Fiber Connector,sc Fiber Optic Connector,fiber Cable Connectors,field Installable Connector
Packaging Details:
1pc /plastic bag, 10pcs/bigger plastic bag, then 100pcs/box, 1000pcs/ carton
Supply Ability:
500,000pcs per month
Highlight:

quick assembly connector

,

FTTH connector

Product Description

Field Mountable Fiber Optical Connector (FMC), Mechanical SC Connector With Back Cover





Sell point:



1. SC / PC, cover type, the total length 53mm

2. Apply to 2mm* 3mm drop fiber cable

3. Ceramic C-groove structure, good sealing performance, flame retardant

4. Insertion loss: the average ≤0.2dB, MAX≤0.4dB

5. Return loss: ≥45dB

6. No need epoxy or polished, field-installable, factory embedded fiber





Description



SC / PC Fiber Optic Fast Connector designed for FTTH is a new generation of fiber connector

used in assembly. It can provide Open flow and Pre-cast type of products, whose optical and

mechanical specification meets the standard optical fiber connector.


It is designed for high quality and high efficiency for installation the structure of crimping position

is a unique design, and need not gluing, polishing neither any consumables. Adopting fiber

pre-installed structure, and convenient for field installation.



Features

  1. Precise mechanical dimensions
  2. Low insertion loss, high return loss
  3. Comply standard of IEC61754-4
  4. Repeatable times is no less than 50 times;
  5. Long life span design, more than 30 years.
  6. Provide Open flow and Pre-cast type of products
  7. Adopting fiber pre-installed structure
  8. Convenient for field installation
  9. No epoxy or polishing required, easy assembly in the field
  10. Fiber termination can be reset, save time and energy ,reduce scrap
  11. No need special too, readily available



Specification



Type

Parameters

Insertion loss

≤ 0.3dB(1310nm & 1550nm)

Return loss

≤ -40dB

Bare fiber strength

>5N

Clad strength

>10N

Tension

>50N

Mechanical durability (500times)

IL ≤ 0.2dB & RL ≤ 5dB

Operating Temperature

5 ºC to +70 ºC



Application

  • Premise environments
  • Connections at the desk for LAN environments
  • Patch panels
  • Direct equipment termination
  • Fiber to the Subscriber / Home (FTTH) applications
  • Repair/replacement requirements
  • Equipment test leads

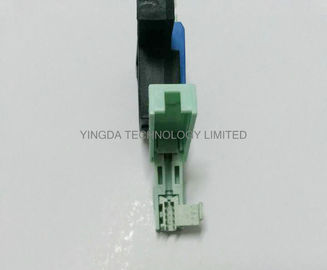

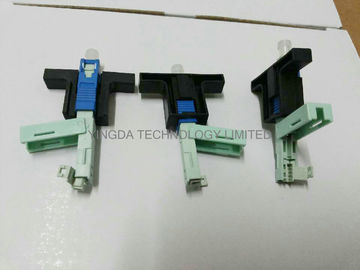

Mountable Fiber Optical Field Installable Connector ( FMC ) , SC Connector With Back Cover 0Mountable Fiber Optical Field Installable Connector ( FMC ) , SC Connector With Back Cover 1Mountable Fiber Optical Field Installable Connector ( FMC ) , SC Connector With Back Cover 2Mountable Fiber Optical Field Installable Connector ( FMC ) , SC Connector With Back Cover 3Mountable Fiber Optical Field Installable Connector ( FMC ) , SC Connector With Back Cover 4Mountable Fiber Optical Field Installable Connector ( FMC ) , SC Connector With Back Cover 5
