| Brand Name: | YINGDA |
| Model Number: | YD-FIC-SCU-D |
| MOQ: | 100PCS |
| Price: | Negotiable |
| Delivery Time: | 3-5 working days after get payment |
| Payment Terms: | T/T or western Union |

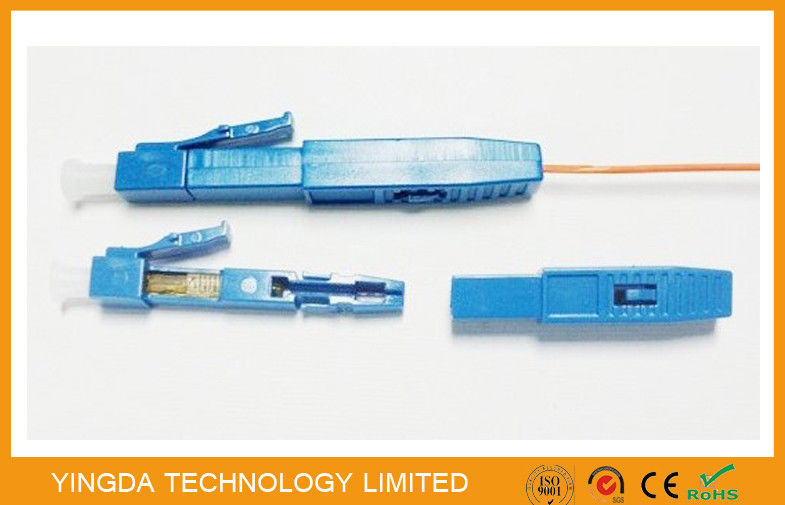

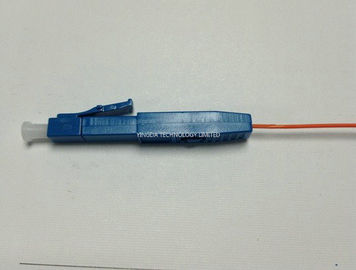

LC UPC Fiber Optic Fast Field Installation Mechanical Connector for FTTH, Quick LC Connector
LC/UPC Fast Field Installation Assembly also called Mechanical Quick Assemblyb connector, most people call it fast connector for short. It is a kind of connector, it is used in field wiring operation and FTTH projectwhere need fast and stable connection. Because it has embedded
fiber and pre-polished and heat oven ferrule, so no need additional glue curing or grinding, thus offer quicker help to installation,
It provides maintenance, repair services and fiber to the home for engineers and other scenarios that require fast and stable connections.
The pre-embedded fiber and prepolished and cured ferrule ensures the ferrule end face good quality, and effectively protect
the user equipment interface from damage, reduce the connection attenuation loss.
Sell point:
1. pre-polished and curing ceramic ferrule
2. pre-embedded fiber optic fiber G657A1 G652D, G657A2
3. Cable stripper length: 22mm / 10mm
4. SC/APC,SC/UPC,LC/UPC,LC/APC,FC/UPC can be choose
5. fast connector tools: fiber cable coat stripper, drop cable stripper, alcohol,guideway,fiber cleaver
6. spare parts: each 10sets or 100sets will offer:
1xguideway tool +10x dust cleaner wippers+1x english user manual.
7. can only use for 0.9mm indoor cable
Features
1.High performance, good reliability.
2.Do not need hot melt, save power supply
3.Can be used as a connector and attenuator
4.Can made any length of fiber optic patch cord on-site
5.Mechanical and environmental performance conforms to GR-326-CORE standard.
6.It enables on-site installation with a simple and quick operation, typically taking only around 2 minutes. This significantly reduces installation time and labor costs, making it highly efficient for various installation environments.
7.The connector comes with a pre-polished and cured ferrule. This ensures the ferrule end face maintains good quality, effectively protecting the user equipment interface from potential damage and minimizing connection attenuation loss. It eliminates the need for additional glue curing or grinding processes during installation, further simplifying the installation steps.
8.It can be used with various types of cables, such as drop cables and indoor cables with diameters of 0.9mm and 2.0mm. Different connector types are available, including SC/UPC, SC/APC, FC/UPC, FC/APC, ST, LC/UPC, and LC/APC, to meet different connection requirements.
9.It exhibits high performance and good reliability, conforming to relevant industry standards. It has excellent technical parameters, such as low insertion loss (≤ 0.3dB at 1310nm & 1555nm) and high return loss (> -45dB). The fastening strength of the naked fiber and the naked fiber holder is also robust, ensuring stable connections under various conditions.
10.This connector finds extensive applications in multiple fields. It can be used in fiber optic tests to ensure the quality and performance of fiber optic systems. It is also suitable for fiber optic distribution frames, facilitating the organization and distribution of fiber optic signals. In FTTH networks, it plays a crucial role in connecting homes to the fiber optic infrastructure. Additionally, it can be applied in CATV (Community Antenna Television) / LAN (Local Area Network) networks, fiber optic telecommunication systems, and fiber data transmission networks, providing reliable and high-speed data transmission.
Specification
|
ITEM |
Technical Parameters |
|
Applicable for |
Indoor cable 0.9MM |
|
Optical fiber diameter |
125μm ( 657A & 657B ) |
|
Tight buffer diameter |
250μm |
|
Fiber mode |
Single mode |
|
Operation time |
About 100s(no fiber cut) |
|
Insert loss |
≤ 0.3dB(1310nm & 1550nm) |
|
Return loss |
> -45dB |
|
Fastening strength of naked fiber |
>4 N |
|
Fastening strength of naked fiber holder |
>8 N |
|
Tensile strength |
>10 N |
|
Using temperature |
-40～+75℃ |
|
On-line tensile strength (20 N) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
|
Mechanical durability (500 times) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
|
Drop-off test (drop-off height 4m, once per direction, totally 3 times) |
△ IL ≤ 0.5dB △ RL ≤ 5dB |
Application
