Field Installable Connector
Created with Pixso. FTTH Optical Fiber Drop Cable Fast Mecahncial Connector SC, Field Installable Connector SC LC FC G657A

FTTH Optical Fiber Drop Cable Fast Mecahncial Connector SC, Field Installable Connector SC LC FC G657A

Brand Name: YINGDA
Model Number: YD-FIC-SCU-D
MOQ: 1000 PCS
Price: Negotiable
Delivery Time: 3-5 working days after get payment
Payment Terms: T/T or western Union
Detail Information
Place of Origin:
china
Certification:
ISO
Product Name:
Fast Connector
Color:
Blue
Pack:
Blister Box
Insertion Loss:
<0.5dB
Material:
PEI
Ferrule:
UPC
Fiber Type:
Single Mode SMF G657A1
Feature:
Field Installable Connector
Product Name:
Sc Fiber Connector,sc Fiber Optic Connector,fiber Cable Connectors,field Installable Connector
Packaging Details:

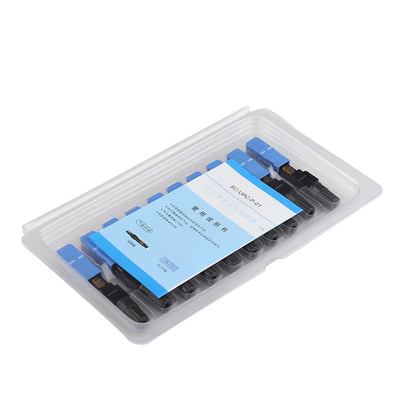

10pcs /blister box, 1000pcs / carton box
Supply Ability:
10,000pcs per day
Highlight:

mechanical splicer

,

FTTH connector

Product Description

FTTH GPON Optical Fiber Drop Cable Fast Mecahncial Connector SC, Field Installable Connector SC LC FC G657A

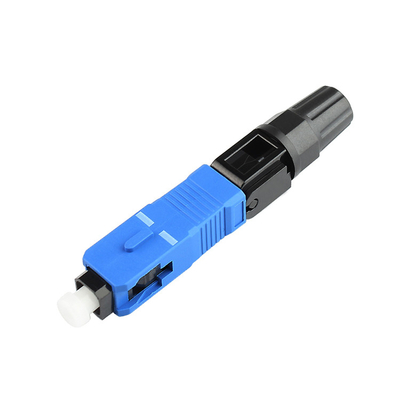

SC/UPC Fast Field Installation Assembly also called Mechanical Quick Assemblyb connector, most people call it fast connector for short. It is a kind of connector, it is used in field wiring operation and FTTH projectwhere need fast and stable connection. Because it has embedded

fiber and prepolished and heat oven ferrule, so no need additional glue curing or grinding, thus offer quicker help to installation, maintenance,repair and fiber to the home for engineers.



The preembedded fiber and prepolished and cured ferrule ensures the ferrule end face good quality, and effectively protect the user equipment interface from damage, reduce the connection attenuation loss.

FTTH Optical Fiber Drop Cable Fast Mecahncial Connector SC, Field Installable Connector SC LC FC G657A 0

Fast Connector Specification

Applicable for

3.1×2.0mm Drop cable, 3.0/2.0/0.9 cable

Optical fiber diameter

125um (G652D,G657A1,G657A2)

Tight butter diameter

250um

Fiber mode

Single mode

Operation time

About 60s (no fiber cut)

Insertion loss

≤0.3dB(1310nm &1550nm)

Return loss

≤-40dB

Fastening strength of naked fiber

>5N

Fastening strength of naked fiber holder

>10N

Tensile strength

>50N

Using temperature

-45~+80℃

On-line tensile strength(20N)

△IL≤0.2dB △RL≤5dB

Mechanical durability(500times)

△IL≤0.2dB △RL≤5dB

Drop-off test

(drop-off height 4m,

once per direction,totally 3times)

△IL≤0.2dB △RL≤5dB



Mechanical Connector Features

  • Can made any length of fiber optic patch cord on-site
  • On-site installation, simple and quick operation, only 2 minute
  • With pre-embedded optical fiber G657A1 G652D, G657A2 and the end face is pre-polished and heat oven, without any adhesive and polishing process
  • Do not need hot melt, save power supply
  • High performance, good reliability
  • Mechanical and environmental performance conforms to GR-326-CORE standard.
  • SC/APC,SC/UPC,LC/UPC,LC/APC,FC/UPC can be choose
  • Fast connector tools: fiber cable coat stripper, drop cable stripper, alcohol, guideway, fiber cleaver
  • Spare parts: each 10sets or 100sets will offer: 1xguideway tool +10x dust cleaner wippers+1x english user manual.

FTTH Optical Fiber Drop Cable Fast Mecahncial Connector SC, Field Installable Connector SC LC FC G657A 1FTTH Optical Fiber Drop Cable Fast Mecahncial Connector SC, Field Installable Connector SC LC FC G657A 2

Quick Assembly Connecor Application

  1. Fiber Optic Test
  2. Fiber Optic Distribution Frame use
  3. FTTH network
  4. CATV / LAN network
  5. Fiber Optic Telecommunication system
  6. Fiber Data Transmission network

FTTH Optical Fiber Drop Cable Fast Mecahncial Connector SC, Field Installable Connector SC LC FC G657A 3FTTH Optical Fiber Drop Cable Fast Mecahncial Connector SC, Field Installable Connector SC LC FC G657A 4

Fiber Optic Fast Connector Order information

  1. Connector: SC/UPC, SC/APC, FC/UPC,FC/APC,ST, LC/UPC,LC/APC
  2. Cable type: drop cable , indoor cable 0.9mm, 2.0mm
  3. Connector color: Blue,Green, Black
  4. Fiber type: G652D, G657A1, G657A2
  5. Length: 60mm, 55mm
  6. Pack: plastic bag, blister box
