Brand Name: | YINGDA |
Model Number: | YD-FS-SCA-09 |
MOQ: | 500PCS |
Price: | Negotiable |
Delivery Time: | 3-5 working days after get payment |
Payment Terms: | T/T or western Union |
FTTH SC FC LC ST Fast Field Installable Connector, Fusion Splice-on Connector SC / APC
Advantage:
1. 1000% test in house before delivery
2. 0.9,2.0,3.0mm suitable

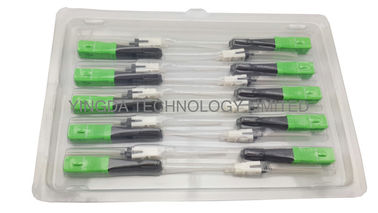

3. 5pcs/set in bliseter box
4. each box with english user manual
5. house color: blue, green

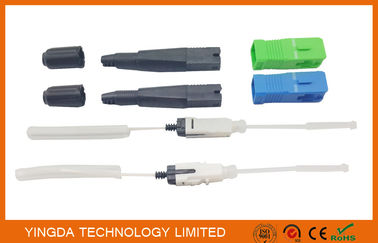

6. SC/APC,SC/UPC,FC/UPC can be choosed
6. Productivity:10,000 pcs / day
Description

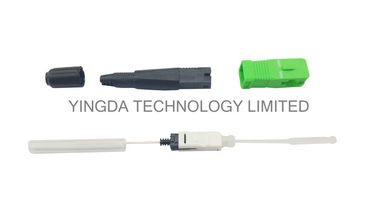

SC/APC Fusion splice-on connector is is optical fiber type quick connector, but its splicing point
inside the connector end, equivalently eliminate the pigtails when splicing.The advantage is no
need additional protection after splice, such as splice tray,splice closure,distribution box.In contract
to the design of mechanical splice connector, it save V-groove mechanical connector maintenance
and operation cost and durable, which overturns the concept that high cost of splice machine
and do not apply to FTTH construction.
Application
Features
Specification
Item |
Parameter |
Cable |
3.1*2.0mm drop cable |
Fiber diameter |
125um(G657A2 bare fiber) |
Tight buffer diameter |
250um |
Fiber type |
Single mode OS1 9/125um |
Insertion loss |
≤0.3dB |
Return loss |
≤-50dB |
Bare fiber solid tightness |
>250g |
Working temperature |
-40℃-+80℃ |
Tensible strength |
60N(5kgs for 2mins) |
Drop test |
4 meters high cement floor direction at a time,in total 3times |
Order information:
1. fiber inside: 0.9mm, bare fiber 250um
2. application cable diameter: 0.9mm, 2.0mm, 3.0mm
Package information
