High Efficiency Field Installable Connector , FTTH Optic Fiber Terminal Connector

Name: High Efficiency Field Installable Connector , FTTH Optic Fiber Terminal Connector
Brand: YINGDA TECHNOLOGY LIMITED
SKU: YD-FS-SCU-09
Price: 0.19 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	YD-FS-SCU-09
MOQ:	500PCS
Price:	0.19USD-0.72USD
Delivery Time:	3-5 working days after get payment
Payment Terms:	T/T or western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO

Product Name:

Sc Fiber Connector,sc Fiber Optic Connector,fiber Cable Connectors,field Installable Connector

Packaging Details:

5pcs / blister box,1000pcs / carton box

Supply Ability:

10,000pcs per day

Highlight:

quick assembly connector

FTTH connector

FTTH Optic Fiber Terminal Connector

Product Description

SC / UPC Fusion Splice-On Connector, Fiber Optic Hot Melt Fusion Splice Connector SC/UPC

SELL POINT:

1. 1000% test in house before delivery

2. 0.9,2.0,3.0mm suitable

3. 5pcs/set in bliseter box

4. each box with english user manual

5. house color: blue, green

Fusion splice SC/UPC connector description

FC Fusion splice on connector is is optical fiber type quick connector,but its splicing point inside the connector end, equivalently eliminate the pigtails when splicing.The advantage is no need additional protection after splice, such as splice tray,splice closure,distribution box. In contract to the design of mechanical splice connector, it save V-groove mechanical connector maintenance and operation cost and durable, which overturns the concept that high cost of splice machine and do not apply to FTTH construction.

Fast connector features

Low operation cost, high efficiency
Quickly achieve the on-site termination connection
Easy operation or use
Pressure welding parts adopt new unique structure design, installation without glue injectino, no grinding, no consumables
High installation quality, high success rate and installation fast, etc
Easy to carry
Accurate mechanical dimensions
All materials conforms to ROHS

Application

FTTH optic fiber terminal connection

Specification

Item	Parameter
Cable	3.1*2.0mm drop cable
Fiber diameter	125um(G657A2 bare fiber)
Tight buffer diameter	250um
Fiber type	Single mode OS1 9/125um
Insertion loss	≤0.3dB
Return loss	≤-50dB
Bare fiber solid tightness	＞250g
Working temperature	-40℃-+80℃
Tensible strength	60N(5kgs for 2mins)
Drop test	4 meters high cement floor direction at a time,in total 3times

Order information:

1. fiber inside: 0.9mm, bare fiber 250um

2. application cable diameter: 0.9mm, 2.0mm, 3.0mm

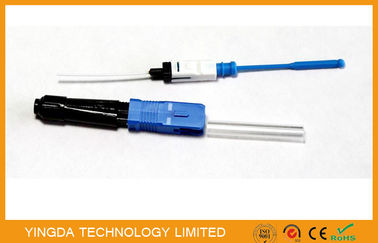

High Efficiency Field Installable Connector , FTTH Optic Fiber Terminal Connector 0

Package information

High Efficiency Field Installable Connector , FTTH Optic Fiber Terminal Connector 1

High Efficiency Field Installable Connector , FTTH Optic Fiber Terminal Connector 2
