LC / PC Fiber Optic Patch Cord Pigtail 62.5 / 125um MM , Fiber Optical LC Pigtail

  • LC / PC Fiber Optic Patch Cord Pigtail 62.5 / 125um MM , Fiber Optical LC Pigtail
  • LC / PC Fiber Optic Patch Cord Pigtail 62.5 / 125um MM , Fiber Optical LC Pigtail
  • LC / PC Fiber Optic Patch Cord Pigtail 62.5 / 125um MM , Fiber Optical LC Pigtail
Place of Origin china
Brand Name YINGDA
Certification ISO SGS ROHS
Model Number FPC-LC-MM1-09-20
Minimum Order Quantity 500 pcs
Price negotiable
Packaging Details 1 pc/ bag, 1500pcs / carton box
Delivery Time 7days after payment
Payment Terms Western Union, T/T
Supply Ability 200,000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector LC / PC Fiber Count Simplex 1 Core
Insertion Loss <0.3dB Fiber Type G655 Fiber
Package Plastic Bag With OEM Label Cable Diameter 0.9mm
Jacket LSZH Connector Color Yellow, White
Temperature -40~+80°C Customer Logo Yes
Wavelength 850nm
High Light

optical fiber pigtail

,

waterproof pigtail
Leave a Message
Product Description

Fiber Optic Patch Cord Pigtail LC / PC, Fiber Optical LC Pigtail 62.5/125um MM





FC/ UPC Fiber Optic pigtail has connector at one end, the other end is fiber optic cable which

be cut off.Then it connect by splice with other cable core. It is widely used in fiber optic terminal

box, ODF rack , cabinet to connect with fiber optic media converter/transceivers( also use coupler,

patch cord too)



Single mode pigtail color is yellow, wavelength: 310nm and 1550nm, their transmission distance:

10km and 40km each.



Features

  1. Conforms to ANSI, Bellcore,TIA/EIA,IEC,etc International and domestic standards
  2. Fiber transmission active connection
  3. Low insertion loss, high return loss
  4. Good changeability and repeatability
  5. Mostly used inside frame connection, simple, convenient and economical
  6. Easy to install, small size, large capacity.



Application

  • Medical instruments
  • Industry and Army use
  • CATV network
  • LAN network
  • Fiber Access network
  • Telecommunications
  • Gigabit Data Network test



1.Technical Data

NO.

Item

Unit

Single Mode

Multi-Mode

1

Insertion Loss

dB

≤0.2

≤0.3

≤0.3

2

Return Loss

dB

≥50/UPC

≥45/PC

≥65/APC

≥35/PC

3

Repeatability

dB

0.1

4

Working Times

Times

≥1000

5

Operating Temperature

°C

-40-85

6

Optical Cable Diameter

mm

Φ0.9

Φ2.0

Φ3.0





2. Polish Data



Item

PC Polishing

APC Polishing

Ferrule Diameter(mm)

2.5

1.25

2.5

1.25

Radius of Cury(mm)

10 ~25

7~25

5~15

Fiber Height(nm)

-100~50

±50

Apex Offset(um)

±50

±50





Ordering Information:


LC/ PC MM 62.5/125 SIMPLEX 0.9mm–2M PVC

①  ②       ③     ④         ⑤    ⑥  ⑦

① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH

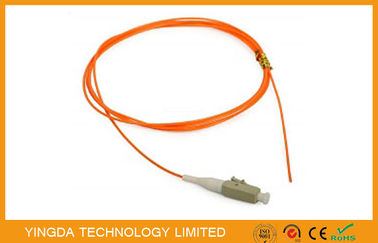

LC Pigtails MM Duplex Cable ZIpcord with Clip:



LC / PC Fiber Optic Patch Cord Pigtail 62.5 / 125um MM , Fiber Optical LC Pigtail 0

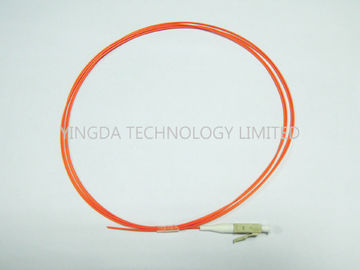

LC pigtail neutral package plastic bag:



LC / PC Fiber Optic Patch Cord Pigtail 62.5 / 125um MM , Fiber Optical LC Pigtail 1
