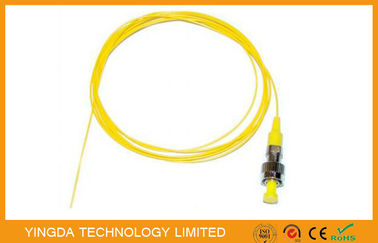

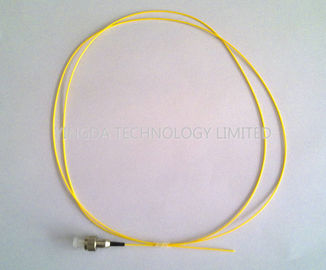

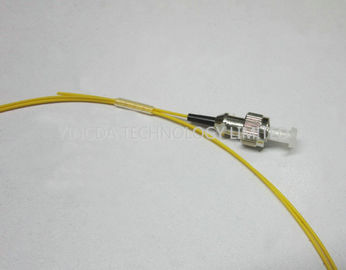

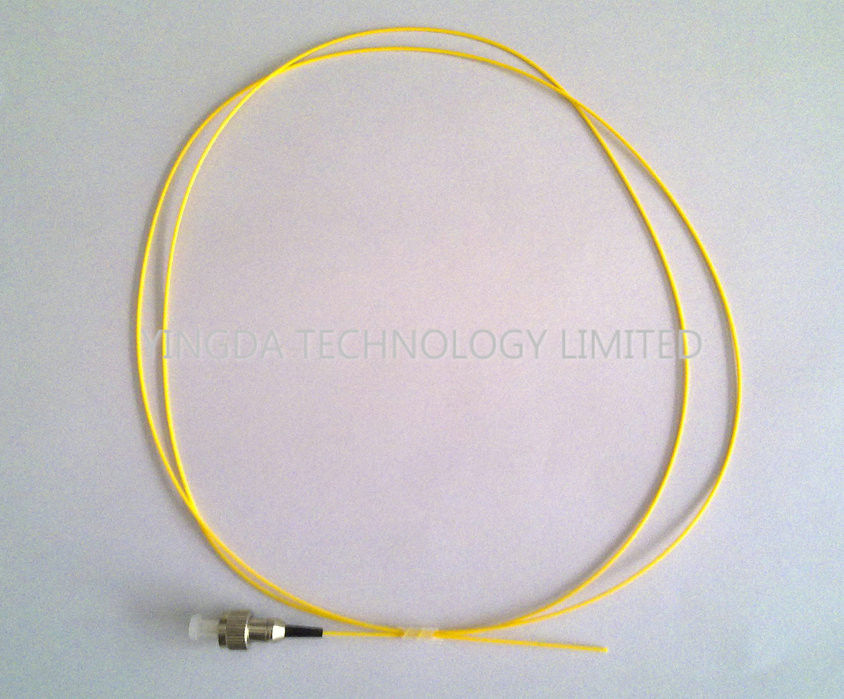

LAN FC Pigtail SM LSZH 900um , Fiber Optic Pigtails 1.5M G652D For Outdoor / Indoor

Name: LAN FC Pigtail SM LSZH 900um , Fiber Optic Pigtails 1.5M G652D For Outdoor / Indoor
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FPC-FC-OS2-09-10
Price: 9.16 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	FPC-FC-OS2-09-10
MOQ:	500 pcs
Price:	0.16USD-19.9USD
Delivery Time:	7days after payment
Payment Terms:	Western Union, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO SGS ROHS

Connector:

FC / UPC

Fiber Count:

Simplex 1 Core

Insertion Loss:

<0.3dB

Fiber Type:

G.652D Fiber

Package:

Plastic Bag With OEM Label

Cable Diameter:

0.9mm

Jacket:

LSZH

Connector Color:

Yellow, White

Temperature:

-40~+80°C

Customer Logo:

Yes

Product Name:

Fiber Optical Pigtall，fibre Optic Pigtail， Fo Pigtall，fiber Optik Pigtail

Customer Logo::

Yes

Packaging Details:

1 pc/ bag, 1500pcs / carton box

Supply Ability:

200,000 pcs per month

Highlight:

optical fiber pigtail

waterproof pigtail

Product Description

FC Pigtail SM LSZH 900um, Fiber Optic Pigtail FC Singl Mode 1.5M G652D

FC/ UPC Fiber Optic pigtail has connector at one end, the other end is fiber optic cable which

be cut off.Then it connect by splice with other cable core. It is widely used in fiber optic terminal

box, ODF rack , cabinet to connect with fiber optic media converter/transceivers( also use coupler,

patch cord too)

Single mode pigtail color is yellow, wavelength: 310nm and 1550nm, their transmission distance:

10km and 40km each.

Features

Conforms to ANSI, Bellcore,TIA/EIA,IEC,etc International and domestic standards
Fiber transmission active connection
Low insertion loss, high return loss
Good changeability and repeatability
Mostly used inside frame connection, simple, convenient and economical
Easy to install, small size, large capacity.

Application

Medical instruments
Industry and Army use
CATV network
LAN network
Fiber Access network
Telecommunications
Gigabit Data Network test

1.Technical Data

NO.	Item	Unit	Single Mode			Multi-Mode
1	Insertion Loss	dB	≤0.2	≤0.3		≤0.3
2	Return Loss	dB	≥50/UPC	≥45/PC	≥65/APC	≥35/PC
3	Repeatability	dB	0.1
4	Working Times	Times	≥1000
5	Operating Temperature	°C	-40-85
6	Optical Cable Diameter	mm	Φ0.9	Φ2.0		Φ3.0

2. Polish Data

Item	PC Polishing		APC Polishing
Ferrule Diameter(mm)	2.5	1.25	2.5	1.25
Radius of Cury(mm)	10 ~25	7~25	5~15
Fiber Height(nm)	-100~50		±50
Apex Offset(um)	±50		±50

Ordering Information:

FC/ PC SM 9/125 SIMPLEX 0.9mm–2M PVC

① ② ③ ④ ⑤ ⑥ ⑦

① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
