FTTH Optic Fiber Pigtail FC UPC SM Single Mode Simplex 900um LSZH 5M Yellow 1310nm

Brand Name: YINGDA
Model Number: FPC-BF12-62-09-12
MOQ: 100pcs
Price: negotiable
Delivery Time: 7days after payment
Payment Terms: Western Union, T/T
Detail Information
Place of Origin:
china
Certification:
ISO SGS ROHS
Connector:
FC /UPC ,FC/SPC
Fiber Count:
12 Cores
Insertion Loss:
<0.3dB
Fiber Type:
Single Mode
Package:
Plastic Bag / Bister Box
Cable Color:
Blue,pink,purple,orange,yellow,black,red,brown,aqua
Strength Member:
900um
Jacket:
LSZH, PVC
Product Name:
Fiber Optical Pigtall,fibre Optic Pigtail, Fo Pigtall,fiber Optik Pigtail
Customer Logo::
Yes
Packaging Details:
1 pc/ box,180pcs / carton box
Supply Ability:
100,000 pcs per month
Highlight:

waterproof pigtail

,

ribbon pigtail

Product Description

FTTH Optic Fiber Pigtail FC UPC SM Single Mode Simplex 900um LSZH 5M Yellow





Description

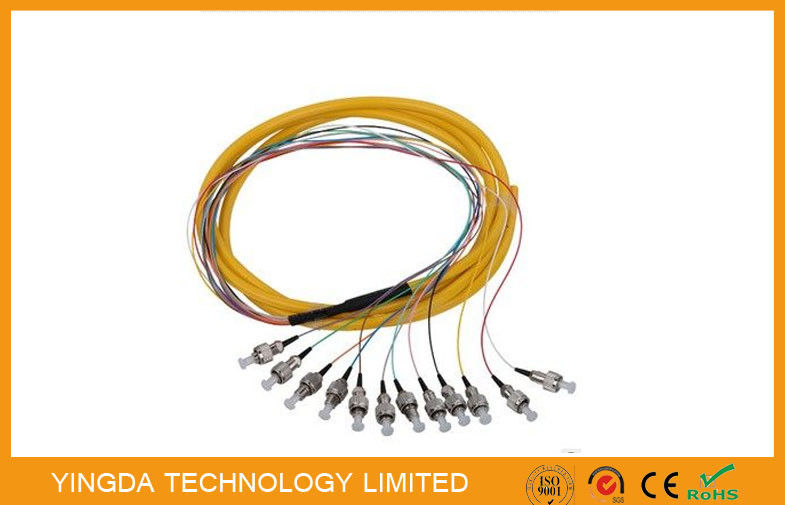

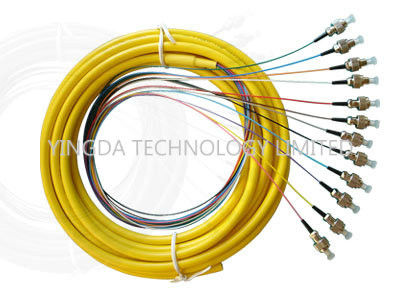

FC Bunchy pigtail, also called FC fiber optic bundle pigtail, only one end has connector FC, the other end

is a fiber cable which is cut off, it is connected with the other fiber core by fusion, often appear

in the optical fiber terminal box to connect the cable and terminal equipment.



It mainly have two types: single mode bunchy pigtails or multi-mode pigtails.SMF (single mode fiber )

is yellow, the wavelength: 1310nm and 1550nm, the transmission distance are respectively 10km and

 40km. It consists of 12pcs pigtails composition, color is as follows:

blue, orange, green, brown,gray, white, red, black, yellow, purple, pink, light blue.



Features

  1. Conforms to ANSI, Bellcore,TIA/EIA,IEC,etc International and domestic standards
  2. Fiber transmission active connection
  3. Low insertion loss, high return loss
  4. Good changeability and repeatability
  5. Mostly used inside frame connection, simple, convenient and economical
  6. Easy to install, small size, large capacity.
  7. Jumper diameters: 2.0mm, 0.9mm.
  8. Optical Indicators:
  9.    PC   insertion Loss ≤ 0.2dB ; reflection attenuation ≥ 50dB;
  10.    APC insertion loss ≤ 0.2dB ; Return Loss ≥ 60dB
  11. Fiber count: 4 core 6 core 8 core, 10 core, 12 core.
  12. Fan out fibers have a special tube protection from twisting off or injury,
  13. and good bending properties.
  14. Can use connectors like: FC / PC, FC / APC, SC / PC, SC / APC, ST / PC, etc



Optical Characteristics



Cable diameter

φ0.9mm, φ2.0mm, φ3.0mm

Insertion loss

≤0.2dB

Return loss

 PC≥40dB,UPC≥50dB,APC≥60dB

Interchange ability test

≤0.2dB

Mating times

>1000 times

Repeat ability

≤0.1dB

Vibration test

≤0.1dB(10-60Hz,1.5mm Full amplitude)

Tensile strength:

0~15Kg

temperature cycling test

≤0.2dB (-40℃~+85℃,after 5times recycle)

Low temperature test

≤0.2dB(-40℃,last 100 hours)

High temperature test

≤0.2dB (+85℃,last 100 hours)

Tensile test

≤0.1dB(0-15Hg tensile,φ0.9mm fiber exception)

Temperature test

≤0.2dB(+25℃~+65℃, relative humidity 93%, after 100hours)





Application

  • CATV/LAN network
  • Medical instruments
  • Industry and Army
  • Fiber Access network
  • Telecommunications
  • Gigabit Data Network test



Order information



FC / UPC fiber optic connector

  1. Polish method: PC UPC APC
  2. Fiber count: 2core, 4core, 6core, 8core, 12 core, etc
  3. Fiber type: G652D, G657A, G657A2, G655
  4. Cable type: OS1 SM, MM OM1, OM2, OM3 10G, OM4,etc
  5. Cable length: 1meter, 2meter, 3meter,.... Etc
  6. Package: Blister box, plastic bag, paper bubble bag

FTTH Optic Fiber Pigtail FC UPC SM Single Mode Simplex 900um LSZH 5M Yellow 1310nm 0FTTH Optic Fiber Pigtail FC UPC SM Single Mode Simplex 900um LSZH 5M Yellow 1310nm 1
