Patch Panel APC / FC Fiber Optic Pigtail / Patch Cords 8 Cores 12 Cores Green Tight Buffer
  • name
  • name
  • name

Patch Panel APC / FC Fiber Optic Pigtail / Patch Cords 8 Cores 12 Cores Green Tight Buffer

MOQ: 100pcs
Price: 0.16USD-19.9USD
Standard Packaging: 1 pc/ box,180pcs / carton box
Delivery Period: 7days after payment
Payment Method: Western Union, T/T
Supply Capacity: 100,000 pcs per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS ROHS
Model Number
FPC-BF12-09-12
Connector:
FC/APC
Fiber Count:
12 Cores
Insertion Loss:
<0.3dB
Fiber Type:
Single Mode
Package:
Plastic Bag / Bister Box
Cable Color:
Blue,pink,purple,orange,yellow,black,red,brown,aqua
Strength Member:
900um
Jacket:
LSZH, PVC
Product Name:
Fiber Optical Pigtall，fibre Optic Pigtail， Fo Pigtall，fiber Optik Pigtail
Customer Logo::
Yes
Highlight:

optical fiber pigtail

,

waterproof pigtail

Product Description

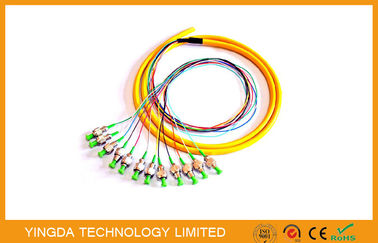

Patch Panel FC fiber optic pigtail, 12 Fibers pigtails FC/APC Green tight buffer





Description

FC Bunchy pigtail, also called FC fiber optic bundle pigtail, only one end has connector FC, the other end

is a fiber cable which is cut off, it is connected with the other fiber core by fusion, often appear

in the optical fiber terminal box to connect the cable and terminal equipment.



It mainly have two types: single mode bunchy pigtails or multi-mode pigtails.



FC connector outer is metal strength,most use in ODF distribution frame of Telecom network,

it has a nut to fix on the adapter,can be stable and dust-proof, but installation time will be

a little longer. FC connector, SC connector, connect GBIC fiber optical transceivers modules,

 its housing is rectangular, use bolt plug type to fix,no need rotate, most use in router or switch.



Features

  1. Conforms to ANSI, Bellcore,TIA/EIA,IEC,etc International and domestic standards
  2. Fiber transmission active connection
  3. Low insertion loss, high return loss
  4. Good changeability and repeatability
  5. Mostly used inside frame connection, simple, convenient and economical
  6. Easy to install, small size, large capacity.
  7. Jumper diameters: 2.0mm, 0.9mm.
  8. Optical Indicators:
  9.    PC   insertion Loss ≤ 0.2dB ; reflection attenuation ≥ 50dB;
  10.    APC insertion loss ≤ 0.2dB ; Return Loss ≥ 60dB
  11. Fiber count: 4 core 6 core 8 core, 10 core, 12 core.
  12. Fan out fibers have a special tube protection from twisting off or injury,
  13. and good bending properties.
  14. Can use connectors like: FC / PC, FC / APC, SC / PC, SC / APC, ST / PC, etc



Optical Characteristics



Cable diameter

φ0.9mm, φ2.0mm, φ3.0mm

Insertion loss

≤0.2dB

Return loss

 PC≥40dB,UPC≥50dB,APC≥60dB

Interchange ability test

≤0.2dB

Mating times

>1000 times

Repeat ability

≤0.1dB

Vibration test

≤0.1dB(10-60Hz,1.5mm Full amplitude)

Tensile strength:

0~15Kg

temperature cycling test

≤0.2dB (-40℃~+85℃,after 5times recycle)

Low temperature test

≤0.2dB(-40℃,last 100 hours)

High temperature test

≤0.2dB (+85℃,last 100 hours)

Tensile test

≤0.1dB(0-15Hg tensile,φ0.9mm fiber exception)

Temperature test

≤0.2dB(+25℃~+65℃, relative humidity 93%, after 100hours)





Application

  • CATV network
  • LAN network
  • Fiber Access network
  • Telecommunications
  • Gigabit Data Network test
  • Medical instruments
  • Industry and Army use



Order information



FC/APC fiber optic connector

  1. Polish method: PC UPC APC
  2. Fiber count: 2core, 4core, 6core, 8core, 12 core, etc
  3. Fiber type: G652D, G657A, G657A2, G655
  4. Cable type: OS1 SM, MM OM1, OM2, OM3 10G, OM4,etc
  5. Cable length: 1meter, 2meter, 3meter,.... Etc
  6. Package: Blister box, plastic bag, paper bubble bag

Patch Panel APC / FC Fiber Optic Pigtail / Patch Cords 8 Cores 12 Cores Green Tight Buffer 0
