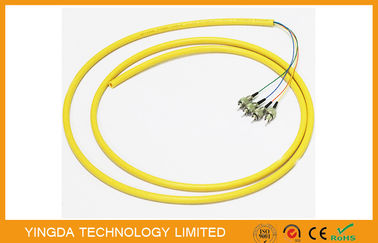

ODF Bunchy Fiber Optic Pigtail 4 Cores LSZH 0.9MM Yellow , Single Mode Pigtail

ODF Bunchy Fiber Optic Pigtail 4 Cores LSZH 0.9MM Yellow , Single Mode Pigtail
ODF Bunchy Fiber Optic Pigtail 4 Cores LSZH 0.9MM Yellow , Single Mode Pigtail ODF Bunchy Fiber Optic Pigtail 4 Cores LSZH 0.9MM Yellow , Single Mode Pigtail ODF Bunchy Fiber Optic Pigtail 4 Cores LSZH 0.9MM Yellow , Single Mode Pigtail

Large Image :  ODF Bunchy Fiber Optic Pigtail 4 Cores LSZH 0.9MM Yellow , Single Mode Pigtail

Product Details:
Place of Origin: SHENZHEN,CHINA
Brand Name: YINGDA
Certification: ISO SGS ROHS
Model Number: FPC-BF4-09-15
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: negotiable
Packaging Details: 1 pc/ box,180pcs / carton box
Delivery Time: 7days after payment
Payment Terms: Western Union, T/T
Supply Ability: 100,000 pcs per month

ODF Bunchy Fiber Optic Pigtail 4 Cores LSZH 0.9MM Yellow , Single Mode Pigtail

Description
Connector: FC/APC Fiber Count: 12 Cores
Insertion Loss: <0.3dB Fiber Type: Single Mode
Package: Plastic Bag / Bister Box Cable Color: Blue,pink,purple,orange,yellow,black,red,brown,aqua
Strength Member: 900um Jacket: LSZH,PVC
High Light:

optical fiber pigtail

,

ribbon pigtail

ODF Bunchy Pigtail FC / APC 4 Cores LSZH 0.9MM yellow, FC Fiber Optic Pigtail





Description

Bunchy pigtail, also called fiber optic bundle pigtail, only one end has connector, the other end

is a fiber cable which is cut off, it is connected with the other fiber core by fusion, often appear

in the optical fiber terminal box to connect the cable and terminal equipment.



It mainly have two types: single mode bunchy pigtails or multi-mode pigtails.



FC connector outer is metal strength,most use in ODF distribution frame of Telecom network,

it has a nut to fix on the adapter,can be stable and dust-proof, but installation time will be

a little longer.





Sell point:

  1. 100% test in factory before delivery
  2. Low insertion loss, high return loss
  3. Pre-terminated all kinds of connectors
  4. OEM or customer label acceptable



Application

  • CATV network
  • LAN network
  • Fiber Access network
  • Telecommunications
  • Gigabit Data Network test
  • Medical instruments
  • Industry and Army use



Features

  1. Conforms to ANSI, Bellcore,TIA/EIA,IEC,etc International and domestic standards
  2. Fiber transmission active connection
  3. Low insertion loss, high return loss
  4. Good changeability and repeatability
  5. Mostly used inside frame connection, simple, convenient and economical
  6. Easy to install, small size, large capacity.
  7. Jumper diameters: 2.0mm, 0.9mm.
  8. Optical Indicators:
  9.    PC   insertion Loss ≤ 0.2dB ; reflection attenuation ≥ 50dB;
  10.    APC insertion loss ≤ 0.2dB ; Return Loss ≥ 60dB
  11. Fiber count: 4 core 6 core 8 core, 10 core, 12 core.
  12. Fan out fibers have a special tube protection from twisting off or injury,
  13. and good bending properties.
  14. Can use connectors like: FC / PC, FC / APC, SC / PC, SC / APC, ST / PC, etc



Optical Characteristics



Cable diameter

φ0.9mm, φ2.0mm, φ3.0mm

Insertion loss

≤0.2dB

Return loss

 PC≥40dB,UPC≥50dB,APC≥60dB

Interchange ability test

≤0.2dB

Mating times

>1000 times

Repeat ability

≤0.1dB

Vibration test

≤0.1dB(10-60Hz,1.5mm Full amplitude)

Tensile strength:

0~15Kg

temperature cycling test

≤0.2dB (-40℃~+85℃,after 5times recycle)

Low temperature test

≤0.2dB(-40℃,last 100 hours)

High temperature test

≤0.2dB (+85℃,last 100 hours)

Tensile test

≤0.1dB(0-15Hg tensile,φ0.9mm fiber exception)

Temperature test

≤0.2dB(+25℃~+65℃, relative humidity 93%, after 100hours)



Order information



FC fiber optic connector

  1. Polish method: PC UPC APC
  2. Fiber count: 2core, 4core, 6core, 8core, 12 core, etc
  3. Fiber type: G652D, G657A, G657A2, G655
  4. Cable type: OS1 SM, MM OM1, OM2, OM3 10G, OM4,etc
  5. Cable length: 1meter, 2meter, 3meter,.... Etc
  6. Package: Blister box, plastic bag, paper bubble bag

ODF Bunchy Fiber Optic Pigtail 4 Cores LSZH 0.9MM Yellow , Single Mode Pigtail 0

ODF Bunchy Fiber Optic Pigtail 4 Cores LSZH 0.9MM Yellow , Single Mode Pigtail 1

ODF Bunchy Fiber Optic Pigtail 4 Cores LSZH 0.9MM Yellow , Single Mode Pigtail 2
