| Brand Name: | YINGDA |
| Model Number: | FPG-FC-12-09-15 |
| MOQ: | 50 pcs |
| Price: | negotiable |
| Delivery Time: | 7days after payment |
| Payment Terms: | Western Union, T/T |

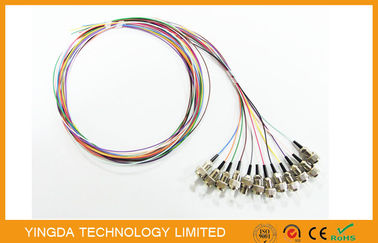

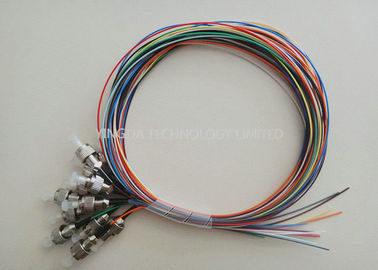

Optical Fiber Pigtails 12 Cores FC / UPC, FC Fiber Optic Pigtail SM LSZH 0.9mm
12Colorful multi-core cable (4 core, 6 core, 8 core, 12 core) fan-out( or bundle) with connectors,
suitable for convenient indoor connectivity and distribution frames (ODF) intensive installation.
Feature
Jumper types: 2.0mm, 0.9mm.
Indicators PC : Insertion Loss ≤ 0.2dB ; reflection attenuation ≥ 50dB;
APC insertion loss ≤ 0.2dB ; Return Loss ≥ 60dB
Fiber: 4 core 6 core 8 core, 10 core, 12 core.
Fan out fiber have a special casing protection from twisting off or injury,
and good bending properties.
With FC / PC, FC / APC, SC / PC, SC / APC, ST / PC connectors
Ribbon fiber straightly separate into to single-core wiring pigtails.
Mostly used in frame connection, simple, convenient and economical
Easy to install, small size, large capacity.
Specification (for single mode)
|
Parameter |
PC |
UPC |
APC |
|
Insertion loss(dB) |
≤0.30 |
||
|
Repeatability(dB) |
≤0.10 |
||
|
Interchangeability(dB) |
≤0.10 |
||
|
Return loss(dB) |
≥50 |
≥55 |
≥60 |
|
Mating times |
≥500 |
||
|
Operating temperature(°C) |
-40- +75 |
||
|
Fiber |
G652.G655 |
||
|
Fiber length (M) |
3.5.7.10 (in terms of customer demands) |
||
Order information
|
Connector |
Fiber type |
Cable diameter |
Cable jacket |
Length |
|
LC/UPC |
9/125um |
0.9mm simplex |
PVC |
0.5m |
|
LC/APC |
50/125um |
1.8mm simplex |
LSZH |
1m |
|
FC/UPC |
62.5/125um |
2.0simplex |
|
3m |
|
FC/APC |
50/125um OM3 |
3.0mm simplex |
|
5m |
|
SC/UPC |
50/125um OM4 |
1.8mm duplex |
|
... |
|
SC/APC |
|
2.0mm duplex |
|
|
|
ST/UPC |
|
3.0mm duplex |
|
|
|
MTRJ/female |
|
3.0mm round |
|
|
|
MTRJ/male |
|
... |
|
|
|
MU/UPC |
|
|
|
|
|
MU/APC |
|
|
|
|
|
E2000 |
|
|
|
|
|
|
