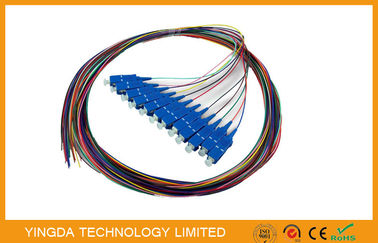

SC / UPC SC / PC Multi Core Fiber Optic Pigtail cables 12 Core 0.9mm

SC / UPC SC / PC Multi Core Fiber Optic Pigtail cables 12 Core 0.9mm

  • High Light

    optical fiber pigtail

    ,

    ribbon pigtail

  • Connector
    SC/APC
  • Fiber Count
    12 Cores
  • Insertion Loss
    <0.3dB
  • Fiber Type
    Singlemode 9/125um OS2
  • Package
    Plastic Bag / Bister Box
  • Cable Color
    12 Color: Black, White, Red,yellow,orange,grey,purple
  • Strength Member
    Indoor Cable 0.9mm
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS ROHS
  • Model Number
    FPG-SCA-12-09-15
  • Minimum Order Quantity
    50 pcs
  • Price
    negotiable
  • Packaging Details
    1 pc/ box,180pcs / carton box
  • Delivery Time
    7days after payment
  • Payment Terms
    Western Union, T/T
  • Supply Ability
    60,000 pcs per month

SC / UPC SC / PC Multi Core Fiber Optic Pigtail cables 12 Core 0.9mm

12 Fibers SC / UPC SC / PC Multi Core Fiber Optic Pigtail, Fiber Pigtail SC 12 Cores



Separate multi-core cable (4 core, 6 core, 8 core, 12 core) fan-out( or bundle)

with connectors,suitable for convenient indoor connectivity and

distribution frames (ODF) intensive installation.



Feature

  1. Ribbon fiber straightly separate into to single-core wiring pigtails.
  2. Mostly used in frame connection, simple, convenient and economical
  3. Easy to install, small size, large capacity.
  4. Jumper types: 2.0mm, 0.9mm.
  5. Indicators PC : Insertion Loss ≤ 0.2dB ; reflection attenuation ≥ 50dB;
  6. APC insertion loss ≤ 0.2dB ; Return Loss ≥ 60dB
  7. Fiber: 4 core 6 core 8 core, 10 core, 12 core.
  8. Fan out fiber have a special casing protection from twisting off or injury,
  9. and good bending properties.
  10. With FC / PC, FC / APC, SC / PC, SC / APC, ST / PC connectors

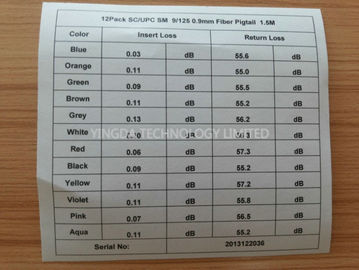

Specification (for single mode)



Parameter

PC

UPC

APC

Insertion loss(dB)

≤0.30

Repeatability(dB)

≤0.10

Interchangeability(dB)

≤0.10

Return loss(dB)

≥50

≥55

≥60

Mating times

≥500

Operating temperature(°C)

-40- +75

Fiber

G652.G655

Fiber length (M)

3.5.7.10 (in terms of customer demands)





Order information:



Fiber count: 2core, 4core, 6 core, 8core, 12core, 24core,etc

Cable type: G652D SM, OM1, OM2, OM3, OM4

Cable length: 1m, 2m,3m, etc.

Polish mode: UPC PC APC
