| Brand Name: | YINGDA |
| Model Number: | FPG-SCA-12-09-15 |
| MOQ: | 50 pcs |
| Price: | negotiable |
| Delivery Time: | 7days after payment |
| Payment Terms: | Western Union, T/T |

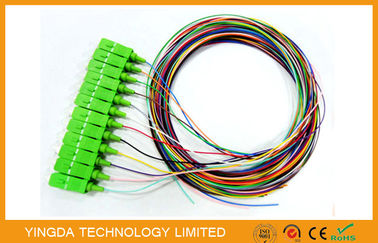

12 Fibers SC / APC Multi Core Fiber Optic Pigtail, SC Fiber Pigtail 1.5M 0.9mm
SC/APC 12 Colored multi fiber Pigtail allows quick high performance field fusion splice
during installation to provide the lowest installed cost, 900μm tight-buffered fibers break
out to terminated colored buffers for quick and easy identification of separate
Application
Specification
|
Parameter |
Unit |
FC, SC, LC |
ST, MU |
MT-RJ, MPO |
E2000 |
||||||||
|
SM |
MM |
SM |
MM |
SM |
MM |
SM |
|||||||
|
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
|
Insertion loss (typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
|
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
|
Operating wavelength |
nm |
1310, 1510 |
1310, 1510 |
1310, 1510 |
1310, 1510 |
||||||||
|
Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
|
Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
|
Operating temperature |
℃ |
-40~75 |
-40~75 |
-40~75 |
-40~75 |
||||||||
|
Storage temperature |
℃ |
-45~85 |
-45~85 |
-45~85 |
-45~85 |
||||||||
|
Cable diameter |
mm |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
||||||||
Ordering Information:
FC/ PC SM 9/125 SIMPLEX 0.9mm–2M PVC
① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH,
Two package method:
TYPE 1: Blister box
TYPE 2: paper card bubber bag
|
|
| Brand Name: | YINGDA |
| Model Number: | FPG-SCA-12-09-15 |
| MOQ: | 50 pcs |
| Price: | negotiable |
| Packaging Details: | 1 pc/ box,180pcs / carton box |
| Payment Terms: | Western Union, T/T |

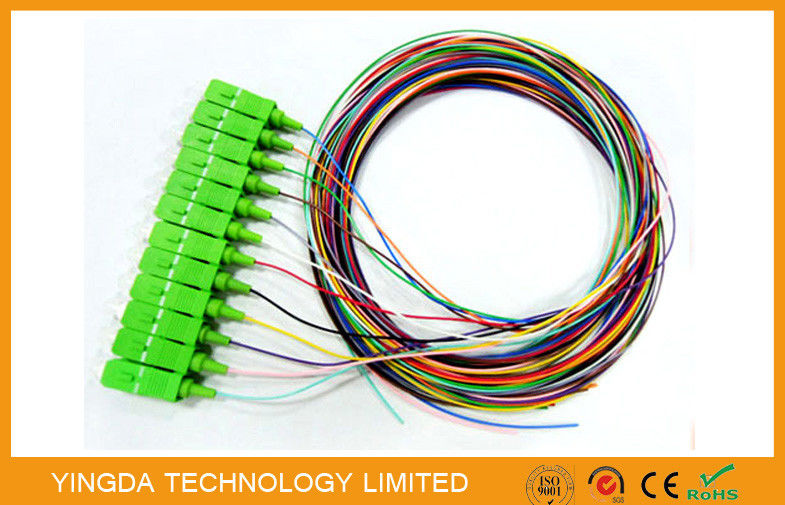

12 Fibers SC / APC Multi Core Fiber Optic Pigtail, SC Fiber Pigtail 1.5M 0.9mm
