| Brand Name: | YINGDA |
| Model Number: | FPG-SCADX-06-15 |
| MOQ: | 50 pcs |
| Price: | negotiable |
| Delivery Time: | 7days after payment |
| Payment Terms: | Western Union, T/T |

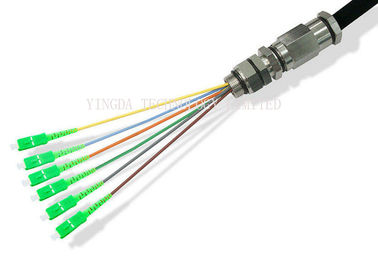

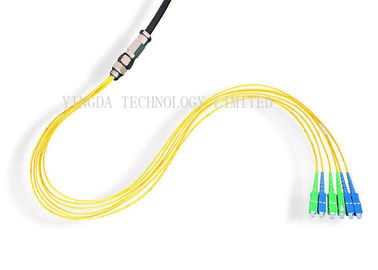

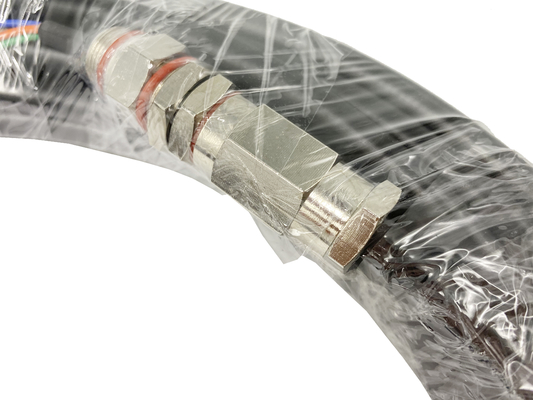

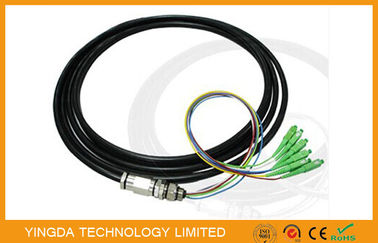

SC/APC Waterproof Fiber Optic Pigtail Patch Cord Cable Outdoor LSZH 15 Meter 0.9mm
Waterproof pigtail cable is to connect the backbone optical cable and optical receiver.
It is made of high quality connector components and high quality waterproof cable and
anti-corrosion parts. Its is mainly used for field optical transceiver access, strong adaptability
to the environment, one end with an optical connector and durable waterproof metal or
aluminum connector. The installation is convenient, reliable, can resist all kinds of harsh
environment and long service life, outer jacket high toughness, high tensile strength,good
grounding device. According to customer requirements, can be assembled connector like:
FC, SC, ST, LC, MU, SMA,etc.
Application
Features
Technical parameters
|
Item |
Test condition |
Single mode |
Multimode |
||
|
Optical characteristics |
Insertion loss |
UPC |
SM:1310nm/1550nm MM:850nm/1300nm |
≤0.2dB |
≤0.3dB |
|
APC |
1310nm/1550nm |
≤0.3dB |
|
||
|
Return loss |
UPC |
SM:1310nm/1550nm MM:850nm/1300nm |
≥55 dB |
≥35 dB |
|
|
APC |
1310nm/1550nm |
≥65 dB |
|
||
|
mechanical properties (additional loss) |
Impact test |
1.8 height,8times |
<0.1 dB |
<0.1 dB |
|
|
Vibration test |
10-60Hz,1mm Full amplitude |
<0.1 dB |
<0.1 dB |
||
|
Plug life |
1000 times |
<0.1 dB |
<0.1 dB |
||
|
Tensile strength |
>100N |
<0.1 dB |
<0.1 dB |
||
|
Environmental characteristics (additional loss)
|
High and low temperature cycling test |
－25℃～＋70℃,2 recycle |
<0.2 dB |
<0.2 dB |
|
|
High temperature test |
+80℃,2hours |
<0.2 dB |
<0.2 dB |
||
|
Low temperature test |
-40℃,2hours |
<0.2 dB |
<0.2 dB |
||
|
Damp heat test |
+40℃,90-95% RH,2hours |
<0.2 dB |
<0.2 dB |
||
Order information
|
Connector |
FC,ST,SC,LC,MU,MPO,E2000,SMA etc |
|
End face: |
PC,UPC,APC |
|
Cable diameter |
Ф0.9,Ф2,Ф3 |
|
Fiber count |
1core,2core,4core,6core,8core,12core,etc |
|
Fiber type |
G652B, G652D, G655, G657A, G657A2, 50/125, 62.5/125,OM3(50/125-150), OM4(50/125-300), etc |
|
Connector color |
blue, beige, green,aqua |
|
Boot color |
gray, blue, white, red, black, green |
|
Cable length |
on customer request |
|
|
