PC 6 Ports  Fiber Cable Joint Box , Inline Splitter Fiber Optic Distribution Box

PC 6 Ports Fiber Cable Joint Box , Inline Splitter Fiber Optic Distribution Box

  • High Light

    fiber optic cable junction box

    ,

    fiber optic cable joint box

  • Cable Ports
    3in 3out
  • Cable Diameter
    6×Ø20 Mm
  • Color
    Black
  • Dimension
    504*250*127mm
  • Installation Method
    Wall Mount, Pole Mount, Manhole, Underground,aerial
  • Splitter
    1 Pc 1:16 Module PLC Splitter Box Type
  • Adapter
    16pcs SC
  • Max Capacity
    48 Cores
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS CE ROHS
  • Model Number
    GJS-2008
  • Minimum Order Quantity
    100PCS
  • Price
    NEGOTIABLE
  • Packaging Details
    1 pc / box, 6 pcs/ carton box
  • Delivery Time
    5-8 working days
  • Payment Terms
    Western Union, T/T, L/C

PC 6 Ports Fiber Cable Joint Box , Inline Splitter Fiber Optic Distribution Box

48 Fibres Inline Splitter Closure, PC 6 Ports Adapter Splitter Box





(FOSC), also called fiber optic junction box or enclosures. It is the cable terminated

access point, then connect with optical switch through the optical fiber jumper.



Sell point:

1. Max splitter: 1x16 PLC splitter mini module 0.9mm cable.

2. Inline closure, cable gland sealing with rubber inside

3. PC material, max. 48 fibers.

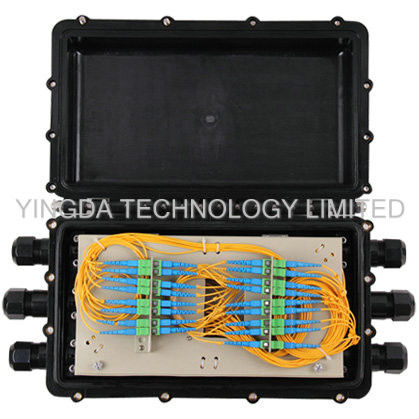

4. Max. 16 pcs SC adapters, have adapter panel inside.

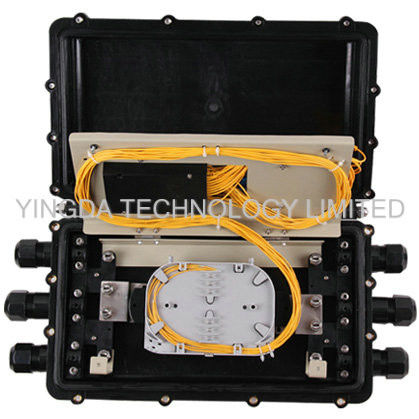

5. 1tray for welding, 1 tray for splitter module.

6. 100% test PLC splitter, with test report inside.

7. Cable ports: 6round ports, diameter 20mm, each side 3pcs

8. OEM customer label ok.



 Features:

  • The closure adopts horizontal mechanical sealing and advanced internal structure design.
  • It can be installed one 1:16 module PLC splitter.
  • There are different drop cable elements to be chosen (Φ5 ,2*3) to input/output
  • (special type can be customized).
  • The closure is spacious enough for winding and storing fibers.
  • The patented sealing structure keep good sealing performance after
  • re-entry and re-using.
  • It could save the installation time and improve work efficiently.



Applications

  • Suitable for bunchy fibers
  • Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
  • It’s especially applicable to FTTH optical fiber distribution

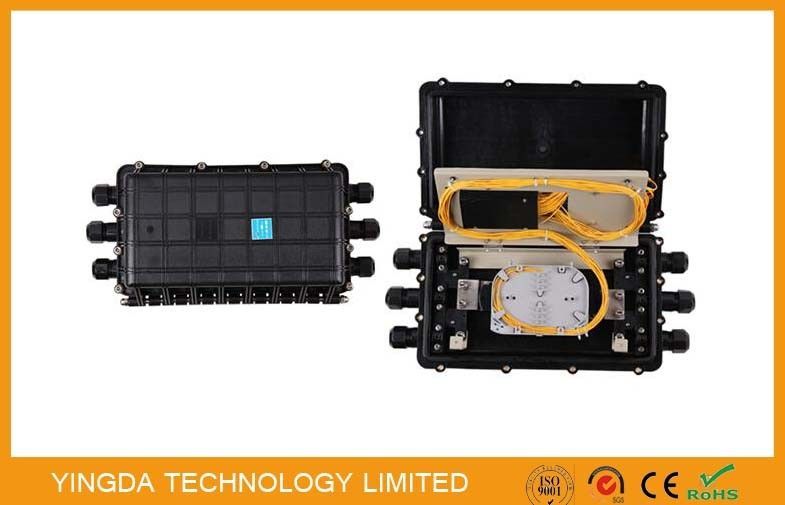

 PC 6 Ports  Fiber Cable Joint Box , Inline Splitter Fiber Optic Distribution Box 0

Specifications



Model no.

Splice Tray

Capacity

Splitter Tray(Box

Type PLC Splitter)

Number of

adapters

Max.

Capacity

Cable Dia.

GJS-2008

(Bunchy)

12-24F

per tray

1 pc 1:16

16

48F

6round ports:

8-20mm



More product show:

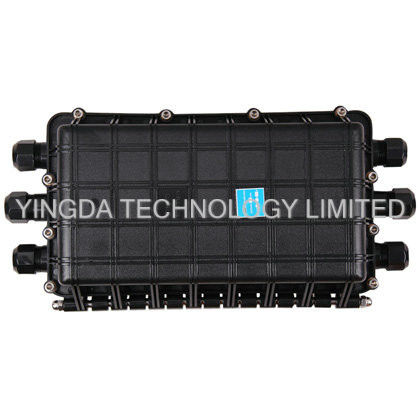

PC 6 Ports  Fiber Cable Joint Box , Inline Splitter Fiber Optic Distribution Box 1
