Aerial Fiber Optic Splitter Box For 1*8 1*16 Plc Splitter Module / Fiber Optic Junction Box

Aerial Fiber Optic Splitter Box For 1*8 1*16 Plc Splitter Module / Fiber Optic Junction Box

  • High Light

    fiber optic cable junction box

    ,

    fiber optic cable joint box

  • Cable Ports
    6round Ports
  • Cable Diameter
    6×Ø20 Mm
  • Color
    Black
  • Dimension
    504x250x195mm
  • Installation Method
    Wall Mount, Pole Mount, Manhole, Underground,aerial
  • Splitter
    Max. 1x32 Splitter Mini Module 0.9mm Type
  • Adapter
    48 FC adapters, 60 SC/ST/LC adapters
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO SGS CE ROHS
  • Model Number
    FOSC-SH09
  • Minimum Order Quantity
    100PCS
  • Price
    NEGOTIABLE
  • Packaging Details
    1 pc / box, 4 pcs/ carton box
  • Delivery Time
    5-8 working days
  • Payment Terms
    Western Union, T/T, L/C

Aerial Fiber Optic Splitter Box For 1*8 1*16 Plc Splitter Module / Fiber Optic Junction Box

Fiber Optic Inline Splice Closures For 1*8 1*16 Plc Splitter Module







Description



Optical fiber splice closure (FOSC), also called fiber optic junction box or enclosures.

 It is the cable terminated access point, then connect with optical switch through the

optical fiber jumper.





Usage:

  1. Suitable for various cable overhead(aerial), pipeline, wall mount, pole mount, manhole,
  2. underground direct buried laying mode and branch connection.
  3. Suitable for structure cable in the termination computer room.
  4. The FOSC closure is usually suitable for indoor or outdoor non-open use, not suitable for outdoor open use, if you want to use like this,
  5. should take protective measures.
  6. Working temperature: indoor type: -5 ~+40 degree; outdoor type: -20 -+60 degree.





Features

  • The closure adopts horizontal mechanical sealing and advanced internal structure design
  • To adopt engineering PC plastic with high-strength to make the closure has longer life time
  • and excellent sealing performance
  • The closure is spacious enough for winding and storing fibers
  • The patented sealing structure keep good sealing performance after re-entry and re-using
  • It is multi-functions,with different PLC splitter and adaptor panels,it could work for branch splicing, splitting and patching
  • It could save the installation time and improve work efficiently



Applications

  1. Suitable for bunchy fibers
  2. Aerial,underground,wall-mounting,hand hole-mounting and duct-mounting
  3. It is especially applicable to FTTH optical fiber distribution



Structure drawing

Aerial Fiber Optic Splitter Box For 1*8 1*16 Plc Splitter Module / Fiber Optic Junction Box 0



Specification



Model

FOSC-SH09

Size (mm) LxWxH

504x250x195

Max. Capacity

1-3pcs of 011# tray (12/24fiber)

Cable ports

6ports

Max. Cable diameter

6×Ø20

Adapter and holes of Front Panel

1pc of adapter panel which can accommodate

48 FC adapters/60 SC/ST/LC adapters





More product show:

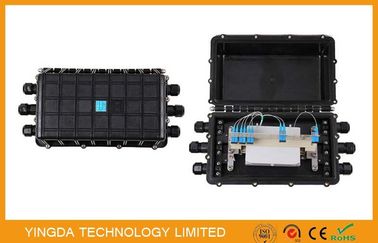

Aerial Fiber Optic Splitter Box For 1*8 1*16 Plc Splitter Module / Fiber Optic Junction Box 1
