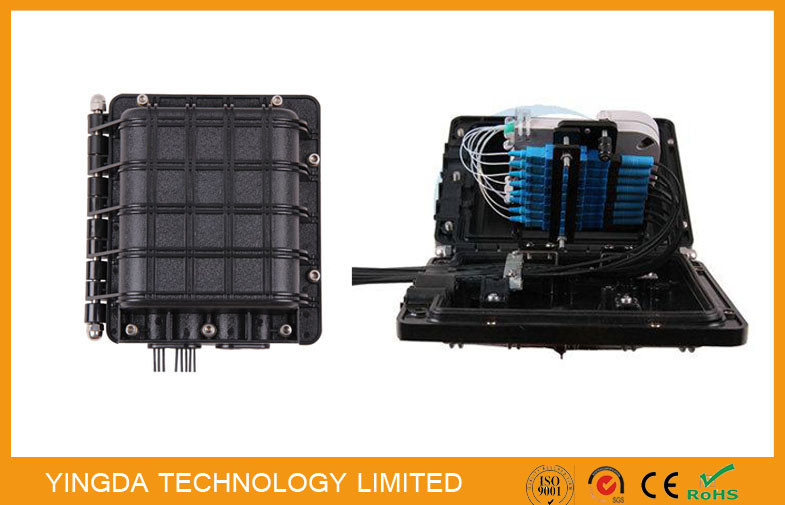

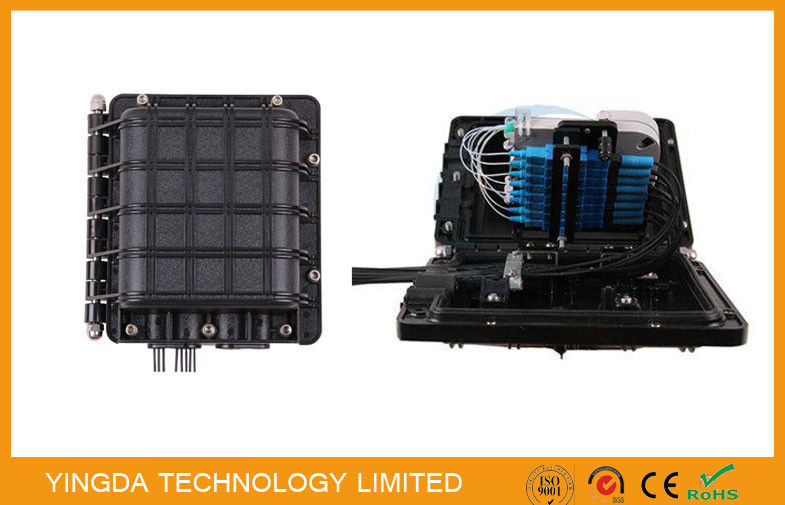

Man Hole Horizontal underground Fiber Optic Splitter Box , 1x4 Splitter Case

MOQ: 100PCS
Price: NEGOTIABLE
Standard Packaging: 1 pc / box, 6 pcs/ carton box
Delivery Period: 5-8 working days
Payment Method: Western Union, T/T, L/C
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS CE ROHS
Model Number
FOSC-SH19
Cable Input:
2 Round Ports 8-20mm
Cable Diameter:
1:13mm; 1:20mm
Cable Output:
8out ( Ftth Drop Cable 2*3.0mm )
Color:
Black
Dimension:
217*200*89mm
Installation Method:
Wall Mount, Pole Mount, Manhole, Underground,aerial
Splitter:
Max. 1x4 Splitter Mini Module 0.9mm Type
Adapter:
Max. 4 Pcs SC Adapters
Max Capacity:
24 Fibers
Highlight:

fiber optic cable junction box

,

fiber optic cable joint box

Product Description

Man Hole Horizontal Fiber Optic Splitter Box, 1x4 Splitter Enclosure





Sell point:

  • Max splitter: 1x4 PLC splitter mini module 0.9mm cable.
  • Inline closure, mechanical sealing.
  • PC material, max. 24fibers.
  • Max. 8pcs SC adapters, have adapter panel inside.
  • 1tray for welding, 1 tray for splitter.
  • 100% test PLC splitter, with test report inside.
  • Cable ports: 2in (outdoor cable) ,8out ( ftth drop cable )



Features



  1. The closure adopts horizontal mechanical sealing and advanced internal structure design
  2. To adopt engineering PC plastic with high-strength to make the closure has longer life time and excellent sealing performance
  3. The closure is spacious enough for winding and storing fibers
  4. The patented sealing structure keep good sealing performance after re-entry
  5. and re-using
  6. It is multi-functions, with different PLC splitter and adaptor panels, it could work
  7. for branch splicing,
  8. splitting and patching
  9. It could save the installation time and improve work efficiently



Applications

  1. Suitable for bunchy fibers
  2. Aerial,underground,wall-mounting,hand hole-mounting and duct-mounting
  3. It is especially applicable to FTTH optical fiber distribution



Structure drawing

 Man Hole Horizontal underground Fiber Optic Splitter Box , 1x4 Splitter Case 0



 FOSC-SH19 Fiber Optic Splice Closures Datasheet



Model

Splice tray

capacity

Max. Capacity

Splitter tray

(Blockless plc splitter)

Adapter

quantity

FOSC-SH19

12fiber

24fiber

1pc 1x2 or 1x4PLC

8pcs SC





More product show:

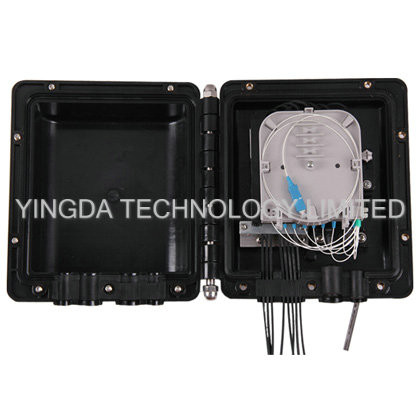

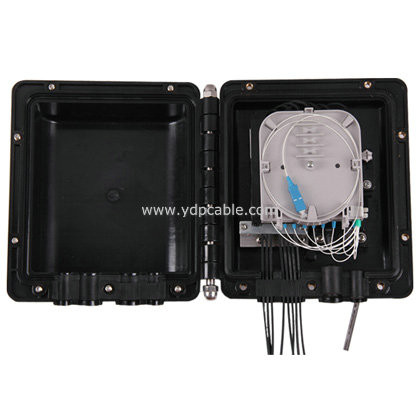

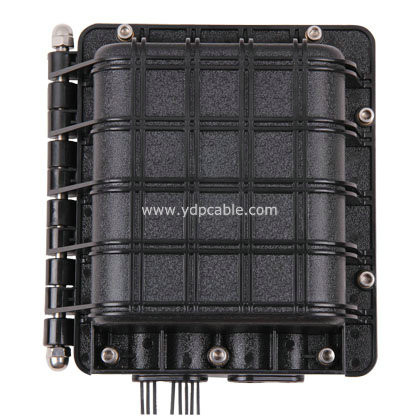

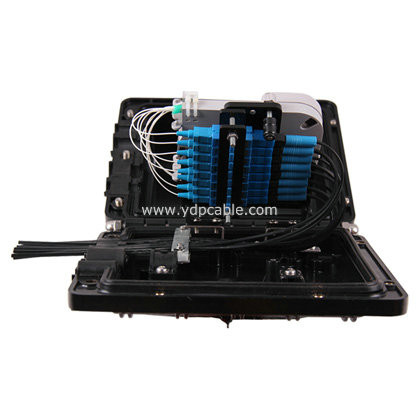

Man Hole Horizontal underground Fiber Optic Splitter Box , 1x4 Splitter Case 1
