Black Inline fibre Optic Splitter Box , Hole - mounting 1*8 Fiber Optic Splice Closure ( FOSC )
  • name
  • name
  • name
  • name
  • name
  • name
  • name

Black Inline fibre Optic Splitter Box , Hole - mounting 1*8 Fiber Optic Splice Closure ( FOSC )

MOQ: 100PCS
Price: NEGOTIABLE
Standard Packaging: 1 pc / box, 8 pcs/ carton box
Delivery Period: 5-8 working days
Payment Method: Western Union, T/T, L/C
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO SGS CE ROHS
Model Number
FOSC-SH01
Cable Input:
6 Round Ports 8-20mm
Cable Diameter:
2:13mm; 2:16mm; 2:20mm
Cable Output:
8 Pcs Drop Cable 2*3mm Outlet
Color:
Black
Dimension:
295*202*81mm
Installation Method:
Wall Mount, Pole Mount, Manhole, Underground,aerial
Splitter:
Max. 1x8 Splitter Mini Module 0.9mm Type
Adapter:
Max. 8 Pcs SC Adapters
Max Capacity:
8 Cores
Highlight:

fiber optic cable junction box

,

fiber optic cable joint box

Product Description

Inline Fiber Optic Splitter Box Closure, 1*8 Outdoor Splitter Closure





Description



Optical fiber splice closure (FOSC), also called fiber optic junction box or enclosures.

It is the cable terminated access point, then connect with optical switch through the

optical fiber jumper.



The fiber optic enclosure can resist the nature of heat and cold, light, oxygen and microbial

material aging, and has excellent mechanical strength. The solid closure housing and main

components  are able to bear the worst environmental change, also it is flame retardant,

waterproof function, so as t protect the cable from the vibration, impact, stretch and twist.





Features

  1. Advanced internal structure design.
  2. Easy to re-enter, it never requires re-entry tool it.
  3. The closure is spacious enough for winding and storing fibers.
  4. Fiber Optic Splice Trays are design in SLIDE-IN-LOCK and its opening angle is about 90°.
  5. The curved diameter meets with international standard.
  6. Easy and fast to increase and reduce splice tray.
  7. Straight-through for un-cutted and branching for cutting the fiber.
  8. There are 2*3 drop cable elements to be chosen Max.16 pcs drop cable input/output.
  9.  It can be installed Max. one 1:8 block-less PLC splitter.
  10. Lay adapters suit for FTTH and easy to operate.



Applications

  • Suitable for bunchy fibers
  • Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
  • FTTH optical fiber distribution



Specification



Model

FOSC-SH01 (single fiber)

Max capacity

8F

Splice tray capacity

8F

Splitter tray (Box type PLC)

1:8 PLC splitter

Adapter qty

8 SC

Cable Diameter

2round port:13mm

2round port:16mm

2round ports:20mm

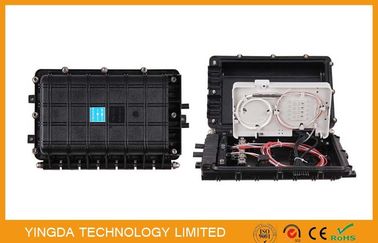

Product Structure:

Black Inline fibre Optic Splitter Box , Hole - mounting 1*8 Fiber Optic Splice Closure ( FOSC ) 0



More product show:

Black Inline fibre Optic Splitter Box , Hole - mounting 1*8 Fiber Optic Splice Closure ( FOSC ) 1
