Fiber Optic Adapter
Created with Pixso. Plastic MPO Fiber Optic Adapter For Communication System Base Station / ODF / MPO Box

Plastic MPO Fiber Optic Adapter For Communication System Base Station / ODF / MPO Box

Brand Name: YINGDA
Model Number: MPO MTP-OM4
MOQ: 10PCS
Price: 0.04USD-2.15USD
Detail Information
Place of Origin:
china
Certification:
ISO,SGS
Color:
Black, Green, Aqua, Purple ,etc
Material:
Plastic PC ABS
Connector:
MPO MTP Adaptor
Fiber Count:
12 Fiber, 24 Fibers
Product Name:
Mpo To Mpo Cable,mpo To Lc Cable, Mtp Optical Connector,mtp Cassette
Packaging Details:
1pc / box
Highlight:

Communication Station MPO Fiber Optic Adapter

,

PBT MPO Fiber Optic Adapter

,

ODF MPO Fiber Optic Adapter

Product Description

MPO MTP Fiber Optic Adapter Coupler 12Fiber OM4 for Data Center Patching System



MPO MTP Fiber Optic Adapter Coupler 12Fiber 24Fiber OM3 Green Aqua Purple Black


YINGDA MPO fiber optic adapter connetion is different with the simplex SC adapter, SC fiber optic adapter has ceramic sleeve inside,
which makes the core connection for precise alignment, but MPO adapter connect according to the end surface 2pcs guide hole and
guid pin whose diameter is 0.7mm. So MPO adapter don't have singlemode or multimode, but SC fiber optic adapter have due to
different sleeve. MPO adapter is widely used in communication system base station, building room fiber distribution (ODF), MPO box,
a variety of test instruments.

12/24 core single mode multimode general use MPO/MTP fiber adapter is the manufacturer sell direct, standard delivery time:
2days -3days.Color can be customized according to customer requirements, non quality problems do not accept returns, specific
problems please contact customer service online or telephone: 18688982406 to make order or consult. We will take the highest
quality service, the quickest technical support to help the parents complete the order.

Features

  • Good repeat ability, repeat >500times
  • Low insertion loss
  • High reliability
  • Variety of kinds
  • Meet RoSH requirements

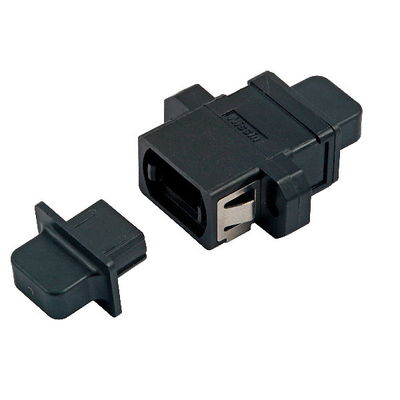

Adapter Structure

Plastic MPO Fiber Optic Adapter For Communication System Base Station / ODF / MPO Box 0

Specification

Connector

MPO / MTP

Color

Black / aqua

Test wavelength

1310nm, 1550nm, 850nm, 1300nm

Insertion loss

typical<0.20dB, maximum< 0.30dB

Repeat ability

≤0.10dB

Interchangeable

≤0.20dB

Plug performance

Plug 500 times, <0.20dB

Adapter material

Plastic PC

Working temperature

0℃ to +70℃

Storage temperature

-40℃ to +85℃

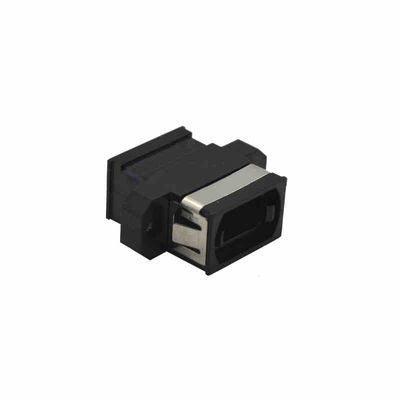

Plastic MPO Fiber Optic Adapter For Communication System Base Station / ODF / MPO Box 1
---------------------------------------------------------------------------------------------------------------------------------------------

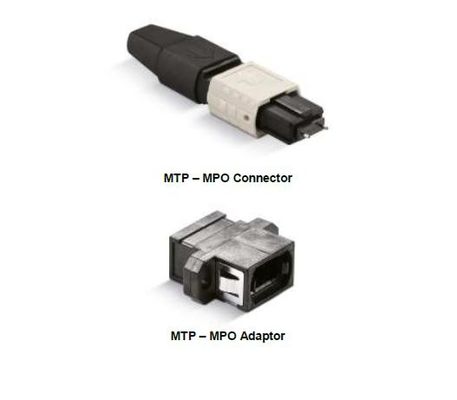

Plastic MPO Fiber Optic Adapter For Communication System Base Station / ODF / MPO Box 2
---------------------------------------------------------------------------------------------------------------------------------------------
Application

  • Test instruments
  • The fiber link test
  • The connection between the equipment
  • The connection between the MPO - jumper
  • The cable TV network, metropolitan area network,
  • wide area network, FTTX

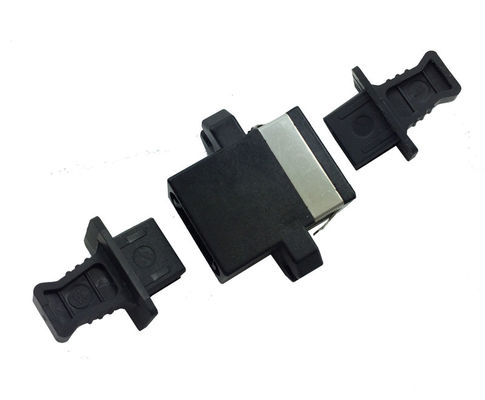

Plastic MPO Fiber Optic Adapter For Communication System Base Station / ODF / MPO Box 3

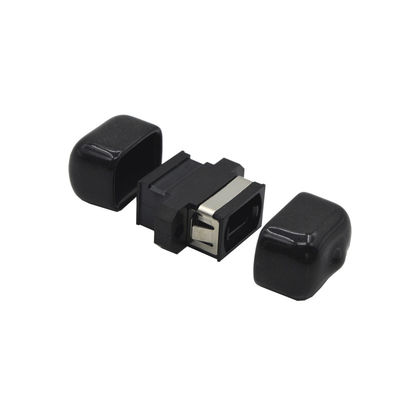

Plastic MPO Fiber Optic Adapter For Communication System Base Station / ODF / MPO Box 4

Plastic MPO Fiber Optic Adapter For Communication System Base Station / ODF / MPO Box 5

Plastic MPO Fiber Optic Adapter For Communication System Base Station / ODF / MPO Box 6
