Green LC/APC Duplex SM Fiber Optic Adapter With Shutter , No Flange
  • Name
  • Name
  • Name
  • Name

Green LC/APC Duplex SM Fiber Optic Adapter With Shutter , No Flange

MOQ: 100PCS
Price: 0.04USD-2.15USD
Standard Packaging: 25pcs/box
Delivery Period: 5-8 working days
Payment Method: T/T, Western Union
Supply Capacity: 200K per month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
LC Duplex
House Material:
ABS
Color:
Green
Fiber Count:
Duplex
Sleeve Material:
Ceramics
Fiber Type:
Single Mode
Flange:
No Flange
Shutter:
Yes
Polish Mode:
APC
Product Name:
Mpo To Mpo Cable,mpo To Lc Cable, Mtp Optical Connector,mtp Cassette
Highlight:

fiber optic coupler

,

bare fiber adapter

Product Description

LC/APC Duplex SM Fiber Optic Adapter With Shutter, No Flange



This coupler provides a solution for extending a current run of fiber optic cabling. This coupler is constructed from high-grade plastic and has been designed and engineered for durability and a long life.



Features

  • Telcordia GR-326, IEC, TIA/EIA Standard compliant.
  • 100% Optical performance inspection.
  • Low Insertion Loss.
  • RoHS Compliance.
  • Customized design and production.



Specification

Item Material Remarks
Sleeve Zirconia, PB
Housing PC Flammability UL94 V-0
Dust cap PVC Flammability UL94 V-0
Shutter ABS Flammability UL94 V-0
Metal Clip Stainless steel
Optical performance P Grade S grade
Insertion Loss ≤0.1dB ≤0.2dB
Durability 1000 times 1000 times

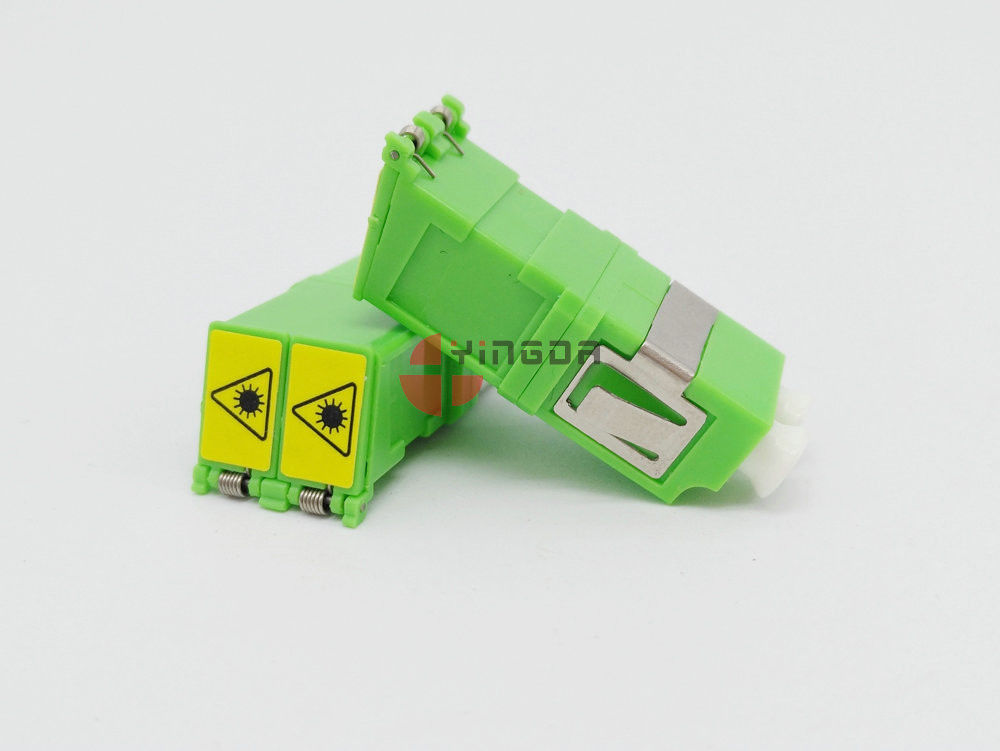

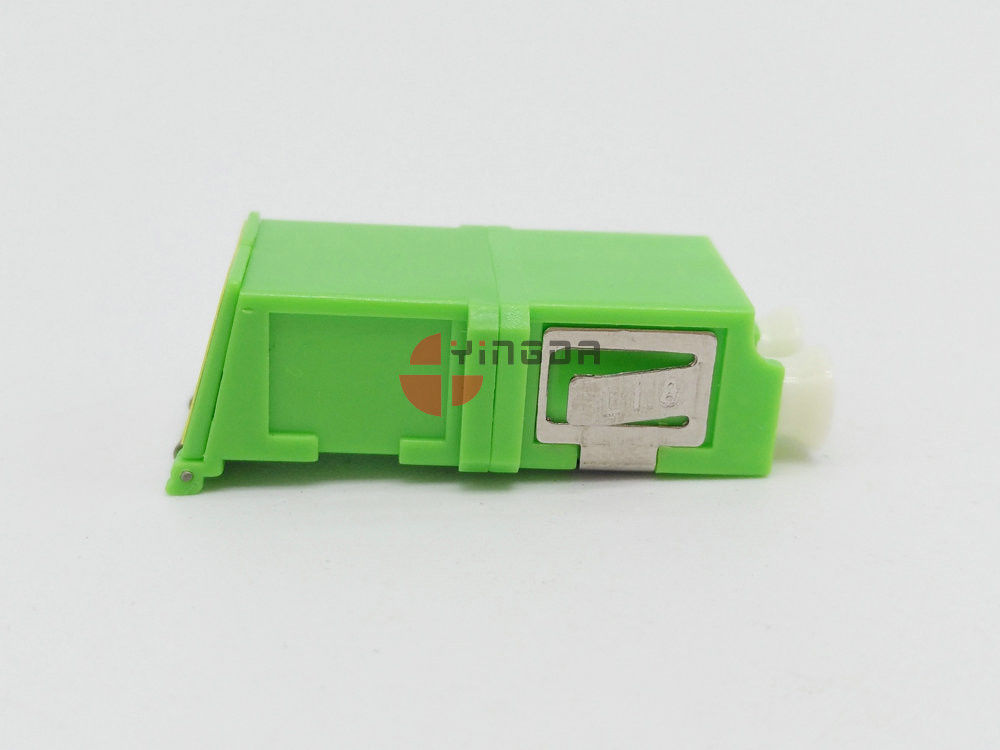

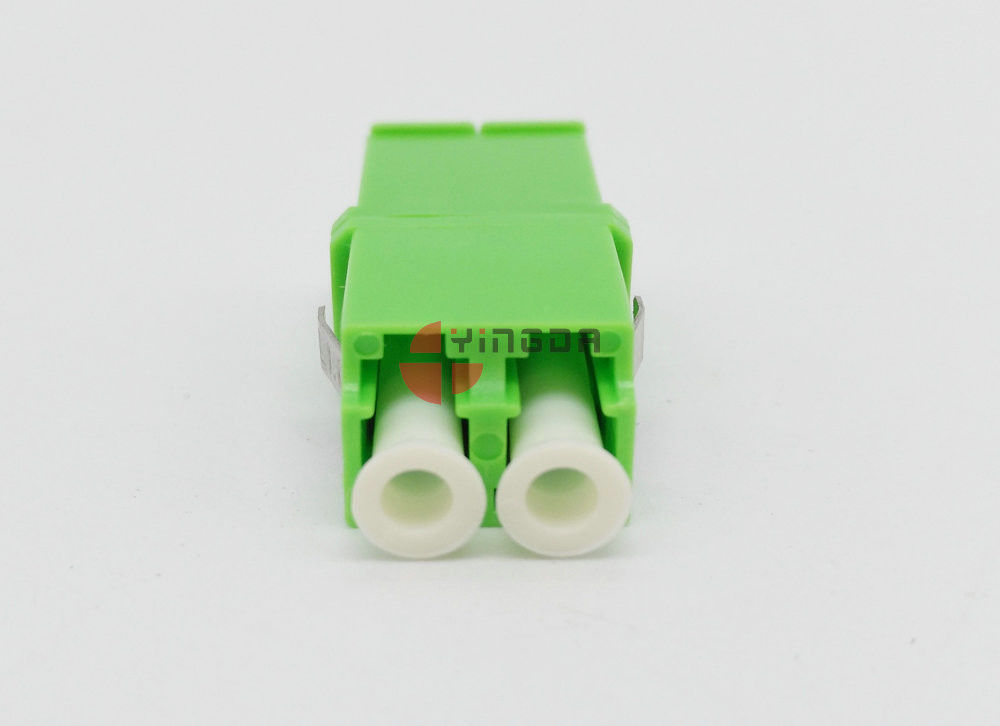

More pictures

Green LC/APC Duplex SM Fiber Optic Adapter With Shutter , No FlangeGreen LC/APC Duplex SM Fiber Optic Adapter With Shutter , No Flange

Green LC/APC Duplex SM Fiber Optic Adapter With Shutter , No FlangeGreen LC/APC Duplex SM Fiber Optic Adapter With Shutter , No Flange

Green LC/APC Duplex SM Fiber Optic Adapter With Shutter , No FlangeGreen LC/APC Duplex SM Fiber Optic Adapter With Shutter , No Flange



Environment and Mechanical Properties

Item Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability

1000 Mating, clean every

25 mating

 IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidity cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB




Application

  • Telecommunication
  • CATV
  • Data Communications
  • Instrumentation
  • Local Area Networks
