OM2 DX SC Fiber Optic Adapter / Coupler Grey With Dust Cap For Date Center
  • name
  • name
  • name
  • name

OM2 DX SC Fiber Optic Adapter / Coupler Grey With Dust Cap For Date Center

MOQ: 1000pcs
Price: 0.04USD-2.15USD
Standard Packaging: 20 pc / box
Delivery Period: 5 working days
Payment Method: T/T or western Union
Supply Capacity: 200km/ month
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO,SGS
Model Number
AD-SCM1-03
Fiber Count:
Duplex
Connector Material:
Plastic
Adapter Color:
Beige
Sleeve Material:
Ceramic
Fiber Type:
Multimode 50/125um,62.5/125um
Polish Mode:
PC
Working Temperature:
-40 ~ +85 °C
Wavelength:
850nm
House Material:
PBT / ABS
Connector:
SC
Product Name:
Mpo To Mpo Cable,mpo To Lc Cable, Mtp Optical Connector,mtp Cassette
Highlight:

OM2 Fiber Optic Adapter

,

DX SC Fiber Optic Adapter

,

Bare Fiber Optic Adapter Coupler

Product Description

Supplier Special design dust cap OM2 DX SC Fiber Optic Adapter / Coupler Grey for Date center





Fiber connector adapters are also referred to as fiber optic couplers. They are used to provide a

cable to cable fiber connection.. Yingda connector adapters are used to connect the same type

fiber optic connectors, while hybrid adapters connect different kinds of fiber optic connectors.

We offers a complete line of adapters for fiber optic connections, including ST, SC, FC, LC, MTRJ

style fiber optic adapters for both multimode and single-mode fiber applications. We also offer fiber

adapter plates for ST-, SC-, MT-RJ- or LC-type connections.



SC=Standard connector, "SC" connector is standard square connector, made of engineering plastic,

high temperature resistant,not easy to oxidation.Transmission equipment generally use SC connectors.





This is a kind of developed by Japan's NTT optical fiber connector. The shell rectangular, adopted

by the pin and the structure of the coupling sleeve size and FC are exactly the same,. The end face

of the pin is used more PC or APC model grinding way; Fastening way is to use plug pin bolt type,

does not need to rotate. This kind of connector price is low, plug is easy to operate, small ripple in

loss, high compressive strength, high density installation.





Features

  1. Conforms to Telcordia GR-326-CORE standard
  2. Conforms to YD/T-1272.3 standard
  3. Good interchangeability,low insertion loss
  4. Easy to use,plug
  5. Application: FTTH,CATV,Telecommunications,etc
  6. 100% test in factory
  7. High quality blister box package
  8. Customer label with logo ok
  9. Insertion loss<0.2dB
  10. Fast delivery: 3-5 working days



Specification



Wavelength

1200-1600nm

Polish method

UPC,PC,APC

Insertion loss

≤0.2dB

Max.Insertion loss

≤0.3dB

Repeatability

≤0.1dB

Interchangeability

≤0.2dB

Sleeve material

Cermic or metal

Working/Storage temperature

-40~+85℃

Matings time

>1000



Order information

  1. Connector type: SC/UPC, SC/PC, SC/APC
  2. Connector color: beige, blue, green, aqua, purple
  3. Fiber type: SM, OM1, OM2, OM3, OM4
  4. Type: simplex, duplex

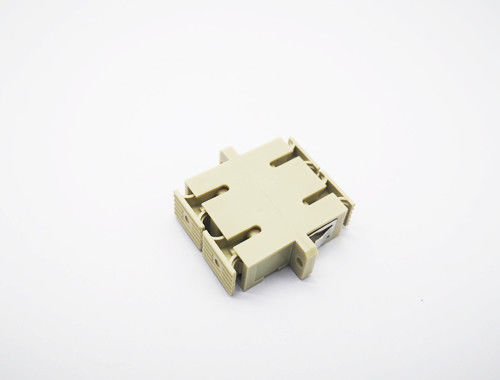

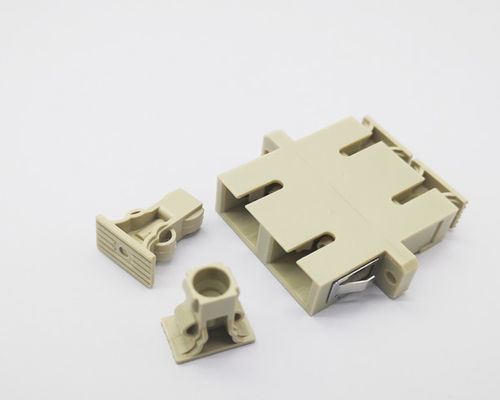

OM2 DX SC Fiber Optic Adapter / Coupler Grey With Dust Cap For Date Center 0OM2 DX SC Fiber Optic Adapter / Coupler Grey With Dust Cap For Date Center 1

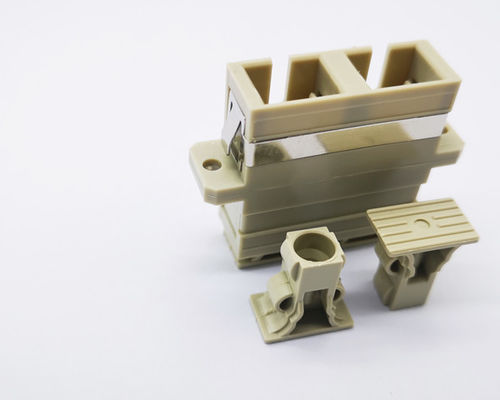

OM2 DX SC Fiber Optic Adapter / Coupler Grey With Dust Cap For Date Center 2

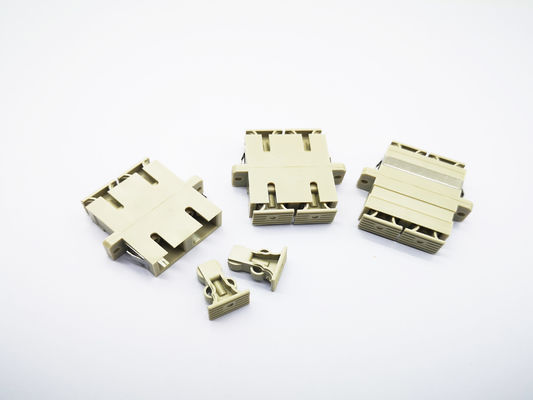

OM2 DX SC Fiber Optic Adapter / Coupler Grey With Dust Cap For Date Center 3
