G652D G657A1 G657A2 FTTH Field Assembly Connector SC LC FC
  • name

G652D G657A1 G657A2 FTTH Field Assembly Connector SC LC FC

MOQ: 1000 PCS
Price: 0.19USD-0.72USD
Standard Packaging: 10pcs /blister box, 1000pcs / carton box
Delivery Period: 3-5 working days after get payment
Payment Method: T/T or western Union
Supply Capacity: 10,000pcs per day
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin
china
Brand Name
YINGDA
Certification
ISO
Model Number
YD-FIC-SCU-D
Product Name:
Fast Connector
Color:
Blue
Pack:
Blister Box
Insertion Loss:
<0.5dB
Material:
PEI
Feature:
Field Installable Connector
Product Name:
Sc Fiber Connector,sc Fiber Optic Connector,fiber Cable Connectors,field Installable Connector
Highlight:

G657A2 FTTH Field Assembly Connector

,

G652D FTTH Field Assembly Connector

,

G652D fast connector fiber optic

Product Description

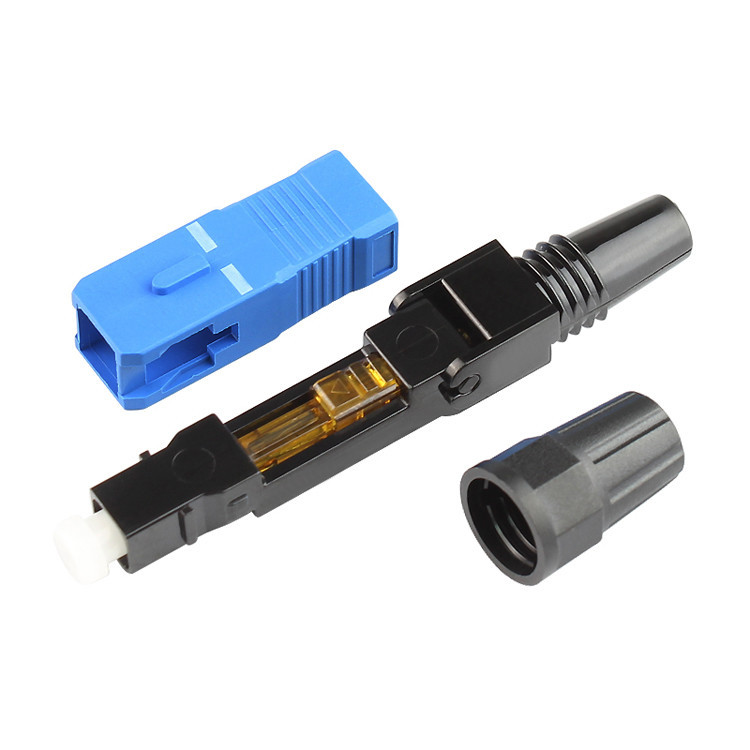

G652D G657A1 G657A2 FTTH Field Assembly Connector SC LC FC



SC/UPC Fast Field Installation Assembly also called Mechanical Quick Assemblyb connector, most people call it fast connector for short. It is a kind of connector, it is used in field wiring operation and FTTH projectwhere need fast and stable connection. Because it has

embedded

fiber and prepolished and heat oven ferrule, so no need additional glue curing or grinding, thus offer quicker help to installation,

 maintenance,repair and fiber to the home for engineers.



The preembedded fiber and prepolished and cured ferrule ensures the ferrule end face good quality, and effectively protect the user

equipment interface from damage, reduce the connection attenuation loss.



Fast Connector Specification

Applicable for

3.1×2.0mm Drop cable, 3.0/2.0/0.9 cable

Optical fiber diameter

125um (G652D,G657A1,G657A2)

Tight butter diameter

250um

Fiber mode

Single mode

Operation time

About 60s (no fiber cut)

Insertion loss

≤0.3dB(1310nm &1550nm)

Return loss

≤-40dB

Fastening strength of naked fiber

＞5N

Fastening strength of naked fiber holder

＞10N

Tensile strength

＞50N

Using temperature

-45～+80℃

On-line tensile strength(20N)

△IL≤0.2dB △RL≤5dB

Mechanical durability(500times)

△IL≤0.2dB △RL≤5dB

Drop-off test

(drop-off height 4m,

once per direction,totally 3times)

△IL≤0.2dB △RL≤5dB



Mechanical Connector Features

  • Can made any length of fiber optic patch cord on-site
  • On-site installation, simple and quick operation, only 2 minute
  • With pre-embedded optical fiber G657A1 G652D, G657A2 and the end face is pre-polished and heat oven, without any adhesive and polishing process
  • Do not need hot melt, save power supply
  • High performance, good reliability

G652D G657A1 G657A2 FTTH Field Assembly Connector SC LC FC 0G652D G657A1 G657A2 FTTH Field Assembly Connector SC LC FC 1

Quick Assembly Connecor Application

  1. Fiber Optic Test
  2. Fiber Optic Distribution Frame use
  3. FTTH network
  4. CATV / LAN network
  5. Fiber Optic Telecommunication system
  6. Fiber Data Transmission network

G652D G657A1 G657A2 FTTH Field Assembly Connector SC LC FC 2G652D G657A1 G657A2 FTTH Field Assembly Connector SC LC FC 3

Fiber Optic Fast Connector Order information

  1. Connector: SC/UPC, SC/APC, FC/UPC,FC/APC,ST, LC/UPC,LC/APC
  2. Cable type: drop cable , indoor cable 0.9mm, 2.0mm
  3. Connector color: Blue,Green, Black
  4. Fiber type: G652D, G657A1, G657A2
  5. Length: 60mm, 55mm
  6. Pack: plastic bag, blister box




Ratings & Review

Overall Rating

5.0
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

A
A*e
Indonesia Feb 7.2025
Helpful (3)
Everything excellent, from the treatment in the negotiation, delivery time, and the quality of their product very good Delivery： 100% Quality： 100% Design： 100% Service： 100%
D
Danie Maritz
South Africa Aug 2.2024
Helpful (4)
best price and quality, excellent service
Review Image
N
N*n
France Oct 25.2023
Helpful (8)
Excellent product, good material quality! Easy to installtion, suitable for mini sc adapter and flat drop cable...
Tags:

quick assembly connector,

FTTH connector,

mechanical splicer
