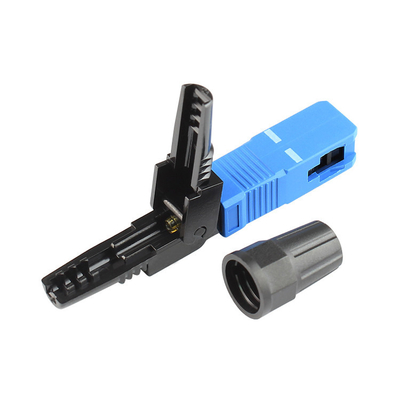

UPC FTTH Field Assembly Optical Connector SC LC FC G657A Single Mode

Name: UPC FTTH Field Assembly Optical Connector SC LC FC G657A Single Mode
Brand: YINGDA TECHNOLOGY LIMITED
SKU: YD-FIC-SCU-D
Price: 0.19 USD
Availability: InStock

Brand Name:	YINGDA
Model Number:	YD-FIC-SCU-D
MOQ:	1000 PCS
Price:	0.19USD-0.72USD
Delivery Time:	3-5 working days after get payment
Payment Terms:	T/T or western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ISO

Pack:

Blister Box

Insertion Loss:

<0.5dB

Material:

PEI

Ferrule:

UPC

Fiber Type:

Single Mode SMF G657A1

Feature:

Field Installable Connector

Product Name:

Sc Fiber Connector,sc Fiber Optic Connector,fiber Cable Connectors,field Installable Connector

Packaging Details:

10pcs /blister box, 1000pcs / carton box

Supply Ability:

10,000pcs per day

Highlight:

FTTH Field Assembly Optical Connector

G657A Field Assembly Optical Connector

G657A fiber optic quick connector

Product Description

UPC FTTH Field Assembly Optical Connector SC LC FC G657A Single Mode

SC/UPC Fast Field Installation Assembly also called Mechanical Quick Assemblyb connector, most people call it fast connector for short. It is a kind of connector, it is used in field wiring operation and FTTH projectwhere need fast and stable connection. Because it

has embedded

fiber and prepolished and heat oven ferrule, so no need additional glue curing or grinding, thus offer quicker help to installation,

maintenance,repair and fiber to the home for engineers.

Fast Connector Specification

Applicable for	3.1×2.0mm Drop cable, 3.0/2.0/0.9 cable
Optical fiber diameter	125um (G652D,G657A1,G657A2)
Tight butter diameter	250um
Fiber mode	Single mode
Operation time	About 60s (no fiber cut)
Insertion loss	≤0.3dB(1310nm &1550nm)
Return loss	≤-40dB
Fastening strength of naked fiber	＞5N
Fastening strength of naked fiber holder	＞10N
Tensile strength	＞50N
Using temperature	-45～+80℃
On-line tensile strength(20N)	△IL≤0.2dB △RL≤5dB
Mechanical durability(500times)	△IL≤0.2dB △RL≤5dB
Drop-off test (drop-off height 4m, once per direction,totally 3times)	△IL≤0.2dB △RL≤5dB

Mechanical Connector Features

Can made any length of fiber optic patch cord on-site
On-site installation, simple and quick operation, only 2 minute
With pre-embedded optical fiber G657A1 G652D, G657A2 and the end face is pre-polished and heat oven, without any adhesive and polishing process
Mechanical and environmental performance conforms to GR-326-CORE standard.
SC/APC,SC/UPC,LC/UPC,LC/APC,FC/UPC can be choose
Fast connector tools: fiber cable coat stripper, drop cable stripper, alcohol, guideway, fiber cleaver
Spare parts: each 10sets or 100sets will offer: 1xguideway tool +10x dust cleaner wippers+1x english user manual.

UPC FTTH Field Assembly Optical Connector SC LC FC G657A Single Mode 0

Quick Assembly Connecor Application

Fiber Optic Test
Fiber Optic Distribution Frame use
FTTH network
CATV / LAN network
Fiber Optic Telecommunication system
Fiber Data Transmission network

UPC FTTH Field Assembly Optical Connector SC LC FC G657A Single Mode 2

Fiber Optic Fast Connector Order information

Connector: SC/UPC, SC/APC, FC/UPC,FC/APC,ST, LC/UPC,LC/APC
Cable type: drop cable , indoor cable 0.9mm, 2.0mm
Connector color: Blue,Green, Black
Fiber type: G652D, G657A1, G657A2
Length: 60mm, 55mm
Pack: plastic bag, blister box
