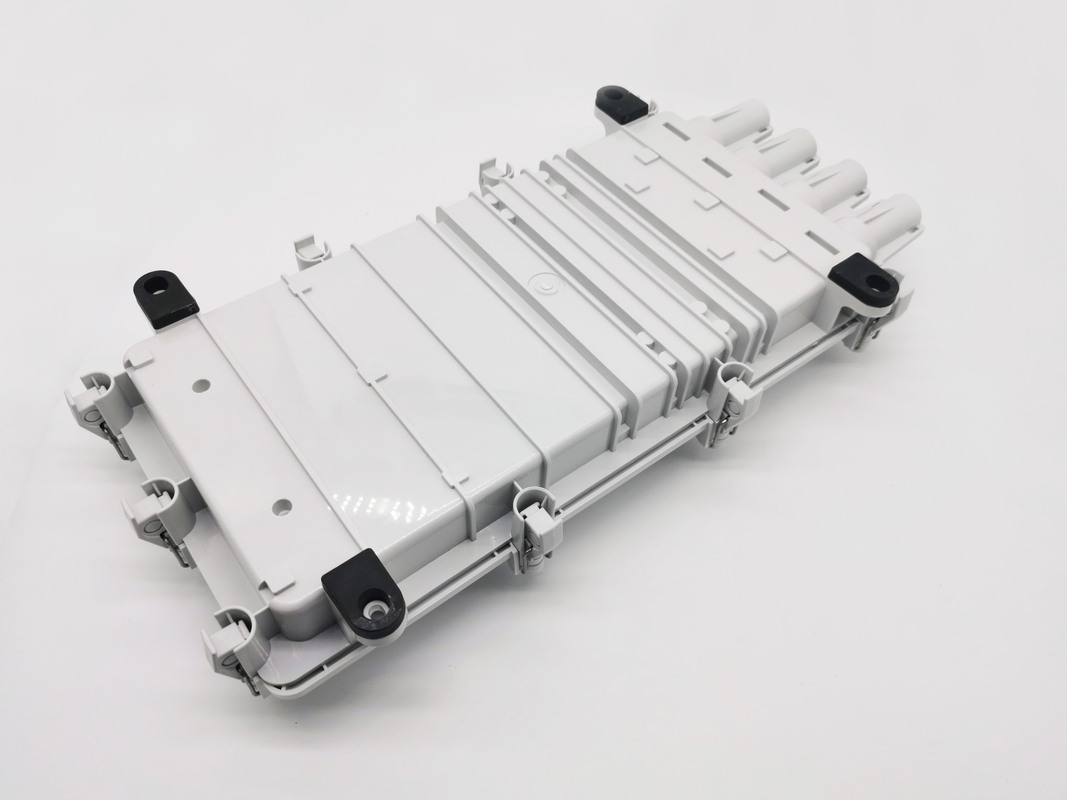

4 Ports 256 Core Optical Splice Enclosure Outdoor Wall Mounted Plastic Grey

  • 4 Ports 256 Core Optical Splice Enclosure Outdoor Wall Mounted Plastic Grey
  • 4 Ports 256 Core Optical Splice Enclosure Outdoor Wall Mounted Plastic Grey
  • 4 Ports 256 Core Optical Splice Enclosure Outdoor Wall Mounted Plastic Grey
  • 4 Ports 256 Core Optical Splice Enclosure Outdoor Wall Mounted Plastic Grey
  • 4 Ports 256 Core Optical Splice Enclosure Outdoor Wall Mounted Plastic Grey
Place of Origin china
Brand Name yingda
Certification ISO,CE, ROHS
Model Number CAU 256
Minimum Order Quantity 100 pcs
Price negotiable
Packaging Details 1pc / box, 5 pcs / carton box
Delivery Time 10-15days
Payment Terms L/C, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PC+ABS Color Grey
Ip Grade IP65 Installation Method Wall Mount
Cable Port 4 Round Ports, 2 Reserved Ports Internal Max Fusion 8 Splice Tray, Max. 256 Cores Dual Fiber
Box Type Fiber Optic Splice Closure Feature Cable Go Through The Box Without Cutting, Mid Span
High Light

256 Core Optical Splice Enclosure

,

IP65 Optical Splice Enclosure

,

IP65 outdoor splice enclosure
Leave a Message
Product Description

4 Ports 256 Core Optical Splice Enclosure Outdoor Wall Mounted Plastic Grey



4 Ports 256 Core Fiber Optic Fusion Splice Jounction Box Outdoor Wall Mounted Plastic Grey



It is a universal access junction box that allows the continuity and segregation of medium capacity optical cables used in the deployment of optical power and transport networks. The design of the box allows the mechanical continuity of the tensile elements of the cables and protects the fibers, the unions and the optical devices facilitating the organization of the splices and the storage of the fiber surplus.The box is airtight and resistant to weather conditions so it can be installed both outside and inside buildings in log chambers, arches, walls, poles or cable galleries.



Specification

Model CAU-256
Dimension (L*W*H) 555*106*290mm
Max. Capacity 256cores (8tray, double layer)
Cable port&diameter 6round (4:7-12mm; 2:22mm)
Material PC+ABS
Working temperature -40 ~+70°C
Mechanical parameters

Static load> 1000 N (25 cm2, 10min).

Degree of protection against mechanical impacts IK09 (20 J).
Axial tension:Cable load> D / 45 mm x 1000 N. D: cable diameter. 1 hour per cable. Cable offset <3 mm
Cable flexion:30 ° max. 500 N. Application of force: 400 mm from the end of the seal. No. of cycles: 5 / cable.
Cable twist:Maximum rotation torque 90 ° / max 50 N. Force application: 400 mm from the sealing end. No. of cycles: 5 / cable.
Vibration Frequency:10 to 15Hz. Speed: one octave per minute. Cycle: sinusoidal; amplitude: 3 mm (6 mm crest to crest). Cable clamp: 500 mm from the end of the seal. Duration: 2 hours per axis



4 Ports 256 Core Optical Splice Enclosure Outdoor Wall Mounted Plastic Grey 0

Features

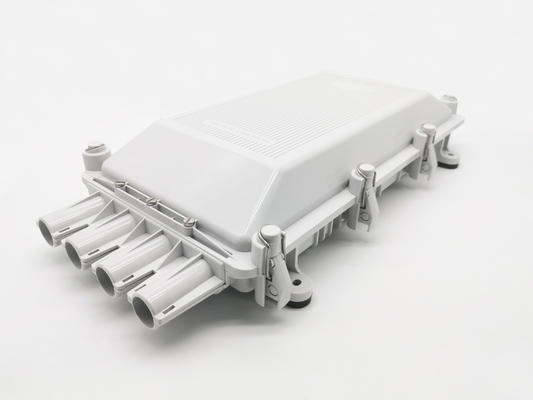

  • It has 4 independent cable accesses at one end. Each allows the individualized input of at least 2 medium capacity multifiber cables (double inputs) and up to 6 small capacity optical cables (7mm.).

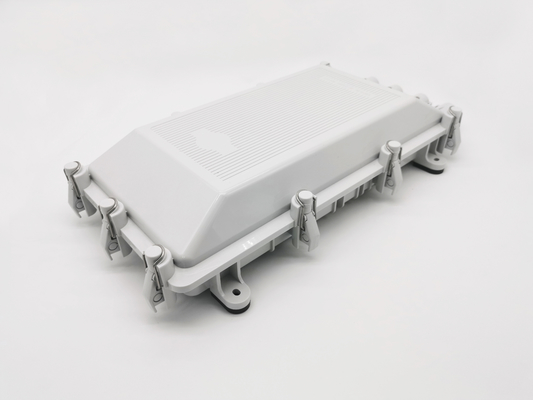

  • The closing cover is completely assembled and removed without the need for special tools thanks to the clip-type seal.
  • The sealing of box access is made by rubber gaskets with pre-cut entries.

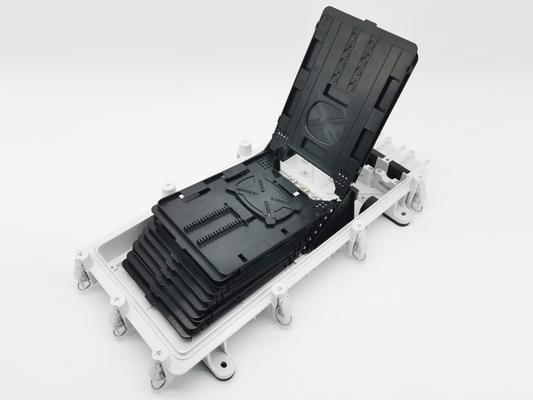

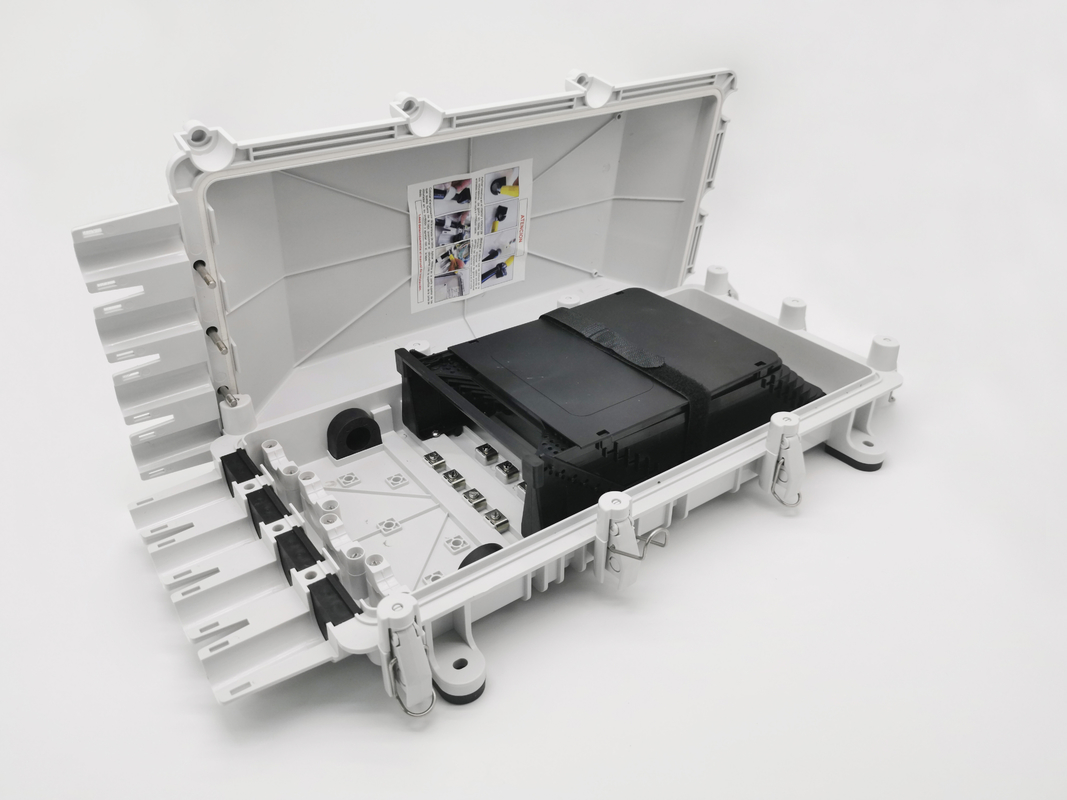

  • Wide and easily accessible rectangular splice trays with extensible tabs for better fiber storage up to 32 F.O. (double layer). Both the support block and the individual trays allow 90 ° rotation and interlocking in fixed positions to facilitate installation.
  • The boxes can be opened, closed and manipulated without interrupting the circuits in operation. It allows to join and segregate cables without having to cut all the fibers as well as the proper storage of the tubes and / or leftover fibers of the cables.
  • The box once closed is completely airtight and resistant to weather conditions. Degree of protection IP-68.
  • The materials are designed for a minimum duration of 20 years.


4 Ports 256 Core Optical Splice Enclosure Outdoor Wall Mounted Plastic Grey 14 Ports 256 Core Optical Splice Enclosure Outdoor Wall Mounted Plastic Grey 24 Ports 256 Core Optical Splice Enclosure Outdoor Wall Mounted Plastic Grey 34 Ports 256 Core Optical Splice Enclosure Outdoor Wall Mounted Plastic Grey 4
