128 Core Fiber Optic Splice Enclosure Joint Box Wall Mounted
128 Core Fiber Optic Splice Enclosure Joint Box 2in 2out Mid Span Ports Outdoor Wall Mounted
It is a universal access junction box that allows the continuity and segregation of medium capacity optical cables used in the
deployment of optical power and transport networks. The design of the box allows the mechanical continuity of the tensile
elements of the cables and protects the fibers, the unions and the optical devices facilitating the organization of the splices and
the storage of the fiber surplus.The box is airtight and resistant to weather conditions so it can be installed both outside and
inside buildings in log chambers, arches, walls, poles or cable galleries.
||128 cores (8tray, double layer)
||4 round (4set of 2*7mm; 4pcs 22mm)
Static load> 1000 N (25 cm2, 10min).
Degree of protection against mechanical impacts IK09 (20 J).
|Axial tension:Cable load> D / 45 mm x 1000 N. D: cable diameter. 1 hour per cable. Cable offset <3 mm
|Cable flexion:30 ° max. 500 N. Application of force: 400 mm from the end of the seal. No. of cycles: 5 / cable.
|Cable twist:Maximum rotation torque 90 ° / max 50 N. Force application: 400 mm from the sealing end. No. of cycles: 5 / cable.
|Vibration Frequency:10 to 15Hz. Speed: one octave per minute. Cycle: sinusoidal; amplitude: 3 mm (6 mm crest to crest). Cable clamp: 500 mm from the end of the seal. Duration: 2 hours per axis

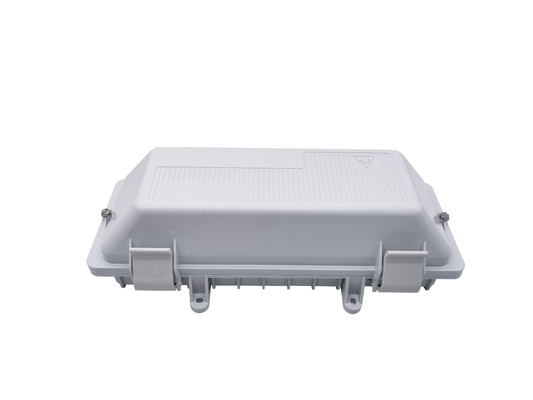

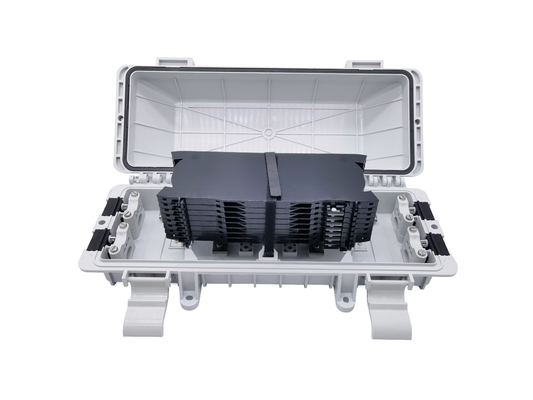

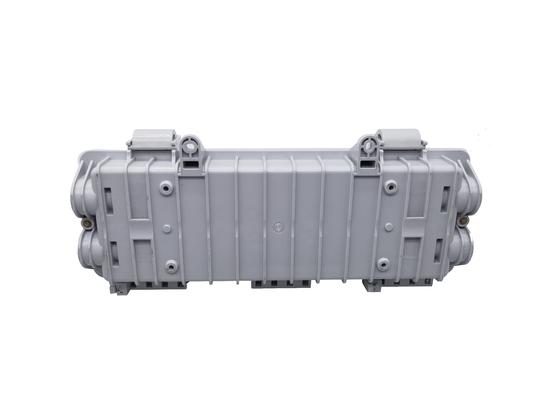

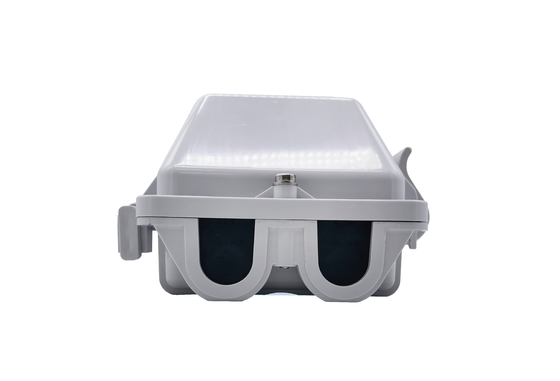

It has 2 independent cable accesses at each end. Each allows the individualized input of at least 2 medium capacity
multifiber cables (double inputs) and up to 8 small capacity optical cables (7mm.).
The closing cover is completely assembled and removed without the need for special tools thanks to the clip-type seal.
The sealing of box access is made by rubber gaskets with pre-cut entries.

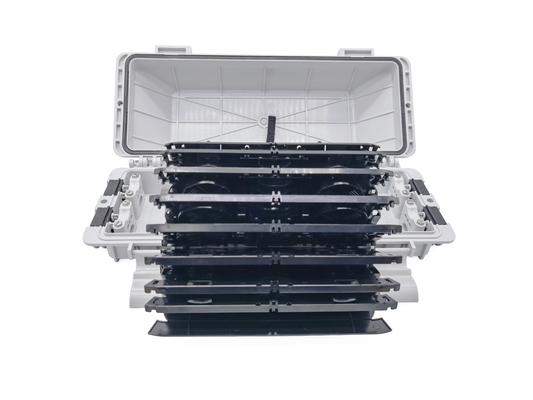

Wide and easily accessible rectangular splice trays with extensible tabs for better fiber storage up to 32 F.O. (double layer).
Both the support block and the individual trays allow 90 ° rotation and interlocking in fixed positions to facilitate
The boxes can be opened, closed and manipulated without interrupting
the circuits in operation. It allows to join and segregate cables without
having to cut all the fibers as well as the proper storage of the tubes and /
or leftover fibers of the cables.
The box once closed is completely airtight and resistant to weather
conditions. Degree of protection IP-68.
The materials are designed for a minimum duration of 20 years.
