Large Image :  FTTH Tool kit Mechanical Fibre Optic Termination Kit Fiber Cleaver Power Meter

Product Details:
Place of Origin: china
Brand Name: YINGDA
Certification: ISO, CE, ROHS
Model Number: YDFKT-001
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 1set/bag/carton box
Delivery Time: 3-5 working days after get payment
Payment Terms: T/T or western Union
Supply Ability: 1000pcs per day

FTTH Tool kit Mechanical Fibre Optic Termination Kit Fiber Cleaver Power Meter

Description

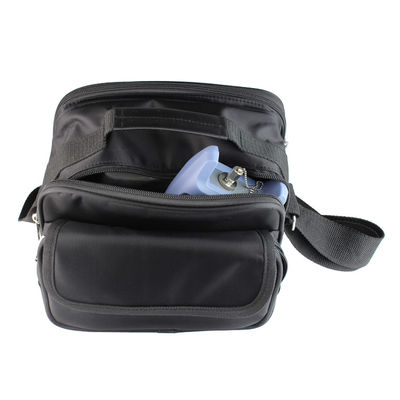

Bag Size: 22*17*19cm Visual Fault Locator: 1mw
Power Meter: 70dBm~+10dBm Fiber Cleaver: FC-6S
Application: FTTH, FTTX, Data Center Fiber Type: Single Mode, Multimode
High Light:

FTTH Tool kit

,

FTTX Fibre Optic Termination Kit

,

FTTX ftth fiber optic tool kit

FTTH Tool kit Mechanical Fibre Optic Termination Kit Fiber Cleaver Power Meter

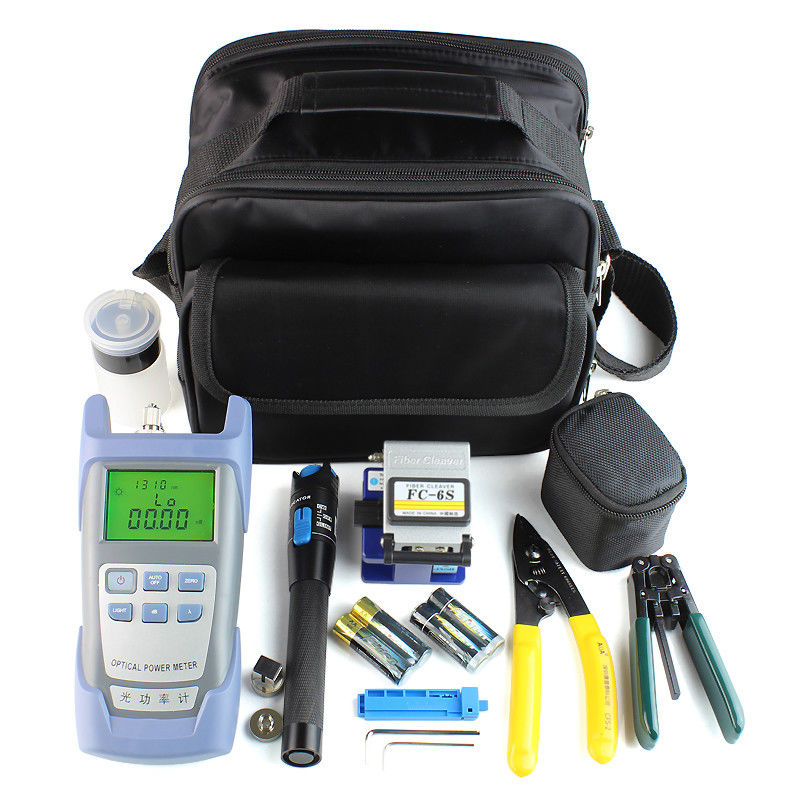

FTTH toolkits Mechanical Connector Termination Kits Fiber Cleaver Power meter VFL Laser Stripper CFS-2





With the popularity of optical fiber in the world, fast connection is widely used by more and more countries, and there is more and more demand for cold connection tools. Our company specially launched an optical fiber cold connection tool package suitable for on-site rapid assembly.



Standard configuration list:



Item Qty Item Qty
Individual pack bag 1pc Coating Stripper-Miller CFS-2 1pc
Optical power meter 1pc Drop cable stripper 1pc
FC-6S China made fiber cleaver 1pc Light visual fault locator 1pc
SC FC interface 1pc Alcohol bottle 1pc
Dust-proof paper 1bag Length fix tool 1pc
Hexagon wrench 2pc Fiber cleaver bag 1pc



NOTE:

Life guarantee: power meter, VFL, fiber cleaver - 1year.



FTTH Tool kit Mechanical Fibre Optic Termination Kit Fiber Cleaver Power Meter 0

Can cut 3mm, 0.9mm, 250um, drop cable, etc.

Before use, please watch the instruction manual, and adjust the blade and jig. in right place, and change the blade after long time use to keep the fiber in good condition.



NOTE:

it is China made, not original Sumitomo Japan. If need original please contact us for quote.



FTTH Tool kit Mechanical Fibre Optic Termination Kit Fiber Cleaver Power Meter 1

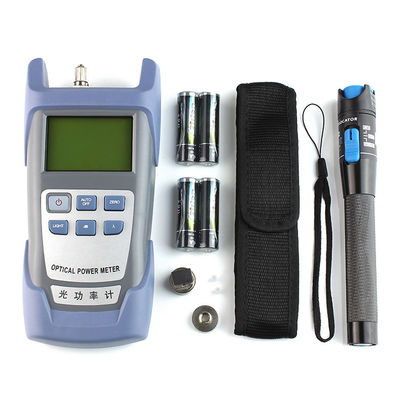

High precision optical power meter, complete functions, support three kinds of interfaces, automatic calibration, fine workmanship, rubber coated frame, anti falling and durable; It can be equipped with 7 test wavelengths: 850nm, 980nm, 1300nm, 1410nm, 1550nm, 1490nm, 1625nm, 2.5mm standard universal connector, SC / FC / St universal, can replace other different interfaces, and the operation is simple and practical.



SPECIFIATION

Power test range -70~+10dBm
Probe type InGaAs
Wavelength range 800-1700nm
Standard wavelength 850/980/1300/1310/1490/1550/1625nm
Display resolution

Linear display:0.1dBm

Logarithmic display:0.01dBm

Working temperature -10 ~+60°C
Storage temperature -25 ~+70°C
Automatic shutdown time ≥40hours
Dimension 180*83*28mm
Weight 0.36kg

NOTE:

AA battery is not included, due to the particularity of the battery in international shipment, please buy local.



FTTH Tool kit Mechanical Fibre Optic Termination Kit Fiber Cleaver Power Meter 2

This 1mw light pen (laser pen) has built-in high-quality chip and laser head. It has good beam concentration effect, easily penetrates long-distance optical fiber, has excellent stability, and can quickly detect the on-off of lines.



It is made from aluminum alloy body, wear-resistant and fall resistant, with standard 2.5mm connector, SC FC st universal, anti-skid handle, comfortable feel. The battery can be replaced.



And the sliding cover switch is adopted, which makes the design more practical and reasonable.



Item Visual fault locator VFL
Output power <1mw
output wavelength 650±10nm
Adapter 2.5mm universal interface
Operating temperature 0~+60°C
Storage temperature -20 ~+70°C
Battery type 2 pcs No. 5 alkaline batteries
Battery life span >42hours
Dimension 175*26*26mm
Weight 160g
Switch 3steps: Normally on, off, flashing

NOTE:

AA battery is not included, due to the particularity of the battery in international shipment, please buy local.



FTTH Tool kit Mechanical Fibre Optic Termination Kit Fiber Cleaver Power Meter 3

The optical fiber stripper CFS-2 adopts ergonomic design to reduce fatigue; The stripper is made from aluminum alloy material, anti falling and durable, with exquisite workmanship and no damage to the optical fiber



All cutting sections have precise mechanical tolerance to ensure clean and smooth operation. 2 aperture design, 2mm-3mm pigtail jump cable sheath protection layer of large hole glass; Coating layer of 125um-250um optical fiber core of small hole glass;



High quality reinforced spring, high strength, fatigue resistance, pressure resistance, hand name;

When not in use, the knife edge can be locked in the closed state to reduce the volume and protect the knife edge.



The overall length is 16.5cm and packed in independent carton.

FTTH Tool kit Mechanical Fibre Optic Termination Kit Fiber Cleaver Power Meter 4

This DROP CABLE stripper is designed especially for ftth drop cable 2.0*3.0mm, Exquisite design, firm and durable. It can peel the cable sheath and the metal strength member at fixed length. It has length positioning for easy operation, small size and easy to carry.



The length is about 110mm, including the packing weight: 0.17kg.





On-site constrction toolkits can be offer, please click the link below:




FTTH Tool kit Mechanical Fibre Optic Termination Kit Fiber Cleaver Power Meter 5FTTH Tool kit Mechanical Fibre Optic Termination Kit Fiber Cleaver Power Meter 6





All other details, please inquiry use for more details. Thanks.
