| Brand Name: | YINGDA |
| Model Number: | YDAD-SCA01-SP02GR |
| MOQ: | 100PCS |
| Price: | Negotiable |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union |

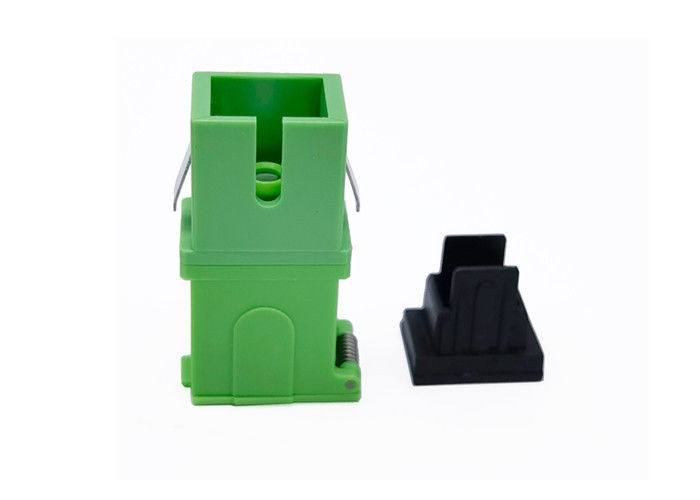

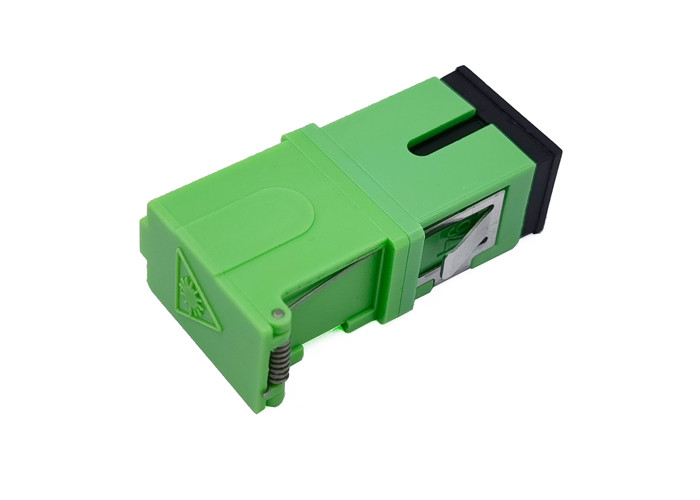

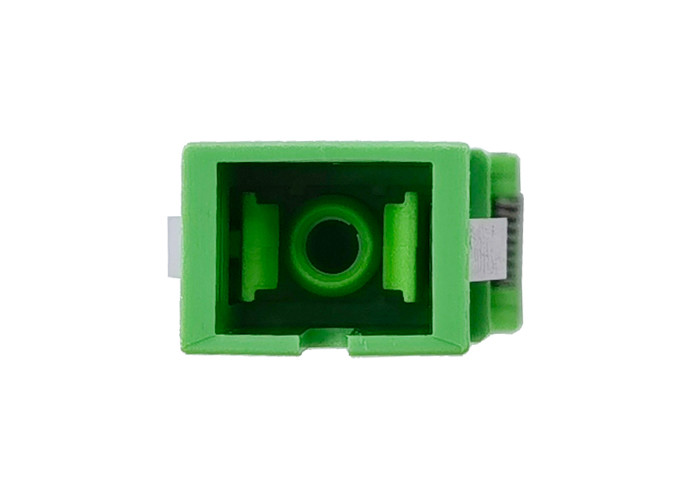

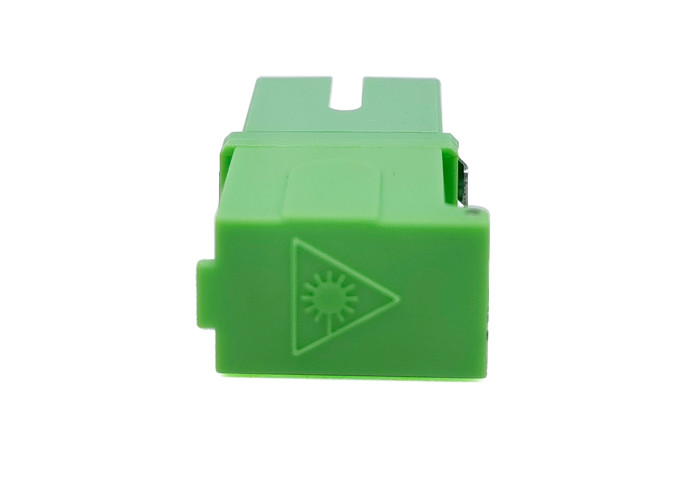

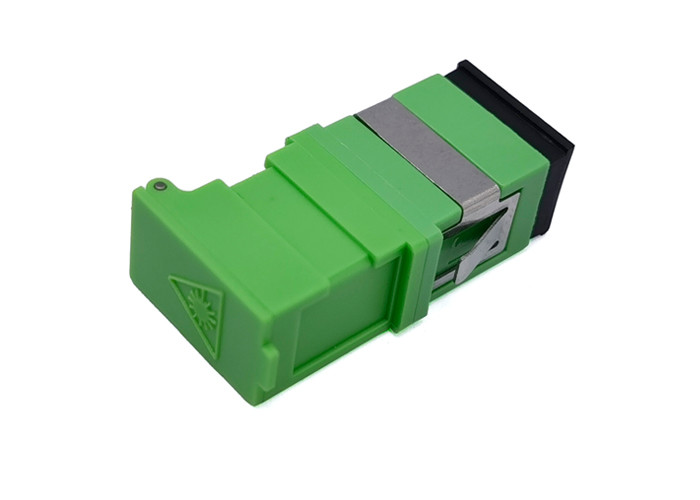

SC Side Shutter Fiber Connector Adapters Without Flange Green Metal Clamp Laser
SC Side Shutter Adaptor Coupler Without Flange Green Metal Clamp Laser Single Mode Ceramic Sleeve
Fiber optic adapter, also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic cords.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and re-production ability. And each fiber optic adapter is 100% functionally tested before shipping.
Features
Specification
| Item | SC Adaptor | |||
| Fiber type | SM | MM | ||
| Polish method | PC | UPC | APC | PC |
| Insertion loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
| Alternation loss | ≤0.2dB | |||
| Repeatability | ≤0.2dB | |||
| Durability | 1000 mating times<0.2dB | |||
Applications
² Telecommunication Networks
² Local Area Networks (LANs)
² Communication System
² Premise Installations
² Wide Area Networks (WANs)
² Video Transmission
² Connections Between Patchcords
² FTTX, CATV
² Connections Between Devices
Environment and Mechanical Properties
| Item | Test condition | Conformance | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability |
1000 Mating, clean every 25 mating |
IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidity cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | ≤0.2dB | |
| Storage Temperature | -40ºC to +85ºC | ≤0.2dB |
Order information: YDAD-CF-SMEDH
| YDAD | - | C=Connector type | F=fiber count | - | S=Shutter type | Material | E=Flange/ear type | D=dust cap | H=House color |
|
YD=yingda AD=adapter |
SCU=SC/UPC SCA=SC/APC FCU=FC/UPC FCA=FC/APC LCU=LC/UPC LCA=LC/APC ... |
01=simplex 02=duplex 04=quad |
S=side shutter F=front shutter N=inner shutter |
P=plastic M=metal |
0=without flange 1= with flange |
1=transparent cap 2=black flat 3=green flat 4=T-shaped gourd cap 5=Notched flat cap |
BL=blue GR=green BE=beige AQ=aqua VI=violet Xx=Other |
For example: YDPC-SCA01-FP02GW
Front shutter adapter SC/APC with laser mark, half white half green, green dust cap single mode, ceramic sleeve
