Ribbon Fiber Optic Breakout 4 6 12 Core Fan Out Kit 0.9mm Buffer Tube 2 Mts 6 Feet

Ribbon Fiber Optic Breakout 4 6 12 Core Fan Out Kit 0.9mm Buffer Tube 2 Mts 6 Feet

  • High Light

    Ribbon Fiber Optic Breakout

    ,

    12 Core Fiber Optic Breakout

    ,

    Ribbon fiber breakout cable

  • Application
    FTTH On-site Construction
  • Tube Material
    Hytrel
  • Fiber Count
    12 Cores
  • Tube Size
    0.9mm
  • Fanout Diamension
    43.18*17.78*7.62 Mm
  • Tube Length
    2 Meters
  • Cable Type
    Ribbon Cable
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO,SGS,ROHS
  • Model Number
    break out kits 12 core
  • Minimum Order Quantity
    100PCS
  • Price
    Negotiable

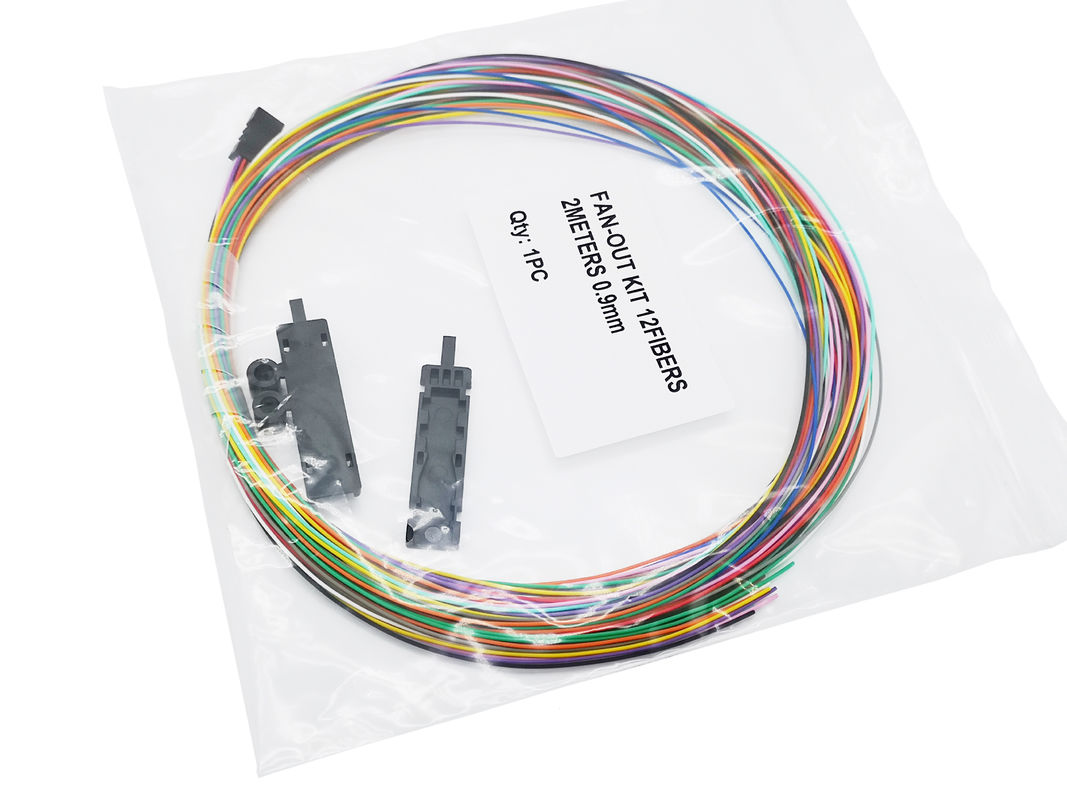

  • Packaging Details
    1 piece / bag

Ribbon Fiber Optic Breakout 4 6 12 Core Fan Out Kit 0.9mm Buffer Tube 2 Mts 6 Feet

Ribbon Fiber Optic Breakout 4 6 12 Core Fan Out Kit 0.9mm Buffer Tube 2 Mts 6 Feet

Indoor Ribbon Fiber Optic Breakout 4 6 12 Core Fan-out kit, 0.9mm buffer tube 2 Mts 6 feet


Fan Out or Break Out Kits are used when terminating fiber optic cables that are made with sub-units that contain color coded bare fibers rather than tight buffered fibers. The bare fibers are inserted into the tubing so that connectors can be installed. The kits are pre-configured for 4, 6 and 12 fiber with customized lengths of 900μm hytrel tubing in the appropriate industry-standard color code.

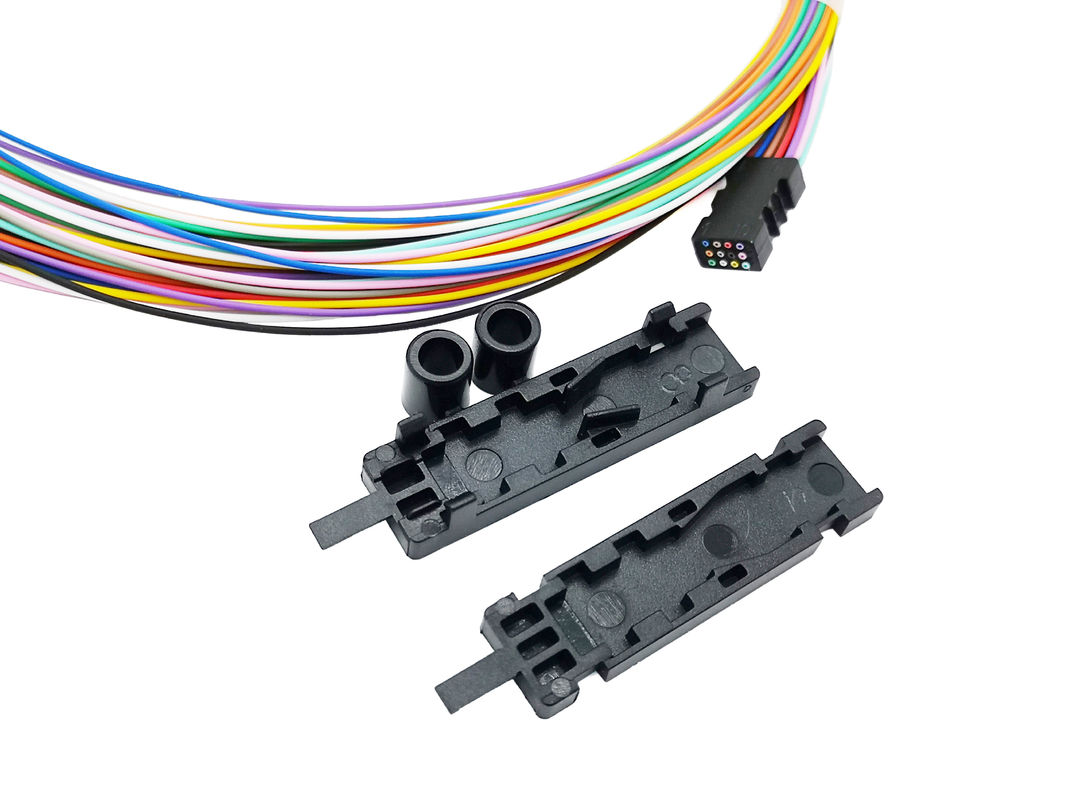

Yingda Fan-Out Kits have a unique snap-together design that offers the ability to unsnap the unit for re-entry if necessary. Each kit comes with the adapters that accommodate round cable configurations, such as Buffer Tubes, and Ribbon Cables. This cost-saving feature allows you to cover your application possibilities with just one style. The 0.9mm color coded hytrel tube allow each 250um fiber to be threaded through the corresponding colored tubes without epoxy tools.

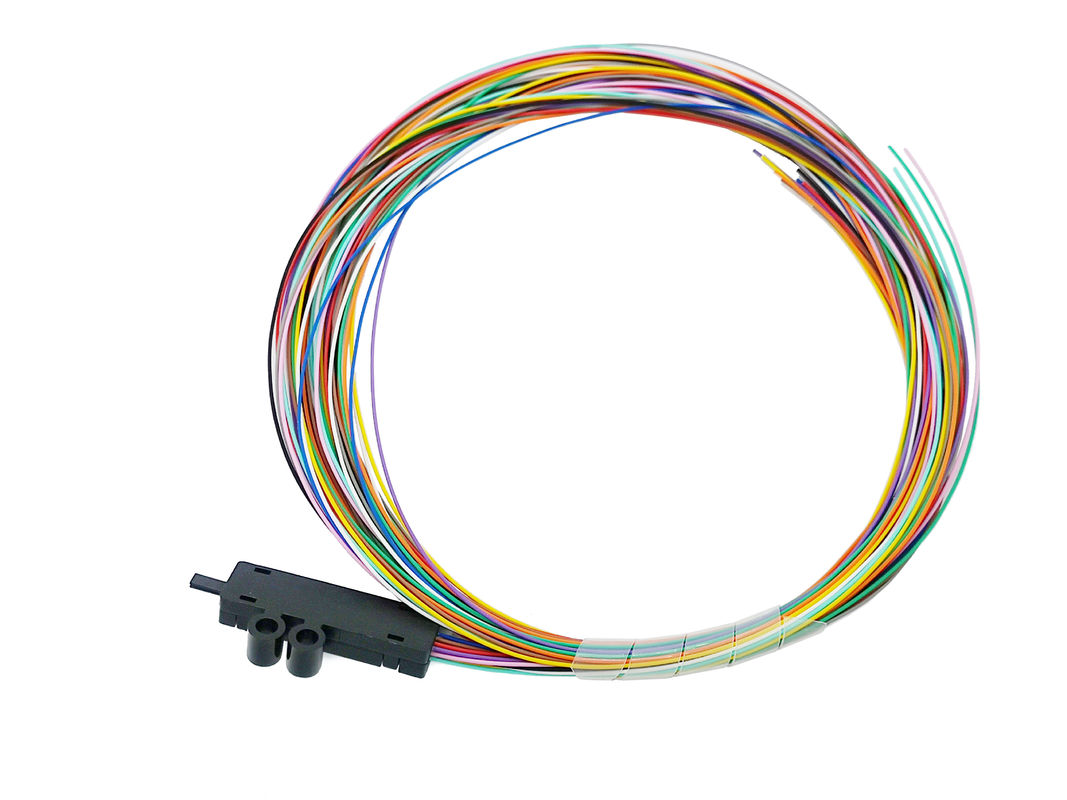

Ribbon Fiber Optic Breakout 4 6 12 Core Fan Out Kit 0.9mm Buffer Tube 2 Mts 6 Feet 0

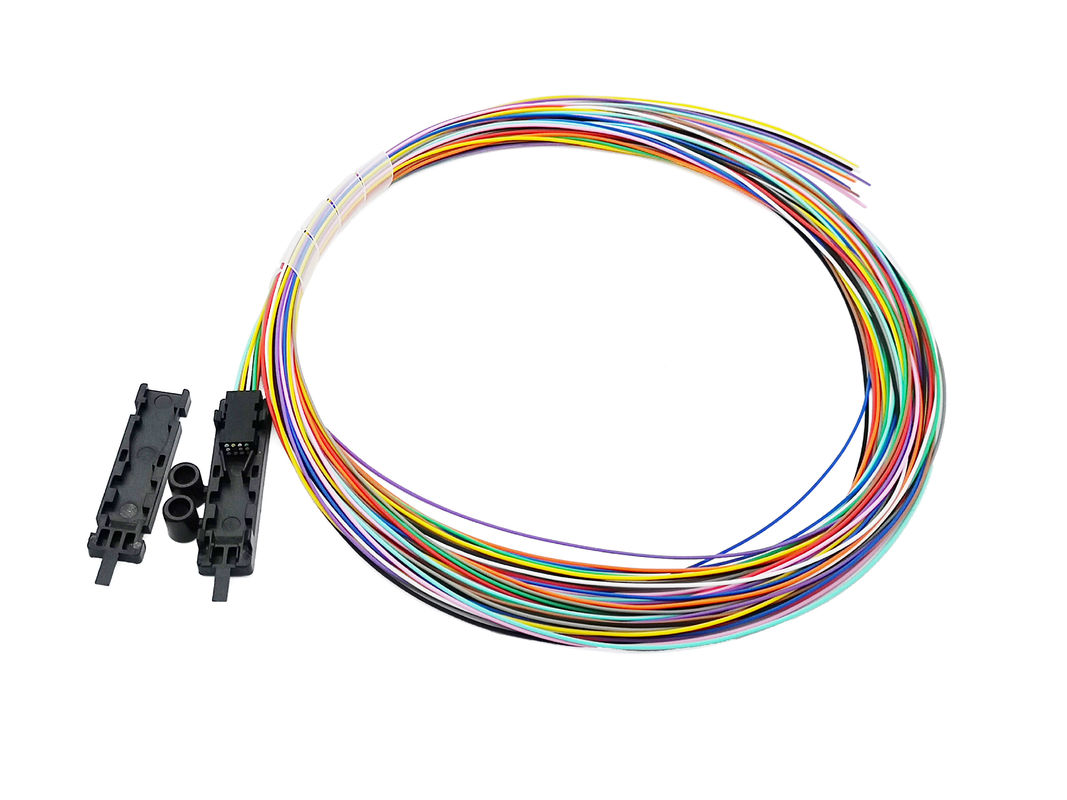

Ribbon Fiber Optic Breakout 4 6 12 Core Fan Out Kit 0.9mm Buffer Tube 2 Mts 6 Feet 1

Specification


ColorBlack
Compatible interfaceLC, SC, ST, etc
Dimension
Height7.62mm/0.3in
Width17.78mm/0.7in
Length43.18mm/1.7in
Tube length609.6mm/24in
Tube inner diameter500um
Tuber outer diameter900um
MaterialBody: ABS, tube:TPE
Operating temperature-10 ~ +60°C (+14 ~ +140°F)
Max Tensile Load45N
Min Bend Radius13mm
Crush Resistance52N/cm Max
ComplianceROHS, REACH,ISO

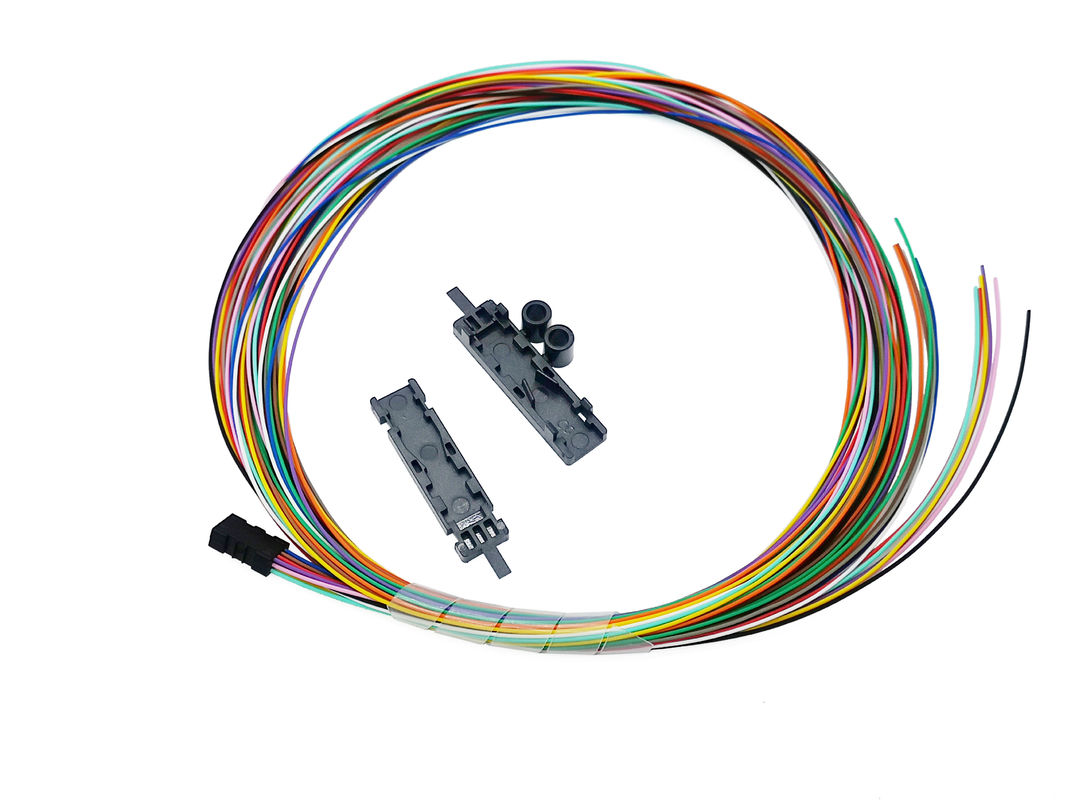

Ribbon Fiber Optic Breakout 4 6 12 Core Fan Out Kit 0.9mm Buffer Tube 2 Mts 6 Feet 2
Ribbon Fiber Optic Breakout 4 6 12 Core Fan Out Kit 0.9mm Buffer Tube 2 Mts 6 Feet 3
Features


  • This fan-out kit is designed for indoor use only (0~7°C rating).
  • This buffer tube fan-out kit provides the ultimate solution for those users who want to field-install connectors.
  • 4, 6, 12 strand configuration
  • 25″ or 36” as standard breakout length, customized length offered
  • Tube colors are under TIA/EIA standard, easy identification
  • No special tools required
  • Provides extra protection for the bare fiber.
  • Direct termination solution for ribbon fiber cable


Ribbon Fiber Optic Breakout 4 6 12 Core Fan Out Kit 0.9mm Buffer Tube 2 Mts 6 Feet 4

Standard accessory


IncludedBreakout unit, instruction sheet,snap together housing, twelve buffer tubes, 24 in x900um
Packaging unit1

Ribbon Fiber Optic Breakout 4 6 12 Core Fan Out Kit 0.9mm Buffer Tube 2 Mts 6 Feet 5


Ribbon Fiber Optic Breakout 4 6 12 Core Fan Out Kit 0.9mm Buffer Tube 2 Mts 6 Feet 6

key word: 6core break out kits, 6 fanout kit, 12 fiber fan-out, 12core break out, fanout kits, breakout kit
