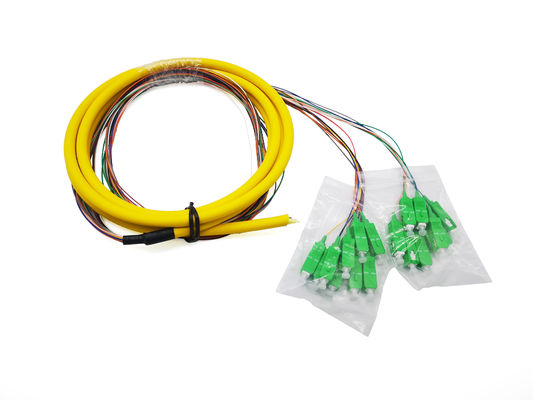

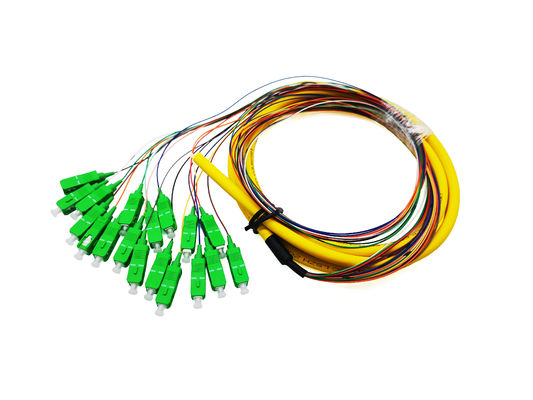

18 Colors Fiber Optic Pigtail 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm
-
High Light
18 Colors Fiber Optic Pigtail
,SC Fiber Optic Pigtail
,G657A1 single mode pigtail
-
ConnectorSC/APC Connector
-
Fiber Count18 Cores
-
Insertion Loss<0.3 DB
-
Fiber TypeSingle Mode 9/125um
-
Cable ColorBlue,pink,purple,orange,yellow,black,red,brown,aqua,etc
-
Fanout Diameter0.9mm
-
JacketLSZH
-
Connector ColorGreen
-
Temperature-40~+85°C
-
TypeBreakout Pigtails
-
ApplicationODF, Patch Panel, Terminal Box, Cabinet, FOSC
-
Place of Originchina
-
Brand NameYINGDA
-
CertificationISO SGS ROHS
-
Model NumberYDPG-18SA-030901
-
Minimum Order Quantity100pcs
-
Pricenegotiable
-
Packaging Details1 pc/ box, 220pcs / carton box
-
Delivery Time7days after payment
-
Payment TermsWestern Union, T/T, L/C
-
Supply Ability100,000 pcs per month
18 Colors Fiber Optic Pigtail 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm
18 Colors Fiber Optic Pigtail 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm
18 Colors Optical Fiber Pigtails 3Mts Fanout Tight Buffer SC G657A1 LSZH 0.9mm 1M Ftth GPON
Optical fiber pigtails only one end has a connector, the other end is a bulkhead end of an optical fiber core, which is used for the connection between the optical cable terminal box and the equipment. One end of the pigtail is fused with the optical fiber connector, and the other end is connected with the optical fiber transceiver or optical module through the LC SC FC st connector, forming the data transmission channel.
18Cores Pigtials can end terminate or distribute fiber to 18subscribers in ftth networks, widely used in FTTH terminal box, distribution box or patch panel or cabinets.
Optical Characteristics
| Cable diameter | φ0.9mm, φ2.0mm, φ3.0mm |
| Insertion loss | ≤0.2dB |
| Return loss | PC≥40dB,UPC≥50dB,APC≥60dB |
| Interchange ability test | ≤0.2dB |
| Mating times | >1000 times |
| Repeat ability | ≤0.1dB |
| Vibration test | ≤0.1dB(10-60Hz,1.5mm Full amplitude) |
| Tensile strength: | 0~15Kg |
| temperature cycling test | ≤0.2dB (-40℃~+85℃,after 5times recycle) |
| Low temperature test | ≤0.2dB(-40℃,last 100 hours) |
| High temperature test | ≤0.2dB (+85℃,last 100 hours) |
| Tensile test | ≤0.1dB(0-15Hg tensile,φ0.9mm fiber exception) |
| Temperature test | ≤0.2dB(+25℃~+65℃, relative humidity 93%, after 100hours) |
| Fiber count | 4 core 6 core 8 core, 10 core, 12 core. |
| Can use connectors |
FC / PC, FC / APC, SC / PC, SC / APC, ST / PC, etc |
18 Colors Fanout Pigtails Features

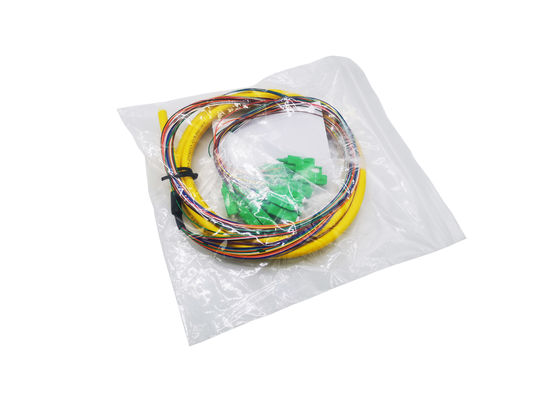

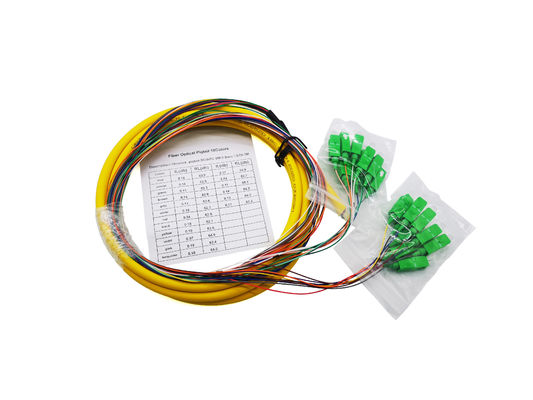

- 1piece in a plastic bag with air vent, with 1 test report along;
- All product will be 100% test in factory before delivery;
- Conforms to ANSI, Bellcore,TIA/EIA,IEC,etc International and domestic standards
- OEM customer logo or label is available.
- All connectors adopt Three-circle brand ceramic ferrule, angel -8 degree, Concentricity 0.5 or 1;
- All kinds of connectors are available:SC LC ST FC E2000 MU MTRJ DIN D4 SMA MPO MTP, etc.
- Endface:UPC APC PC or SPC
- 18 Colors: blue, orange, green, brown, gray, white, red, black, yellow, purple, pink, light blue, blue, orange, green, brown, gray
- On aseembly, in order to make the fiber in place,in good bend radius, not mess or injury, will use a plastic film or nylon tie at opposite.
Distribution Tight Buffer Optical Cable(GJFJV) SPECIFICATION:
| Technical Parameters: | |||||||||||
| Cable Count | Outside Diameter |
Tight buffer Diameter |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
||||
| (MM) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (℃) | ||
| 02 | 3.0 | 0.9 | 15.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 04 | 4.0 | 0.9 | 22.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 06 | 4.0 | 0.9 | 23.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 08 | 5.0 | 0.9 | 27.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 10 | 5.5 | 0.9 | 30.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 12 | 6.0 | 0.9 | 35.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
Application
- Medical instruments
- Industry and Army use
- CATV network
- LAN network
- Fiber Access network
- Telecommunications
- Gigabit Data Network test
