12 Cores FTTH Fiber Optic Pigtail SC APC G652D PVC 900um 1.5Mts Yellow
| Place of Origin | china |
|---|---|
| Brand Name | YINGDA |
| Certification | ISO SGS ROHS |
| Model Number | YDPG-12SA-1.5090.5 |
| Minimum Order Quantity | 100pcs |
| Price | negotiable |
| Packaging Details | 1 pc/ box, 220pcs / carton box |
| Delivery Time | 7days after payment |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 100,000 pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector | SC/APC Connector | Fiber Count | 12 Bunchy Fibers |
|---|---|---|---|
| Insertion Loss | <0.3 DB | Fiber Type | Single Mode 9/125UM |
| Fiber Color | Blue,pink,purple,orange,yellow,black,red,brown,aqua | Cable Diameter | 0.9MM |
| Jacket | PVC | Connector Color | Green |
| Temperature | -40~+85°C | Type | Bundle Pigtails |
| Application | ODF, Patch Panel, Terminal Box, Cabinet, FOSC | ||
| High Light | FTTH Fiber Optic Pigtail,FTTH Pigtail SC APC,G652D Fiber Optic Pigtail |
||
Product Description

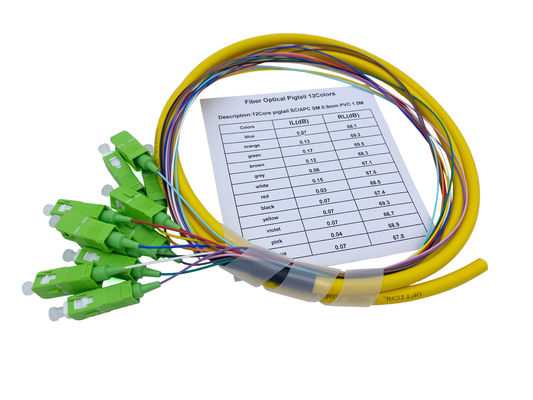

12 Cores FTTH Fiber Optic Pigtail SC APC G652D PVC 900um 1.5Mts Yellow
12 Cores SC APC Fiber Optic Bundle Pigtails G652D PVC 900um 1.5Mts Yellow FTTH Patch Panel
Optical fiber pigtails only one end has a connector, the other end is a bulkhead end of an optical fiber core, which is used for the connection between the optical cable terminal box and the equipment. One end of the pigtail is fused with the optical fiber connector, and the other end is connected with the optical fiber transceiver or optical module through the LC SC FC st connector, forming the data transmission channel.
Optical Characteristics
| Parameter | SC 0.9mm Connector | |||
| SM | MM | |||
| PC | UPC | APC | PC | |
| Insertion loss | ≤0.25dB | ≤0.25dB | ≤0.25dB | ≤0.25dB |
| Return loss | ≥50dB | ≥55dB | ≥60dB | / |
| Working wavelength | 1310nm, 1550nm | 850nm, 1300nm | ||
| Concentricity | ≤1um |
≤4um |
||
12 Cores Bundle Optical Fiber Pigtails Features
- Individual pacakge: self sealed plastic bag with air vent. Each pigtail is equipped with an English test report.
- All product will be 100% test in factory before delivery twice, and with low insertion loss, high return loss
- Conforms to ANSI, Bellcore,TIA/EIA,IEC,etc International and domestic standards
- OEM or with customer logo on the plastic bag is acceptable.
- 12 Colors: blue, orange, green, brown, gray, white, red, black, yellow, purple, pink, light blue.
- Cable can print customer name or infomration which customer need to show, meet OEM.
- If need add connectors, should strip the outer jacket by CFS miller stripper, then heat shrink with a protection tube to protect the fibers from broken or twisting off or injury, good bending properties.
- Optic pigtails use ceramic ferrule, angel -8 degree, Concentricity 0.5 or 1, Three-Circle brand;
- Pre-terminated all kinds of connectors: SC LC ST FC E2000 MU MTRJ DIN D4 SMA MPO MTP, etc.
- SC House color optional: blue, green, beige, aqua, Fuchsia, lemon green (color can be customized)
- SC Boot color optional: blue, green, beige, aqua, Fuchsia, lemon green (color can be customized)
- SC Boot length optional:15mm, 20mm, 21.7mm, 22mm, 24mm, 29mm.
CABLE TYPE ==== Distribution Tight Buffer Optical Cable(GJFJV)
| Technical Parameters: | |||||||||||
| Cable Count | Outside Diameter |
Tight buffer Diameter |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
||||
| (MM) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (℃) | ||
| 02 | 3.0 | 0.9 | 15.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 04 | 4.0 | 0.9 | 22.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 06 | 4.0 | 0.9 | 23.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 08 | 5.0 | 0.9 | 27.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 10 | 5.5 | 0.9 | 30.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
| 12 | 6.0 | 0.9 | 35.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 | |
Application
- Telecommunication network
- Fiber to the home (FTTH)
- Optical fiber communication system
- Telecommunication network and cable TV
- Activation device and optical fiber infectious device
- Local area network (LANs)
- Wan
- Optical access network (OAN)
- Testing instrument
- Optical data transmission (FODT)
- Active device terminal
- Data center
- Medical, subway, ship, aircraft, military
