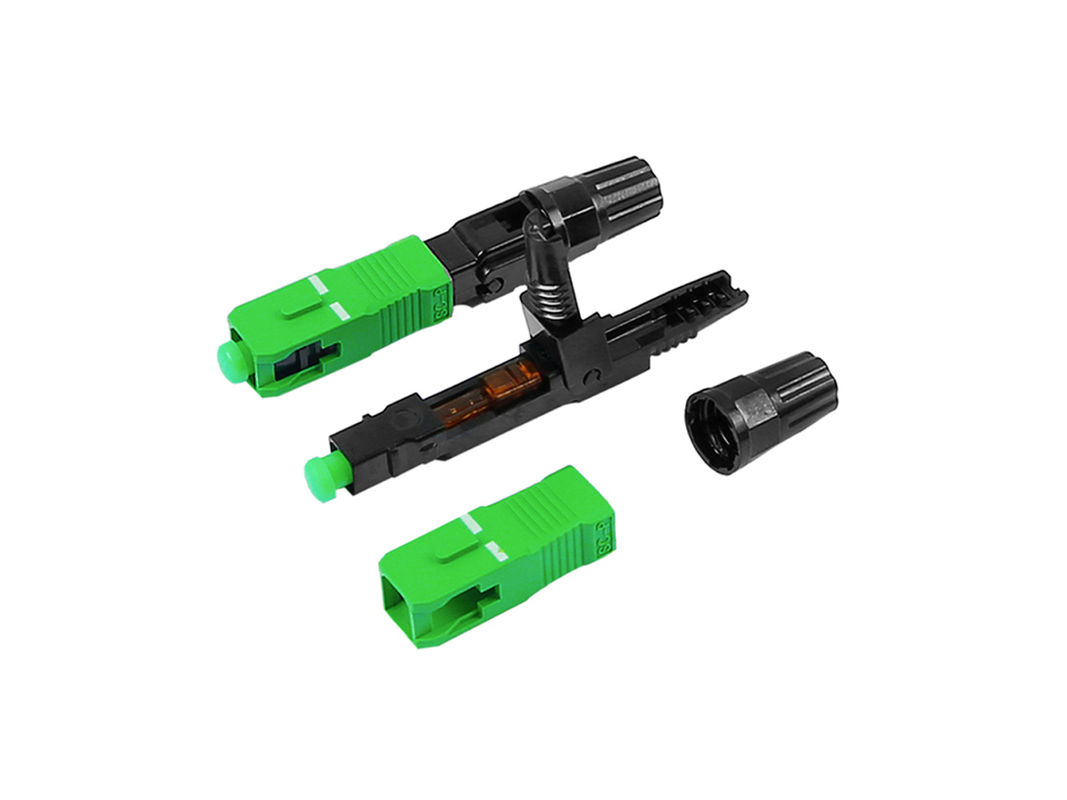

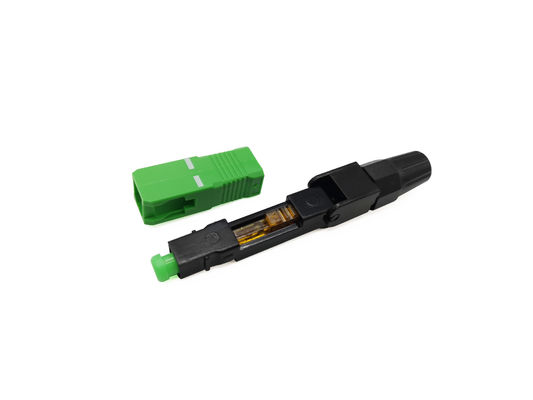

Green SC APC Field Mount Connector Single Mode No Epoxy For FTTB FTTC

Green SC APC Field Mount Connector Single Mode No Epoxy For FTTB FTTC

  • High Light

    SC APC Field Mount Connector

    ,

    FTTC Field Mount Connector

    ,

    FTTC fiber fast connector

  • House Color
    Green
  • Length
    60mm/ 55mm
  • Fiber Mode
    Single Mode / Nomomode
  • Insertion Loss
    Average <0.3dB, Standard <0.5dB
  • Return Loss
    >60dB
  • Ferrule Type
    APC Angel 8
  • Package
    Plastic Box
  • Spare Parts
    Length Fix Tool, English User Manual
  • Applicable
    FTTX, FTTB, FTTC, ODN Networks
  • Cable Applicable
    2.0*3.0mm Flat Cable, 2.0mm,3.0mm Soft Cable
  • Tools Needed
    Fiber Cleaver, Cable Stripper, Alcohol Cloth, Miller Plier
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    YDFIC-D-SA
  • Minimum Order Quantity
    1000pc
  • Price
    negotiable
  • Packaging Details
    10pc/blister box
  • Delivery Time
    7working days
  • Payment Terms
    T/T, Western Union

Green SC APC Field Mount Connector Single Mode No Epoxy For FTTB FTTC

Green SC APC Field Mount Connector Single Mode No Epoxy For FTTB FTTC



Field Installation SC Fiber Optic Fast Connector no epoxy Single Mode 2*3mm IL<0.3dB





Yingda fast SC/APC connector to be mounted on a single-mode fiber end, without time-consuming gluing and polishing. The procedure does no require "sterile" conditions, because the end face of the built-in fiber fragment has been glued and polished by the manufacturer. The low loss at the level of 0.5dB is obtained thanks to advanced positioning of the inserted fiber end by V-shaped grooves. The optical gel that is also used in the connector reduces the effects of an imprecise cut and a possible gap between the end faces of the fibers.



Due to stepped end style APC ferrule (8 degrees), SC/APC connectors ensure lower back reflection, it can connected with 2.0*3.0mm cable or 2.0*1.6mm flat cable, which providing a decent quality without using expensive tools and maintaining special conditions.



Technical parameter:

Model YDFIC-D-SA-L YDFIC-D-SA-S
Dimension 60mm*9mm 55mm*9mm
Insertion loss <0.5dB, average≤0.3dB
Return loss ≥50dB
Fiber type Single mode, multimode
Fiber diameter 0.9mm, 2.0mm, 3.0mm, 2.0*3.0mm
Working temperature -40 ~+750C
Application Fiber to the home
Dimension 60mm*9mm 55mm*9mm
Standards ISO9001



Connector Structure:

Green SC APC Field Mount Connector Single Mode No Epoxy For FTTB FTTC 0

There are 2 length to choose, difference like below:

Green SC APC Field Mount Connector Single Mode No Epoxy For FTTB FTTC 1



Product Features:



Green SC APC Field Mount Connector Single Mode No Epoxy For FTTB FTTC 2

Telecom standard mechanical connectors adopt brand new high-performance PEI material, it has good high temperature stability, high toughness and strength, good flame retardant performance, mechanical performance and wear resistance, durable and stable performance.

Green SC APC Field Mount Connector Single Mode No Epoxy For FTTB FTTC 3

Calss A type Tree Circle ceramic ferrule ensure product performance stability and durability, low insertion loss and small change after long time, long life span; There is axial clamping force at the optical fiber joint. When the optical fiber is butted, the gap between the two optical fiber sections is almost zero, so the connection loss is less than 0.3dB.

Green SC APC Field Mount Connector Single Mode No Epoxy For FTTB FTTC 4

The optical fiber clamp devices are made of high-performance material PEI, which can effectively prevent the aging of the original parts, heat and low temperature resistance, and prevent loose structure inside the device. During the clamping process, the optical fiber will not move forward, and the anti vibration drop performance is excellent, which can effectively prevent the excessive loss of optical fiber connection.



Pack information:

  • Inner pack: 10pcs/blister box;
  • 100pcs/each inner box, 1000pcs / carton box;
  • length fix tool was equipped with the blister box at right, easy for operation to avoid losing.

Green SC APC Field Mount Connector Single Mode No Epoxy For FTTB FTTC 5Green SC APC Field Mount Connector Single Mode No Epoxy For FTTB FTTC 6Green SC APC Field Mount Connector Single Mode No Epoxy For FTTB FTTC 7

How to use the mechanical connector?

Green SC APC Field Mount Connector Single Mode No Epoxy For FTTB FTTC 8



How to re-use the fast connector?

Press the green house down to take it off, then can use it again.

Green SC APC Field Mount Connector Single Mode No Epoxy For FTTB FTTC 9

Quality assurance:

Four times of grinding and two times of quality inspection

    Step 1: 30um grinding

    Step 2: 9um grinding

    Step 3: 1 um grinding

    Step 4: transparent polishing

    Step 5: Optical fiber endface detection

    Step 6: Insertion loss, return loss detection



Application:



Broadband campus network, Fiber to the home, Broadband limited TV, Intelligent broadband, Fiber to the building

Green SC APC Field Mount Connector Single Mode No Epoxy For FTTB FTTC 10







Standard accessory:

  • Fiber length fix tool guide -- 1pc/100pcs/inner box
  • user manual -- 1pc/100pcs/inner box

Green SC APC Field Mount Connector Single Mode No Epoxy For FTTB FTTC 11
