60mm FTTH Field Installable Connector Quick Assembly Termination Connector

60mm FTTH Field Installable Connector Quick Assembly Termination Connector

  • High Light

    60mm Field Installable Connector

    ,

    PEI Field Installable Connector

    ,

    PEI fiber optic quick connector

  • Material
    PEI
  • Color
    Blue
  • Length
    60mm Or 55mm
  • Fiber Mode
    Single Mode
  • Insertion Loss
    <0.5dB
  • Return Loss
    >50dB
  • Ferrule Type
    Upc
  • Package
    Blister Box
  • Spare Parts
    Length Fix Tool
  • Applicable
    FTTH
  • Cable Applicable
    2.0*3.0mm Drop Cable, 2.0mm,3.0mm Round Cable
  • Tools Needed
    Fiber Cleaver, Cable Stripper, Alcohol Cloth, Miller Plier
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    YDFIC-D-SU
  • Minimum Order Quantity
    1000pc
  • Price
    negotiable
  • Packaging Details

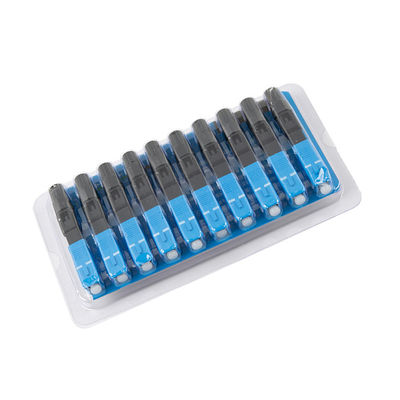

    10pc/blister box
  • Delivery Time
    7working days
  • Payment Terms
    T/T, Western Union

60mm FTTH Field Installable Connector Quick Assembly Termination Connector

60mm FTTH Field Installable Connector Quick Assembly Termination Connector





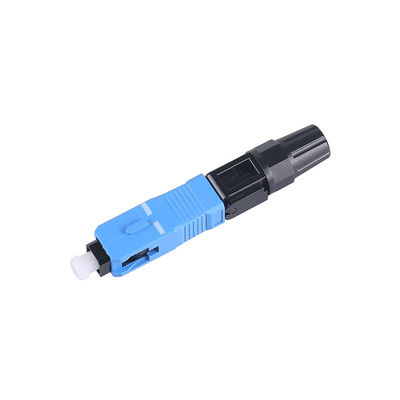

FTTH Drop Cable Blue SC Optic Fiber Field Quick Assembly Termiantion Connector 60mm





Optical fiber fast connector is a kind of connector which can solve the problem of ultra long distance wiring and fiber to the home project. It is widely used in the construction site of quick connection link, and provides a fast and stable connection during fiber optic construction. There is no need for glue curing and grinding in the field assembly, which provides a very fast and effective help for engineers on installation, maintenance and repair of fiber to the home project.



Technical parameter:

Model YDFIC-D-SU-L YDFIC-D-SU-S
Dimension 60mm*9mm 55mm*9mm
Insertion loss <0.5dB, average≤0.3dB
Return loss ≥50dB
Fiber type Single mode, multimode
Fiber diameter 0.9mm, 2.0mm, 3.0mm, 2.0*3.0mm
Working temperature -40 ~+750C
Application Fiber to the home
Dimension 60mm*9mm 55mm*9mm
Standards ISO9001

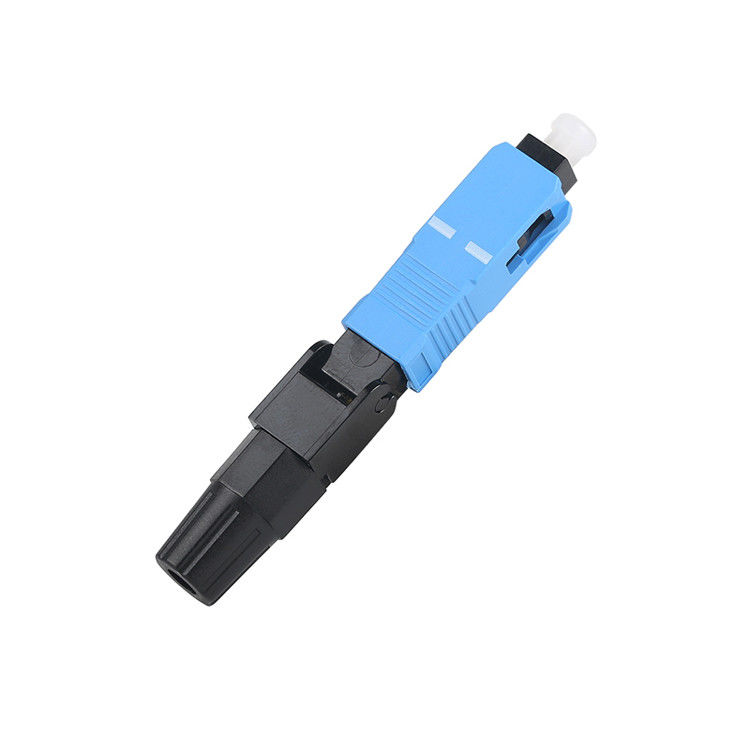

Connector Structure: 60*9mm



60mm FTTH Field Installable Connector Quick Assembly Termination Connector 0

Features

  • Each ferrule has been tested within 0.5dB of insertion loss, reach TELECOM standard;
  • Adopt Three Circle A-class ceramic ferrule, improves product stability, low loss and small change;
  • Large scale production, mature technology, exquisite, which ensure the quality of connectors;
  • It has strong practicability and can be reused for more than 15 times;
  • Stable operation performance, low insertion loss, low use cost, low maintenance rate and fast installation speed;
  • Each 100pcs will equip with 1pc length fixing device;
  • Humanized structure design: preset limit point of drop cable at the boot, and automatically generate a small micro bend according to the correct cutting length of the product (see below figure). The micro bend indicates that the optical fiber has been in good contact with the embedded optical fiber, and the micro bend must exist, but not too large, otherwise the loss during the period will be affected.

60mm FTTH Field Installable Connector Quick Assembly Termination Connector 1

the connector tail is screw nut,after screw off, the boot can be flip up, after the drop cable insert, then can quickly press it down to tighten the cable with screw nut.

60mm FTTH Field Installable Connector Quick Assembly Termination Connector 2

The fast connector with high quality A class three-circle ceramic ferrule, which improves product stability, ensure long time low loss

and small change; ferrule can be UPC or APC.



60mm FTTH Field Installable Connector Quick Assembly Termination Connector 3

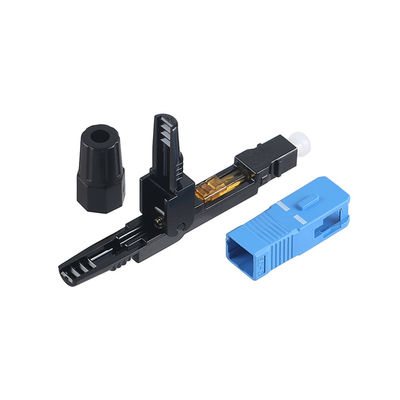

The connector V groove is plastic, with pre-polished, pre-grinding embedded fiber inside, there is clear cable fixtion slot.

The fiber clamp devices are made of high-performance materials PEI, which can effectively prevent the aging of the original components, and the internal structure with anti loose structure can effectively prevent the occurrence of excessive fiber connection loss.







What is the difference of long and short type?

The long type is flat to lay the drop cable and the short type is vertical to lay the drop cable

60mm FTTH Field Installable Connector Quick Assembly Termination Connector 460mm FTTH Field Installable Connector Quick Assembly Termination Connector 5

Application:



Broadband campus network, Fiber to the home, Broadband limited TV, Intelligent broadband, Fiber to the building

60mm FTTH Field Installable Connector Quick Assembly Termination Connector 6



HOW TO USE?



1. Make sure the switch is fully opened downward, insert the optical fiber and push it to the limit point

2. Keep slight bending and tighten the nut first

3. Stripping switch

4. Put on the blue sheath and assemble it

60mm FTTH Field Installable Connector Quick Assembly Termination Connector 7



HOW TO RE-USE?

Put on the dust cap, press the blue house and push it down, push the switch to the off position, and screw off the nut to complete the loading and unloading.

60mm FTTH Field Installable Connector Quick Assembly Termination Connector 8
