ESC250D SC APC Field Fast Assembly Mechanical Connector FTTH for Drop Cable 2*3mm Green

ESC250D SC APC Field Fast Assembly Mechanical Connector FTTH for Drop Cable 2*3mm Green

  • Material
    ABS
  • Color
    Green
  • Fiber Type
    Single Mode G657A1
  • Ferrule
    APC 8 Degree
  • Insertion Loss
    <0.5dB, Average 0.3dB
  • Package
    1pcs/bag,100pc/big Bag, 1000pcs/carton Box
  • Fiber Count
    1core
  • Cable Type
    2*3mm Or 2*1.6mm Drop Cable
  • Fiber Length
    55mm
  • Ferrule Mode
    UPC APC
  • Place of Origin
    china
  • Brand Name
    YINGDA
  • Certification
    ISO
  • Model Number
    ESC250D APC
  • Minimum Order Quantity
    1000pcs
  • Price
    negotiable
  • Packaging Details
    1pc/bag, 1000pcs in a carton box
  • Delivery Time
    7 working days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    1000000pcs per month

ESC250D SC APC Field Fast Assembly Mechanical Connector FTTH for Drop Cable 2*3mm Green

ESC250D SC APC Field Fast Assembly Mechanical Connector FTTH for Drop Cable 2*3mm Green





The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector, mechanica connector) is a revolutionary field installation optical fiber connector that requires no epoxy and no polishing.



The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this on-site assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH.

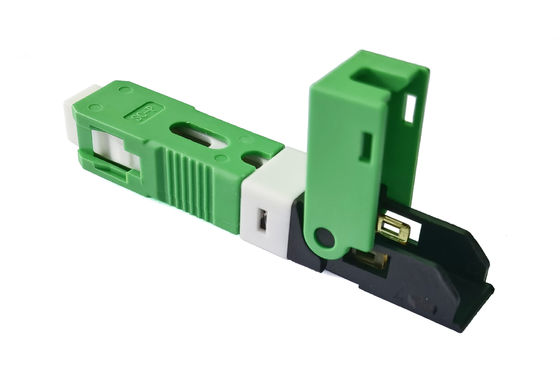

ESC250D SC APC Field Fast Assembly Mechanical Connector FTTH for Drop Cable 2*3mm Green 0

Features

  • Linkage structure design, and equipment, connector connection, reserved micro-bend to remain unchanged;
  • Double V groove structure design, high stability and reliability of fiber connection;
  • Core structure: adopt the normally closed flexible locking structure, excellent optical performance;
  • Applied to 2.0mm × 3.0mm & 2.0mm × 1.6mm drop cable;
  • Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance.
  • Widely used in FTTH network

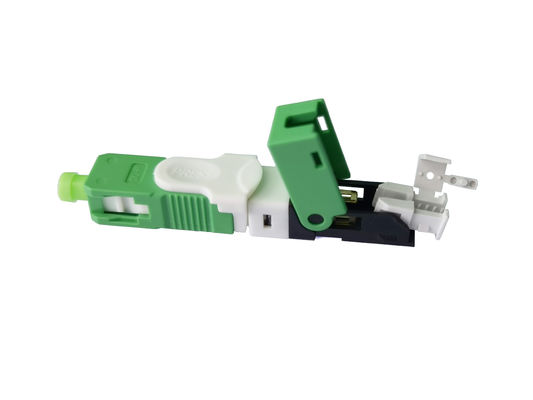

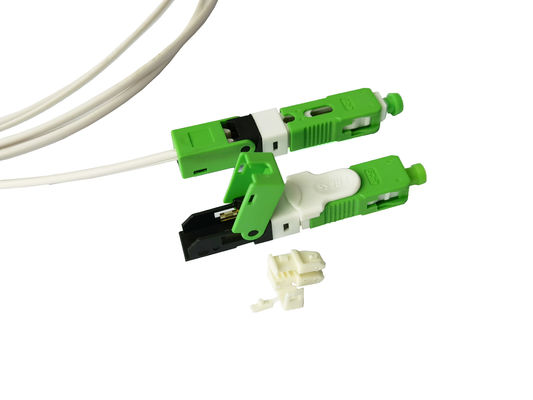

ESC250D SC APC Field Fast Assembly Mechanical Connector FTTH for Drop Cable 2*3mm Green 1ESC250D SC APC Field Fast Assembly Mechanical Connector FTTH for Drop Cable 2*3mm Green 2

Specification

Item Unit UPC APC
Model   ESC250D/UPC ESC250D/APC
Insertion loss dB ≤0.25 ≤0.3
Return loss dB ≥50 ≥55
Tensile strength N/2min >30
Work temperature 0C -40~+85
Repeatability dB ≤0.2
Repeated assembly times ≥10
Mate-demate times ≥500
Cable type mm 2.0×3.0 & 2.0×1.6 drop cable
Product dimension mm

52*9*8.1



ESC250D SC APC Field Fast Assembly Mechanical Connector FTTH for Drop Cable 2*3mm Green 3




ESC250D SC APC Field Fast Assembly Mechanical Connector FTTH for Drop Cable 2*3mm Green 4ESC250D SC APC Field Fast Assembly Mechanical Connector FTTH for Drop Cable 2*3mm Green 5ESC250D SC APC Field Fast Assembly Mechanical Connector FTTH for Drop Cable 2*3mm Green 6



Finally, we can offer many kind of fast mechanical connectors which is quite popular at home and abroad, if any interested, please send us mail at sales@yingdapc.com.
