Black Fiber Optic Cable Joint Box FTTH PP SC/APC Filed Assembly Quick Connector IP68

Black Fiber Optic Cable Joint Box FTTH PP SC/APC Filed Assembly Quick Connector IP68

  • High Light

    fiber optic cable junction box

    ,

    fiber optic cable joint box

  • Material
    PP+ GF (Glass Fiber)
  • Color
    Black
  • Ip Grade
    IP68
  • Mounting Method
    Wall Mount / Pole Mount
  • Cable Port
    1 Oval Prot, 8 Ports For Fast Connectors With Drop Cable
  • Max Fusion
    1splice Tray 12 Cores
  • Box Type
    1*8 Plc Splitter Box
  • Max. Splitter
    1 To 8 Fiber Optic Splice Box
  • Feature
    Fast Connector Distribution Box
  • Application
    Ftth Mini Splice Enclosure
  • Place of Origin
    china
  • Brand Name
    yingda
  • Certification
    ISO
  • Model Number
    GJS-0208S
  • Minimum Order Quantity
    100 pcs
  • Price
    negotiable
  • Packaging Details
    1pc / box, 4pcs / master box
  • Delivery Time
    10-15days
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram

Black Fiber Optic Cable Joint Box FTTH PP SC/APC Filed Assembly Quick Connector IP68

FTTH PP Mini Fiber Cable Joint Box 1:8 Optical Splitter SC/APC Filed Assembly Quick Connector



12 Cores FTTH Mini Dome Fiber Optic Cable Splice Closure is quick installed and reliable sealed closure.

With engineering plastic in scientific formula, injection-molding, and excellent mechanical strength, it can prevent

aging effectively caused by cold, hot, oxygen, UV etc.With flame retardant,waterproof, anti-vibration and anti

impact box, the closure could protect the optic cable joints from tensile ,impact,bending,flattening, twisting,

and axial compression. All the sealing accessories qualified in the viscosity and white ants resistance test.

Reliable sealing performance, convenient for repeated use.



Specification

Model Tray capacity Dimension/mm Entry port & Available cable dia. Raw material
GJS-0208S 12cores 183*182 1 oval port : Ф10-Ф16
8 pcs SC adapter ports for drop cable
Dome & base :
Modified P.P
Tray: ABS
Sealing method Full Mechanical sealing way. Application Wall or pole mount
Bending Radius > 40mm Durability 25 years
Available Splitter 1 piece 1:8 / 2:8 micro PLC splitter



FTTH Fiber Terminal Box features

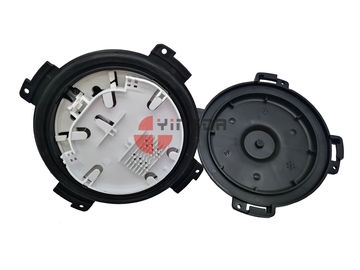

1. the top layer is for fusion and splitter input fix.

it is small size, light weight, large capacity:12cores for fusion ,can hold 1pc 1 to 8 plc splitter in the fusion splice tray, and there is SC adapter holder to fix the input of the splitter, you can put the splitter steel tube in the tray too.

enough space for fiber stroage and management.

Black Fiber Optic Cable Joint Box FTTH PP SC/APC Filed Assembly Quick Connector IP68 0Black Fiber Optic Cable Joint Box FTTH PP SC/APC Filed Assembly Quick Connector IP68 1

2.  the second layer down the fusion splice tray is for fiber optic cable management area with clamps, and you can fix the steel tube of the splitter in the white clip.

at bottom of the box, it is 8pcs SC adapter ports, and there is metal cable rix rods for entry feeder cable (mid span express port), with rubber seal for IP65 waterproof grade.

Black Fiber Optic Cable Joint Box FTTH PP SC/APC Filed Assembly Quick Connector IP68 2Black Fiber Optic Cable Joint Box FTTH PP SC/APC Filed Assembly Quick Connector IP68 3

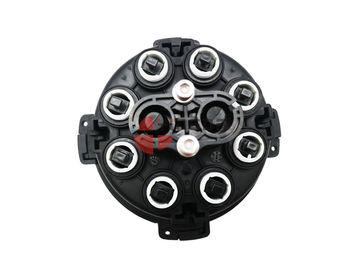

3.  Cable ports: 1 mid span cable port for uncut cable entry and exit, 8pcs SC adapter outports, you can directly use fast connector or  normal SC       connectors to finish the on-site construction, it is fast and cheap than Huawei Mini SC adapters.

    NOTE: the sc dust cap whould be sharp type, or else u can not take it off when install the adapter in the box.

Black Fiber Optic Cable Joint Box FTTH PP SC/APC Filed Assembly Quick Connector IP68 4Black Fiber Optic Cable Joint Box FTTH PP SC/APC Filed Assembly Quick Connector IP68 5

Package information:

inner with plastic bag, and wall mount pole mount kits, nylon tie, heatshrink protection sleeve, label mark, etc.

Black Fiber Optic Cable Joint Box FTTH PP SC/APC Filed Assembly Quick Connector IP68 6Black Fiber Optic Cable Joint Box FTTH PP SC/APC Filed Assembly Quick Connector IP68 7





Cable Port and fast connector waterproof plug:



Black Fiber Optic Cable Joint Box FTTH PP SC/APC Filed Assembly Quick Connector IP68 8     Black Fiber Optic Cable Joint Box FTTH PP SC/APC Filed Assembly Quick Connector IP68 9



Wiring Diagram:

Black Fiber Optic Cable Joint Box FTTH PP SC/APC Filed Assembly Quick Connector IP68 10Black Fiber Optic Cable Joint Box FTTH PP SC/APC Filed Assembly Quick Connector IP68 11
Application:
Widely used to connect or branch the outdoor optic cable fibers in aerial applications.

Fully Mechanical sealing and re-open design, available for split with fast connectors without

open the closure. Provide optional valve and earthling rod. Simple inner structured and easy

to installation, is the best choice for the network construction.



Technical Parameter:

Working temperature -40ºC~+65ºC
Atmospheric Pressure 62-106kPa
Axial Tension > 1000N/1min
Stretching Resistance >2000N/10cm² (1min)
Flatten Pressure >2000N/100mm(1min)
Insulation Resistance >2 × 104MΩ
Voltage Strength 15KV(DC)/1min,no arcover or breakdown
Temperature Cycle -40ºC~+65ºC,with inner pressure 60(+5)Kpa,cycle:10times, the decrease of pressure can't exceed 5Kpa at room temperature.



How to use the box?



Black Fiber Optic Cable Joint Box FTTH PP SC/APC Filed Assembly Quick Connector IP68 12

Black Fiber Optic Cable Joint Box FTTH PP SC/APC Filed Assembly Quick Connector IP68 13



We offer a series of 8 port, 16 ports SC fast connector exit, please click below for further information:
